Back to: Pneumatical controlled 5 way valves

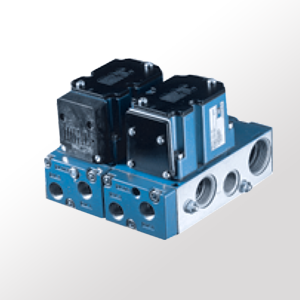

Remote air - 6300 series

• Function: 5/2 & 5/3 NO-NC
• Flow: 3000 Nl
• Port Size: 1/4" - 3/8" - 1/2"
Ask a question about this product
Description
6300 series
Product Catalog

YouTube16

Theory of Operation

Mac Valves new
6300 Series

The MAC 6300 Series is a versatile 5-way remote air operated valve with large flow capabilities.

Versatility in piping means the valve can be piped as a 5-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications.

Our one piece bonded seal spool means longer life and easy maintenance.
Function Port size Flow (Max) Mounting

5/2 - 5/3 NO-NC

 1/4" - 3/8" - 1/2"

 3000 Nl individual

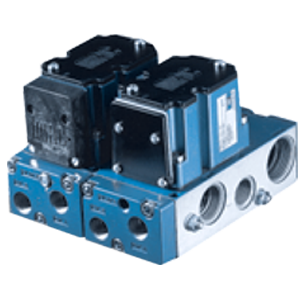

6300 Remote air Pic 30

OPERATIONAL BENEFITS

• Balanced spool, immune to variations of
   pressure

• Short stroke with high flow

• The piston (booster) provides maximum
   shifting forces

• Powerful return thank to the combination of
   mechanical and air springs

• Bonded spool with minimum friction, shifting
   in a glass-like finished bore

• Wiping effect eliminates sticking

• Low leakage rate
