36 Serie solenoid valve 1/8″ 300Nl/min

max-flow: 300Nl/min
Port sizes: 1/8"
Configurations:

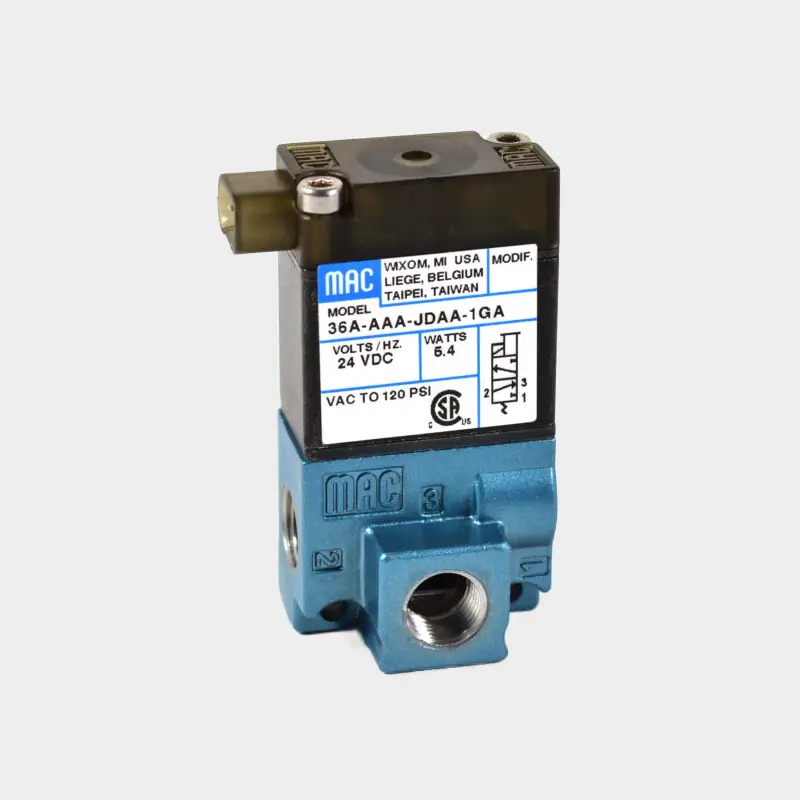

The MAC 36 Series is a direct-controlled 3-way solenoid valve with a diameter of 16 mm. It is the largest valve in MAC’s series of compact inline valves, designed for applications where high flow is required in a limited space.

With a debit of 300Nl/min, the 36 Series delivers significantly more flow than the smaller 33, 34 and 35 models, while using the same core technology: a patented oval armature, a powerful return spring and a balanced poppet design. This combination ensures fast switching times, pressure-independent operation and long life, even under heavy use.
