580 Series Temperature Sensors

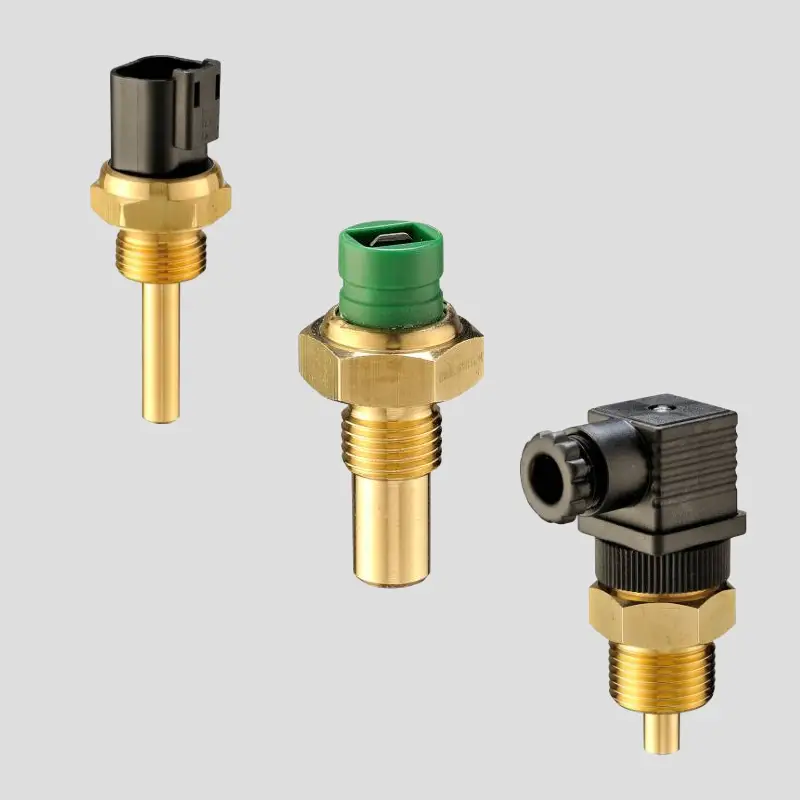

The Euroswitch 580 series temperature sensors are designed for maximum flexibility in industrial applications. This series includes multiple variants suitable for liquids, oils, fuels, and air, with a choice of NTC, PTC, PT100, and PT1000 measuring elements. Thanks to the many connection options (AMP, Deutsch, M12, DIN, Superseal, Junior Power Timer, wired, etc.) and the wide range of thread sizes, the sensor can be perfectly tailored to the application.

The sensors are made of brass or stainless steel (AISI 316L) and offer high degrees of protection (up to IP69 on request). With a temperature range of -55 °C to +150 °C (depending on model) and the option of a dual NTC/PTC version, the 580 series is an ideal choice for demanding environments.

Variants within the 580 series

• 580 – Standard temperature sensor with a wide range of electrical connectors (AMP, Deutsch, M12, Superseal, Junior Power Timer, Bajonet DIN).
• 580E – Temperature sensor with DIN connector UNI EN 175301-803 (DIN43650).
• 582 – Water temperature sensor, compact design with Faston connection, specifically for liquid measurements.
• 583 – Temperature sensor with grounded housing, for applications where ground connection is required.
• 589 – Temperature sensor with double NTC/PTC element, for redundancy or dual readout.
