Technical Data

GC2000 Series:

  • Bore sizes: 0.5 inch, 0.75 inch, 1.125 inch, 1.5 inch, 3 inch
  • Stroke lengths: 0.125 inch to 3 inch
  • Pressure range: 5 psi to 250 psi
  • Piston area: 0.2 in² to 7 in²
  • Weight: 0.16 lbs to 6.0 lbs

GC3000 and GC4000 Series:

  • Bore sizes: 12 mm, 25 mm, 40 mm
  • Stroke lengths: 10 mm to 150 mm
  • Pressure range: Pneumatic 8 bar, Hydraulic 15 bar
  • Piston area: 113 mm² to 1256 mm²
  • Weight: 0.42 kg to 4.88 kg

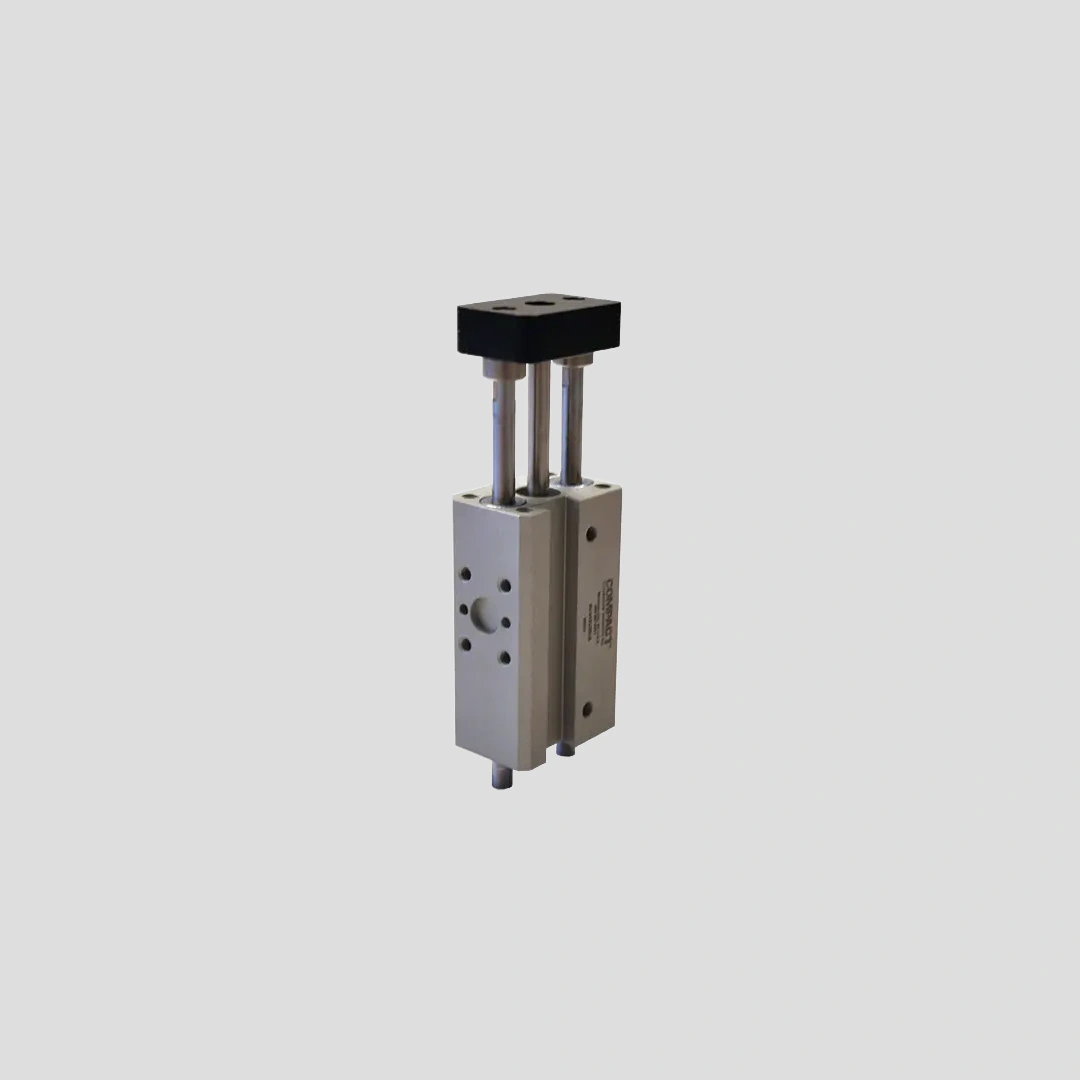

GC series guided cylinders

The GC2000, GC3000, and GC4000 Guided Cylinders offer a unique design for maximum performance in a compact and lightweight package. These cylinders are designed for short and long stroke applications, providing excellent guidance and support for their own load. They are suitable for both torsional and direct side loads.

Advantages

  • Compact and lightweight design
  • High load capacity and long life
  • Two external guide rails for better guidance and support
  • Magnetic piston for precise position sensing
  • Flexible mounting options and accessories
