Technical Data

  • Soft-Land™ function: accurate detection of surfaces with minimal force.
  • Fully programmable: independent control of position, speed, and force.
  • High cycle speed: designed for fast, repeatable movements.
  • Data feedback: real-time feedback of measurement data.
  • Encoder resolution options: standard 5 µm, optional 1 µm and 0.1 µm.
  • Robust options: IP65/67 (available with LAL95), vacuum feedthrough, reinforced guides, and force increase via 48V or double coil.
  • Cost-effective: longer service life and lower maintenance costs than pneumatic systems.

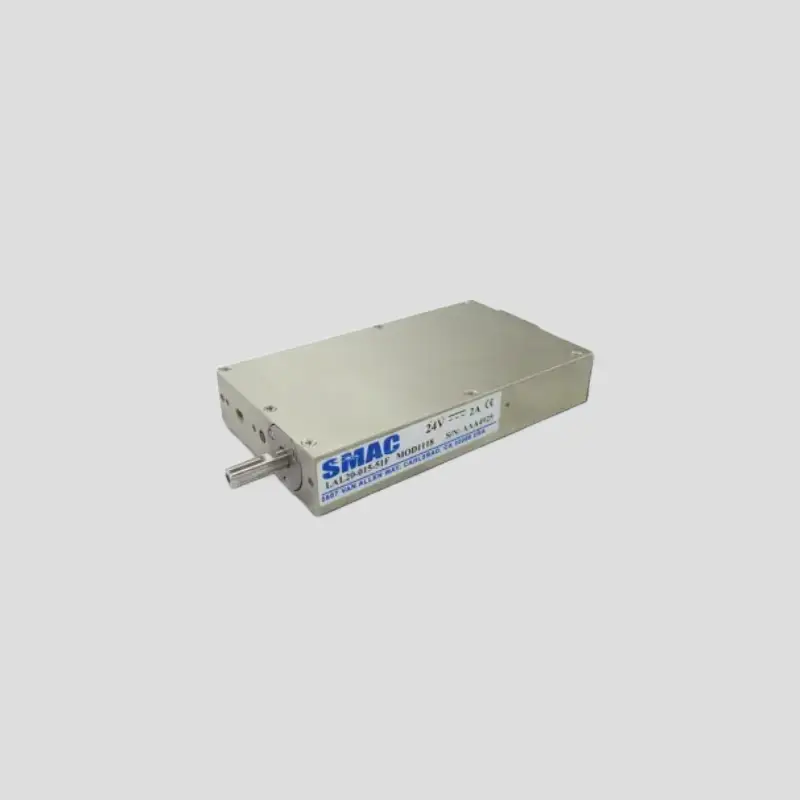

LAL Series linear actuators

The LAL Series from SMAC is a range of linear actuators with a stroke length of up to 150 mm and a peak force of up to 500 N. Like all SMAC actuators, the LAL models offer independent control of position, speed, and force, combined with Soft-Land™ functionality for precise force and position determination.

The series includes various model sizes (LAL35, LAL55, LAL95, LAL300, and LAL500) tailored to a wide range of applications in industries such as automotive, medical technology, electronics assembly, and quality control.
