Technical Data

  • Stroke (linear): 30 mm (+2/-0 mm)
  • Peak force: 11 N @ 1.5A (24VDC)
  • Force constant: 7 N/A (24VDC)
  • Operating voltage: 24 VDC
  • Operating temperature: 5°C to 40°C
  • Axial backlash error: ≤30 µm
  • Maximum torque: 0.06 Nm (brushless motor)
  • Rotary encoder resolution: 40,960 counts/rev (0.0088°)

LAR Series linear rotary actuators

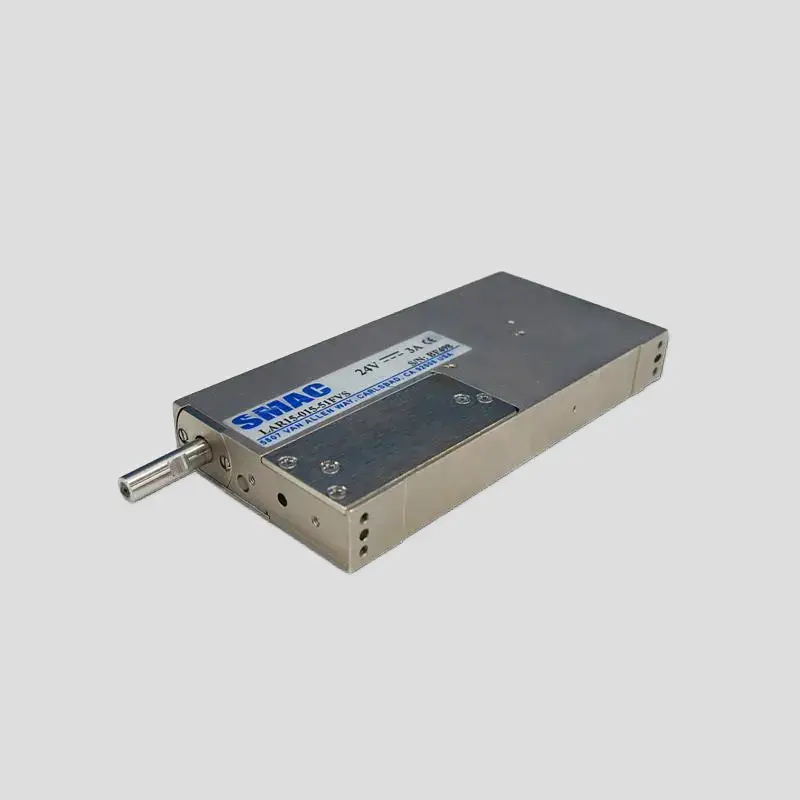

The SMAC LAR31 Series combines linear (moving coil) and rotary (brushless motor) motion in a single actuator. With a vacuum passage through the shaft and rotary motor, the LAR31 prevents dust build-up in the nozzle, eliminating common problems in sensitive environments.

With over 10,000 units sold and a service life of over 100 million cycles without maintenance, the LAR31 is a proven solution for demanding industrial applications. The actuator offers programmable force, position, and speed in all axes, making it ideal for IC handling, screwdrivers, high-resolution chip bonding, gauging, sorting, pick-and-place, orientation, and press operations.
