700 Serie solenoid valve 1/8″ – 1/4″ 800Nl/min

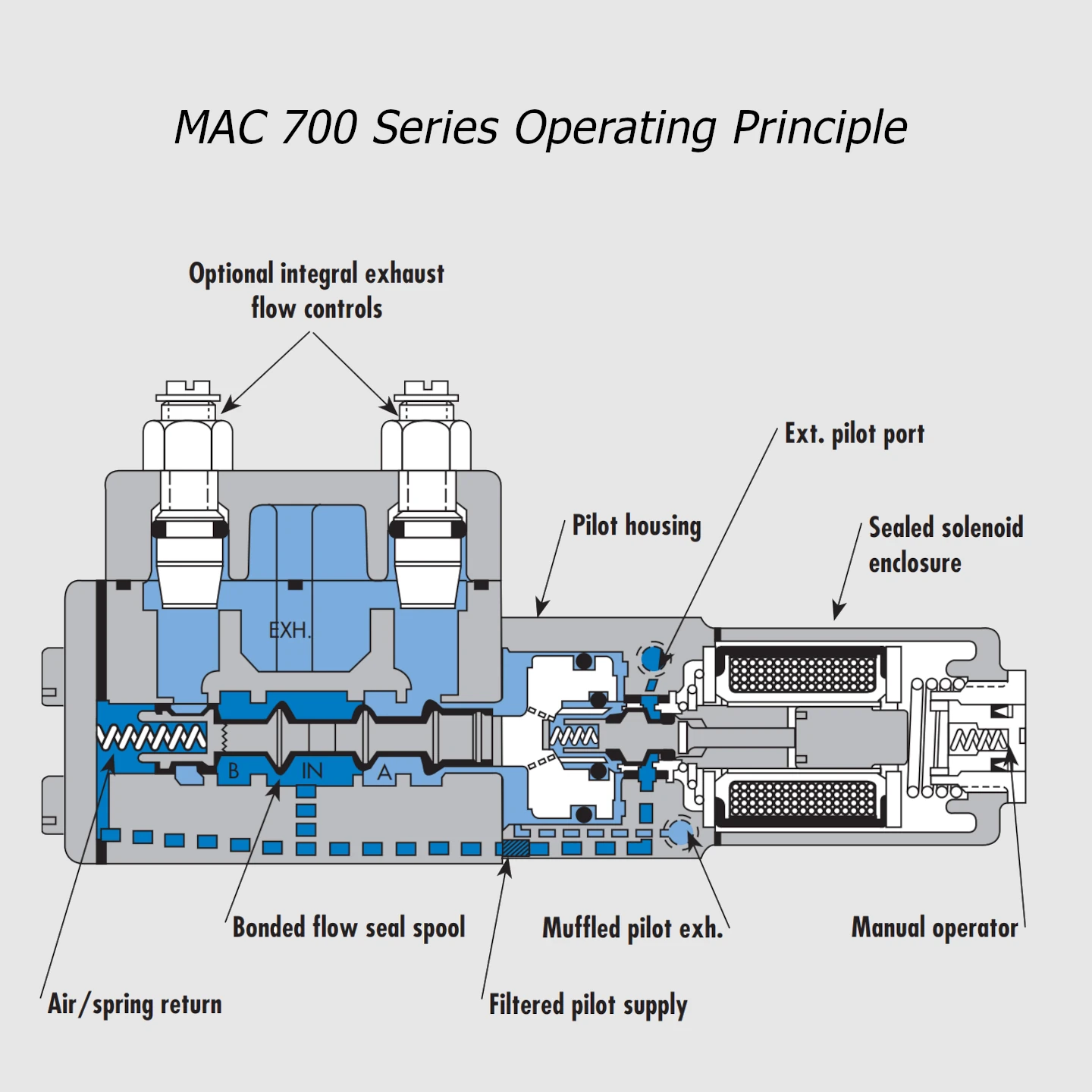

The MAC Valves 700 Series is a compact, solenoid-pilot controlled 4-way spool valve that truly amazes you with its versatility and reliability. Thanks to the balanced poppet in the pilot and air/suspension return, this valve provides constant changeover regardless of fluctuations in inlet pressure. With the innovative bonded spool technology, wear is minimized, and “jamming” is a thing of the past thanks to the integrated wiping function. With a maximum debit of 800Nl/min (700Nl/min at 1/8-inch port), it offers a high flow value in a compact size.

The MAC valves 700 Series is perfect for a wide range of applications: whether you need a 4-way, 3-way, 2-way, normally closed or normally open valve, it can also be used for vacuum, diverter or selector applications. You can choose from inline or manifold versions, plug-in or non-plug-in, and there are options for integral adjustable exhaust flow controllers.

As for voltage(s), you have a choice of 24 V DC (2.5 W or 8.5 W), 12 V DC (2.5 W or 6 W) or 110/120 V AC and 240 V AC (10.9-17.1 W), all with built-in rectifiers on the AC versions. It is modular with easy manual operation, illuminated connector options and different connectors (grommet, square, rectangular, flying leads, conduit).

– Debit: 800Nl/min

– Port sizes: 1/8″-1/4″
