S800 EU

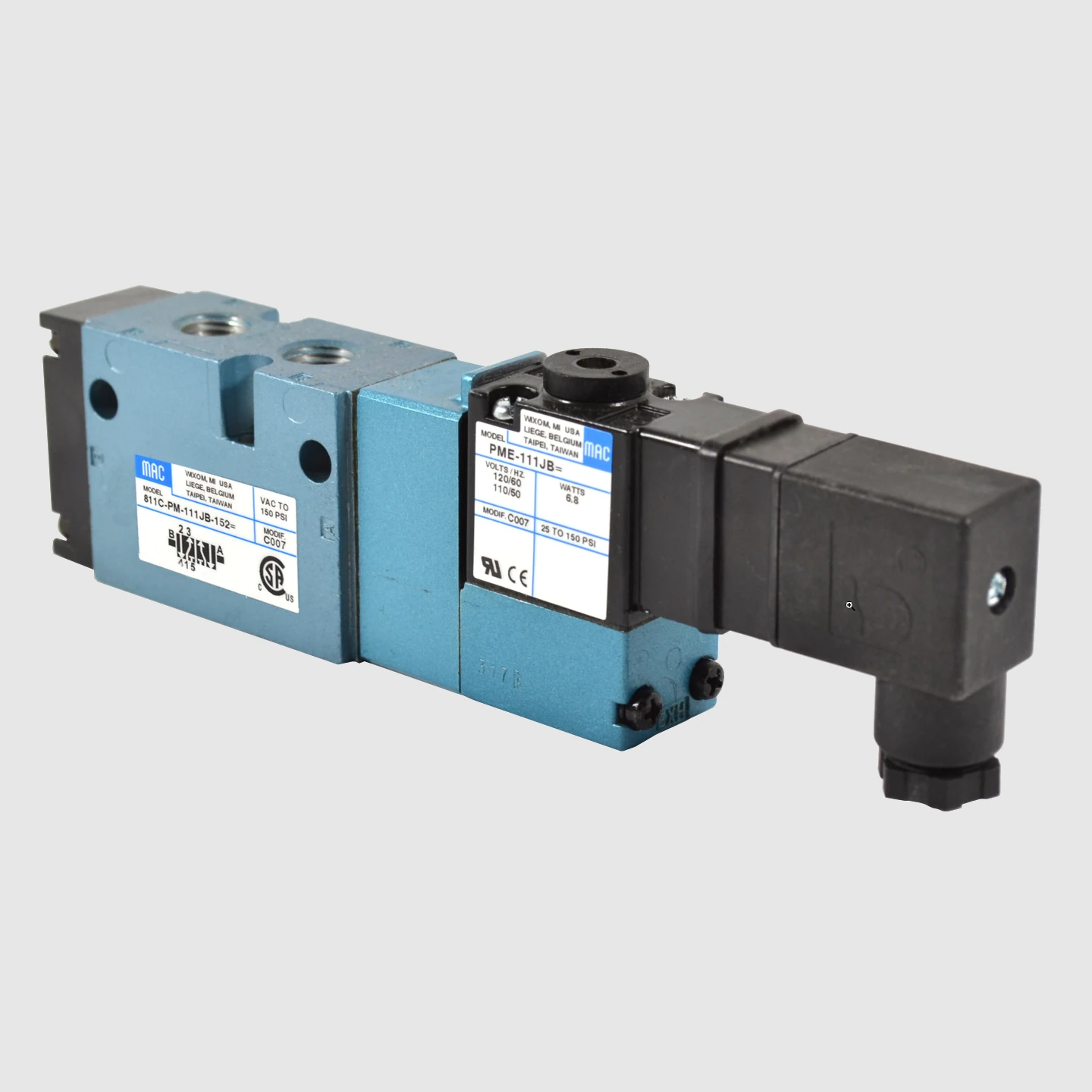

MAC 800 Series solenoid valve 5/2-5/3, 1/4”-3/8”, 1400Nl/min

Function: 5/2, 5/3
Port sizes: 1/4", 3/8"
Max. Flow: 1400 Nl/min

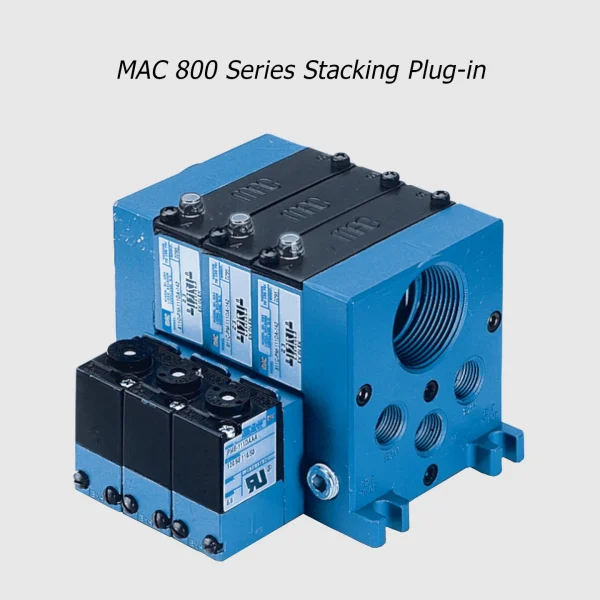

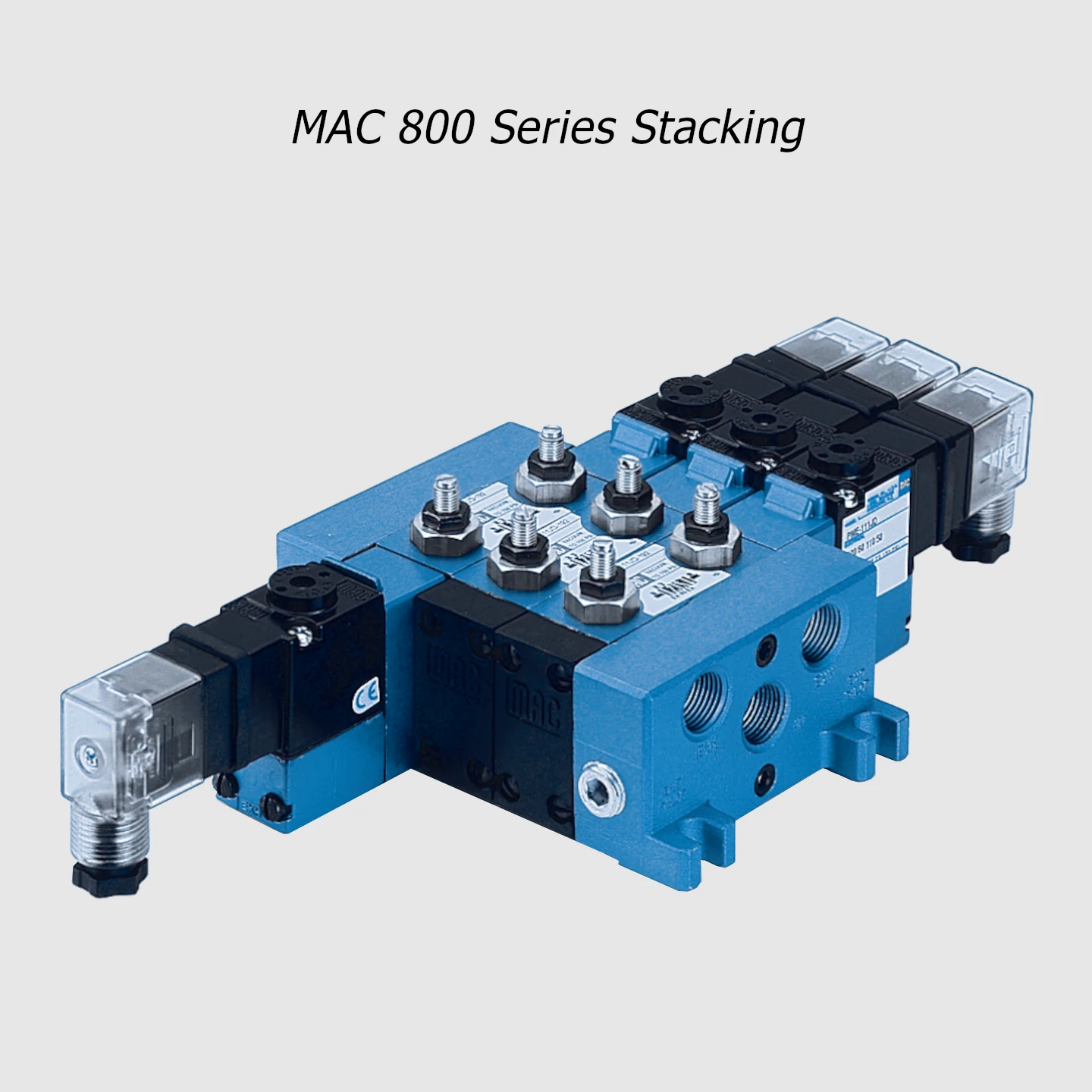

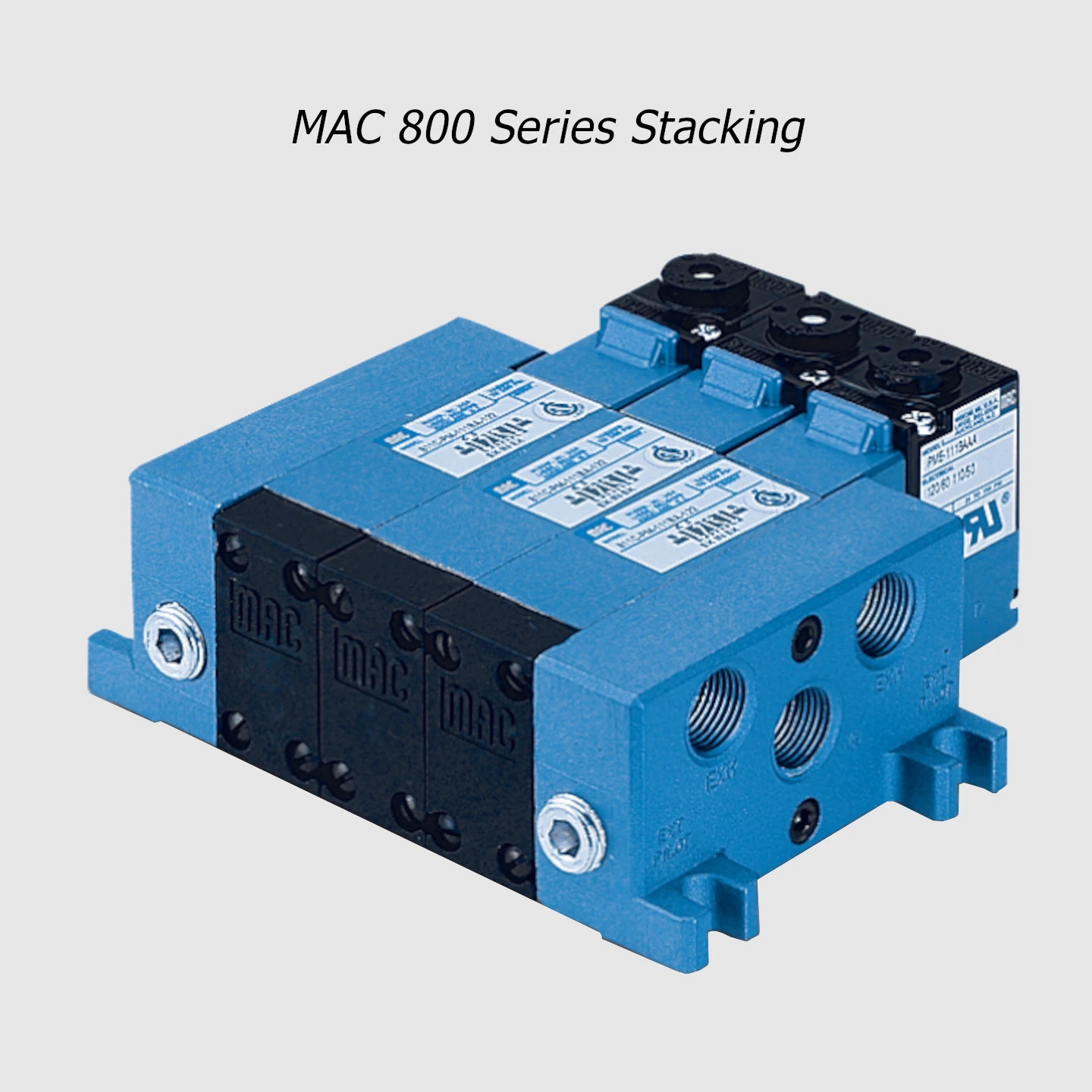

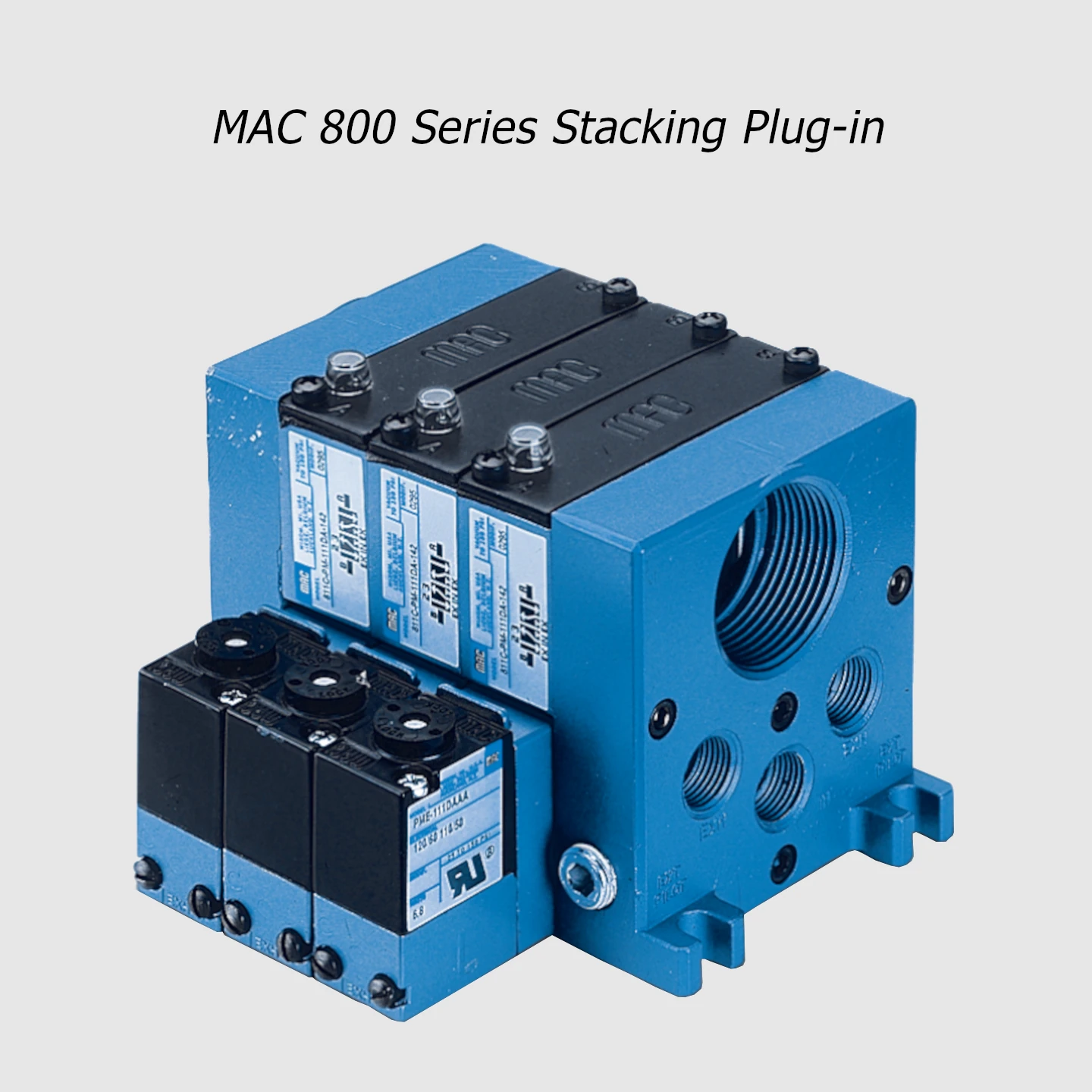

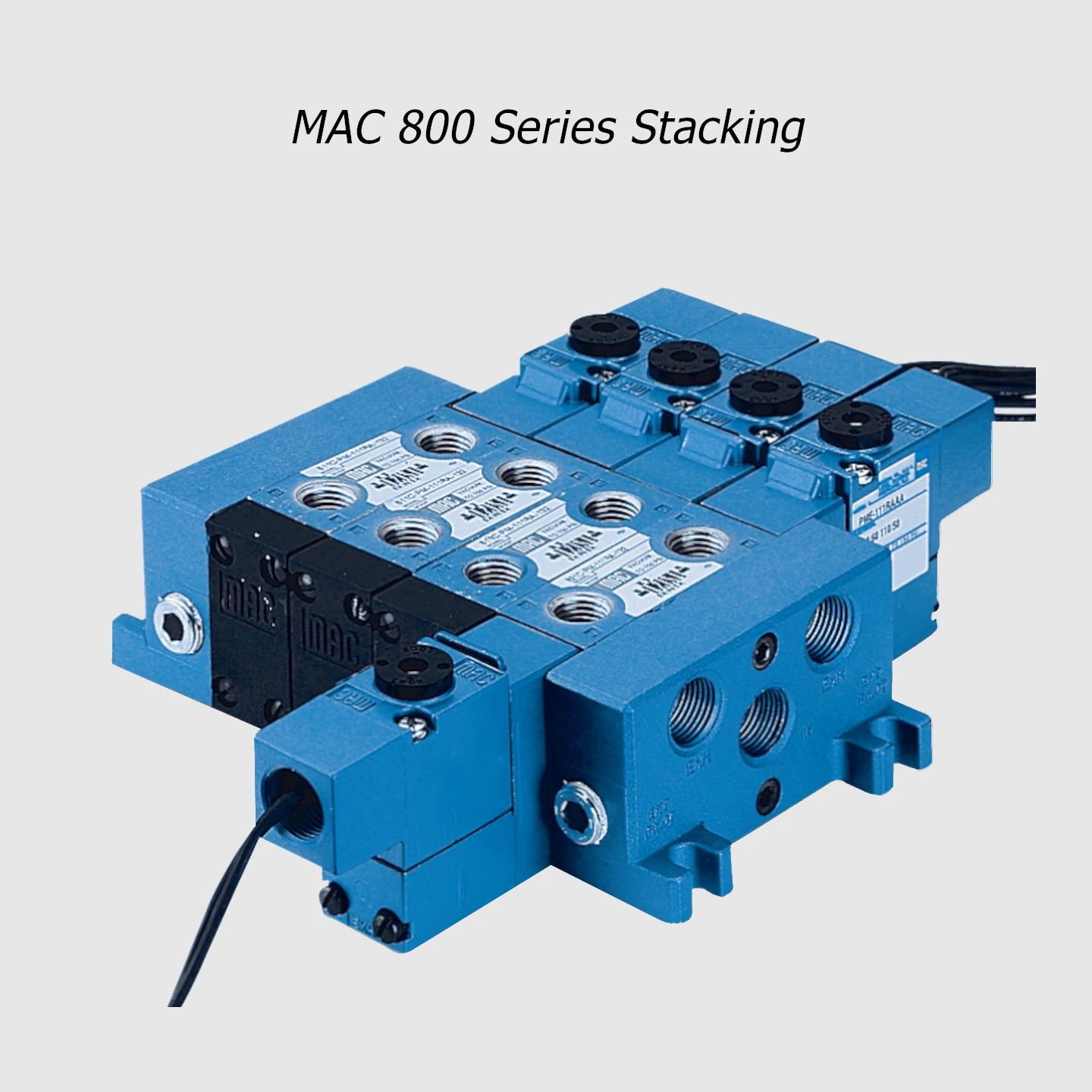

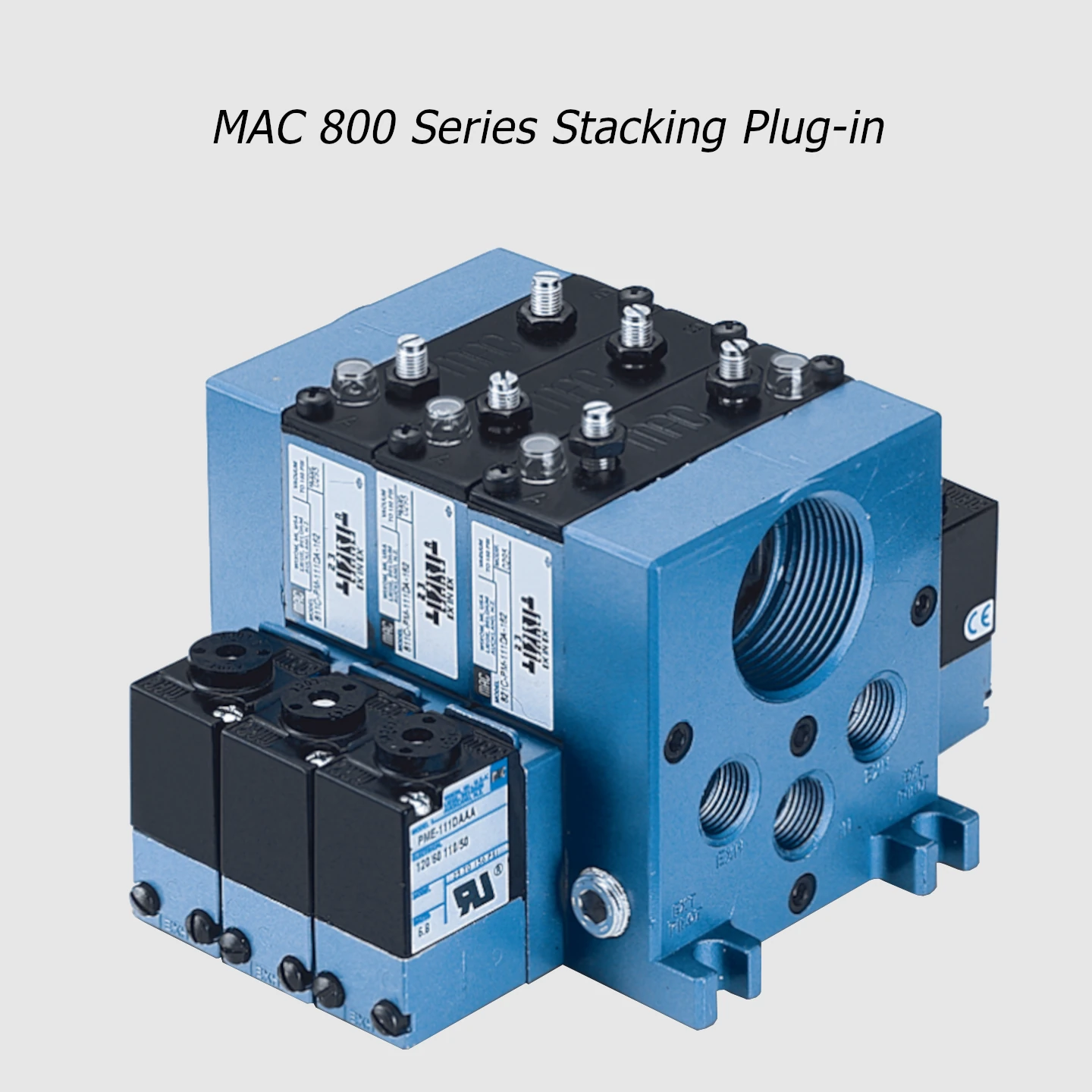

Configuraties: Indivdual, Stacking

The MAC 800 Series is a versatile 4-way solenoid piloted spool valve.

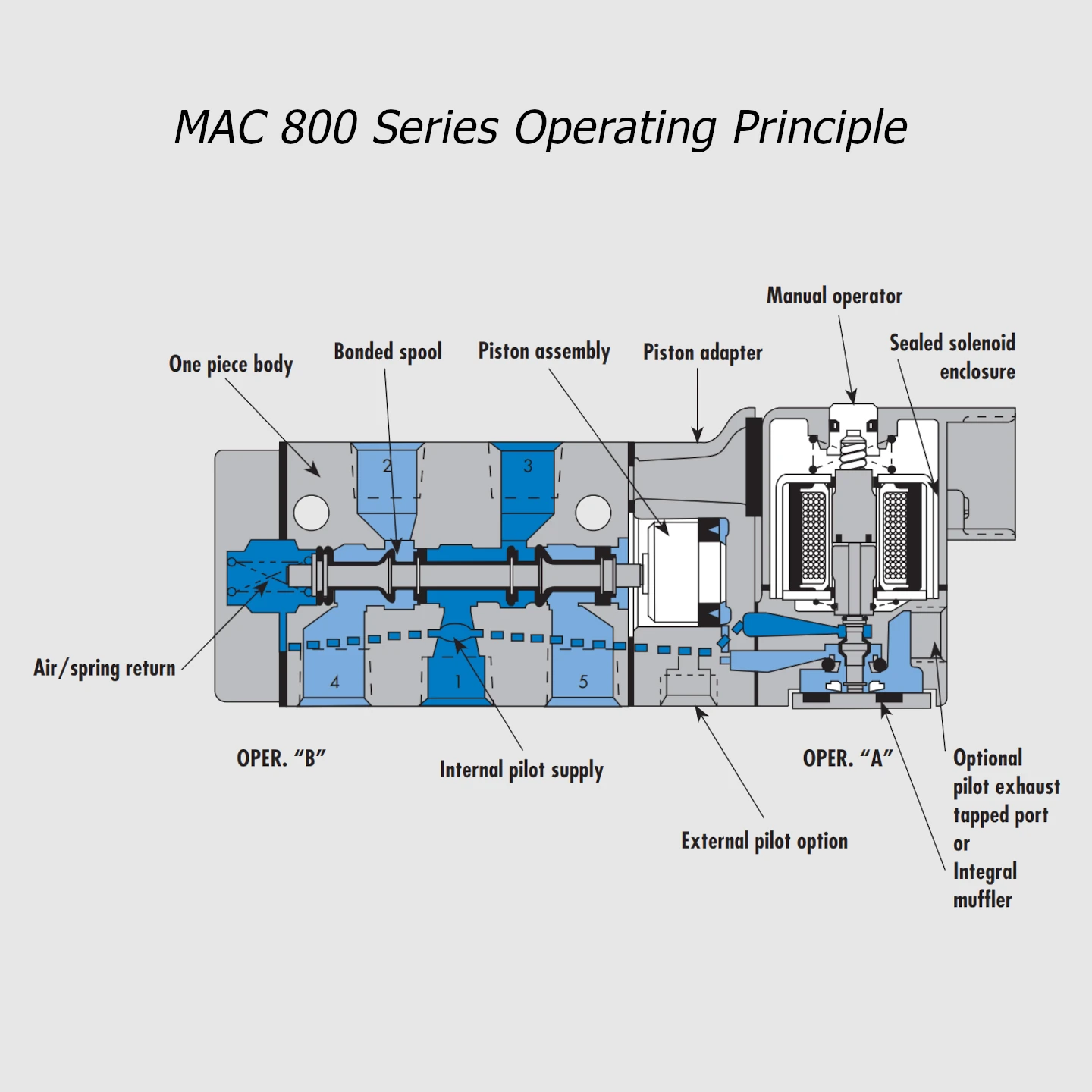

This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.  Versatility in piping means the valve can be piped as a 5-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications.  Our one piece bonded seal spool means longer life and easy maintenance.

You can choose from inline or manifold versions, plug-in or non-plug-in, and there are options for integral adjustable exhaust flow controllers.
