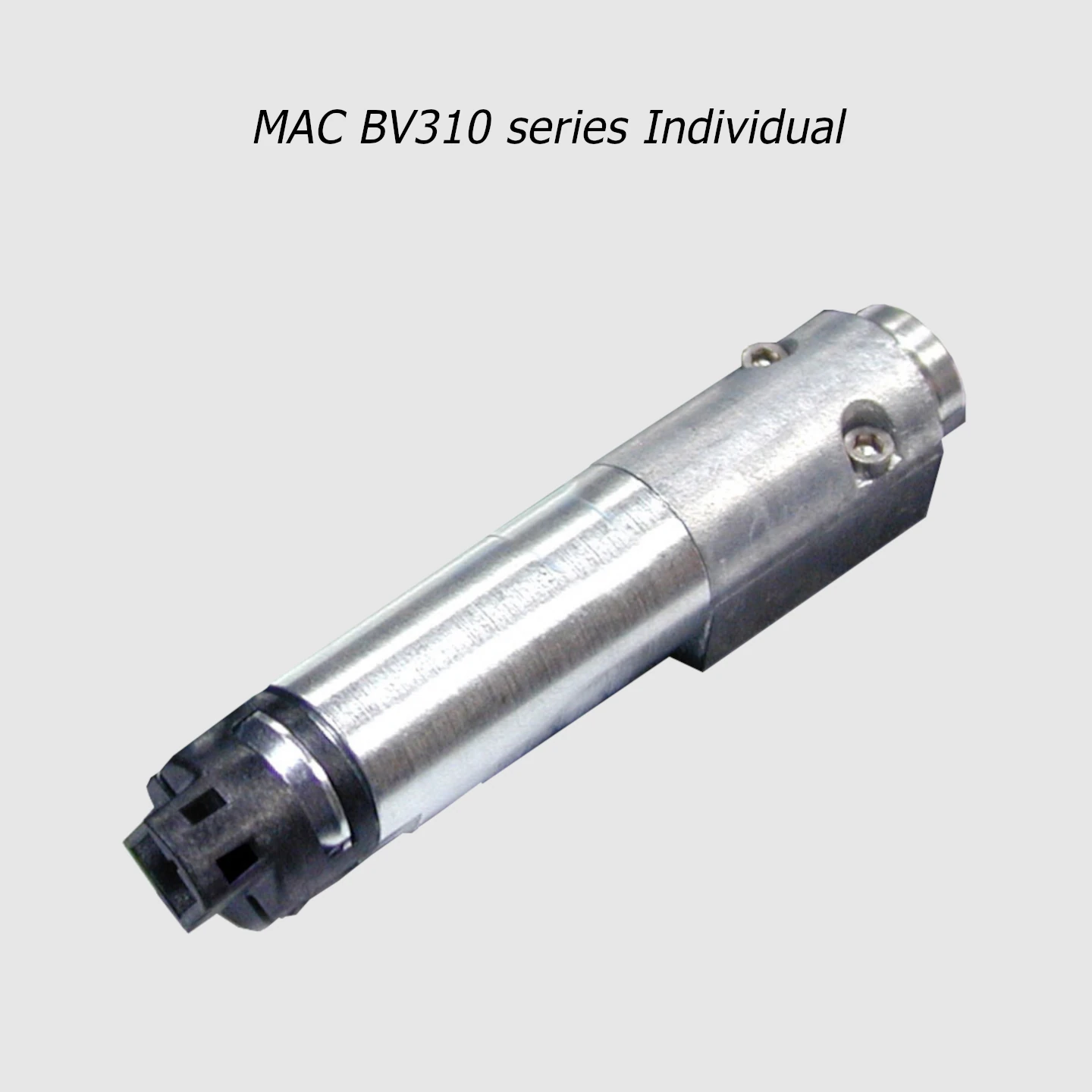

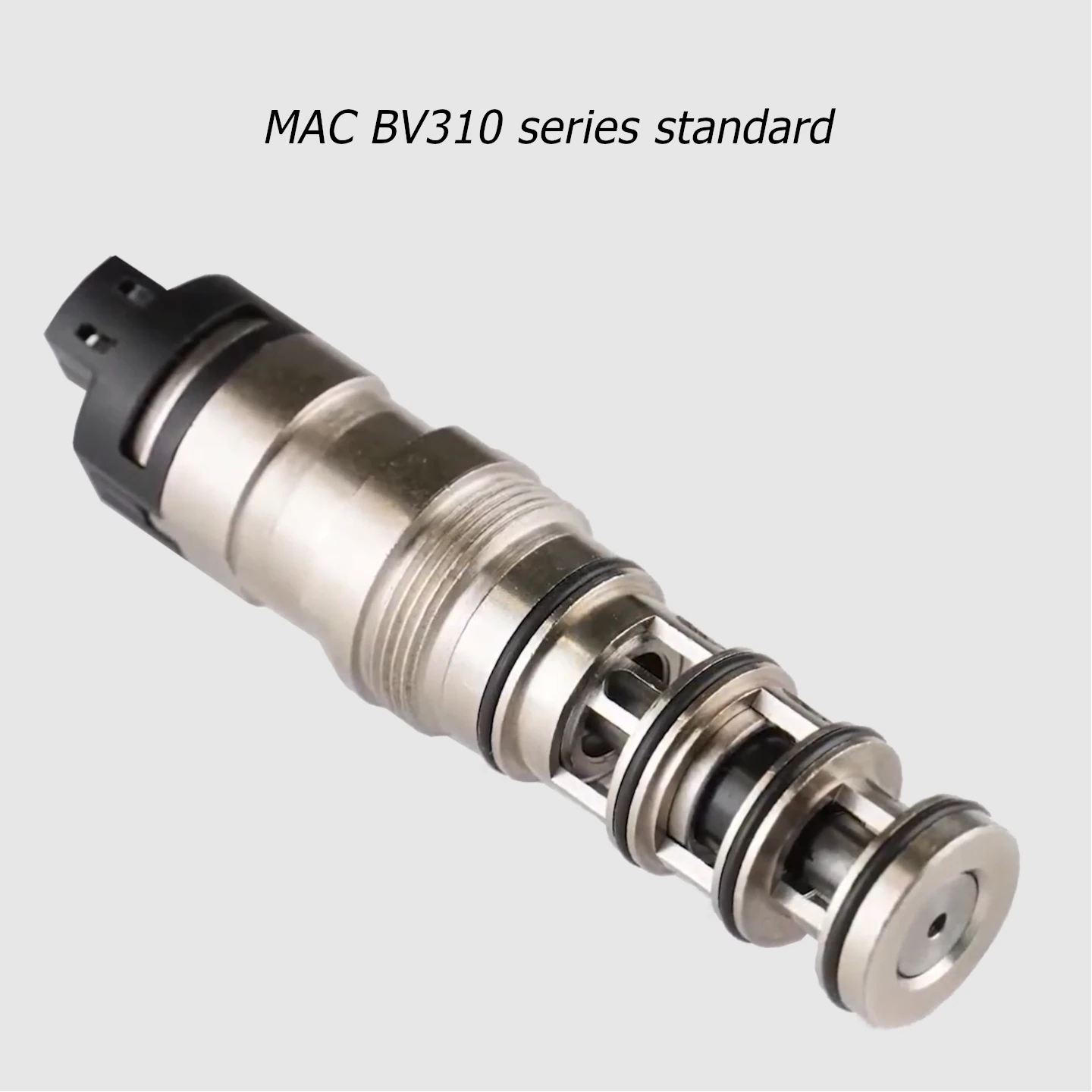

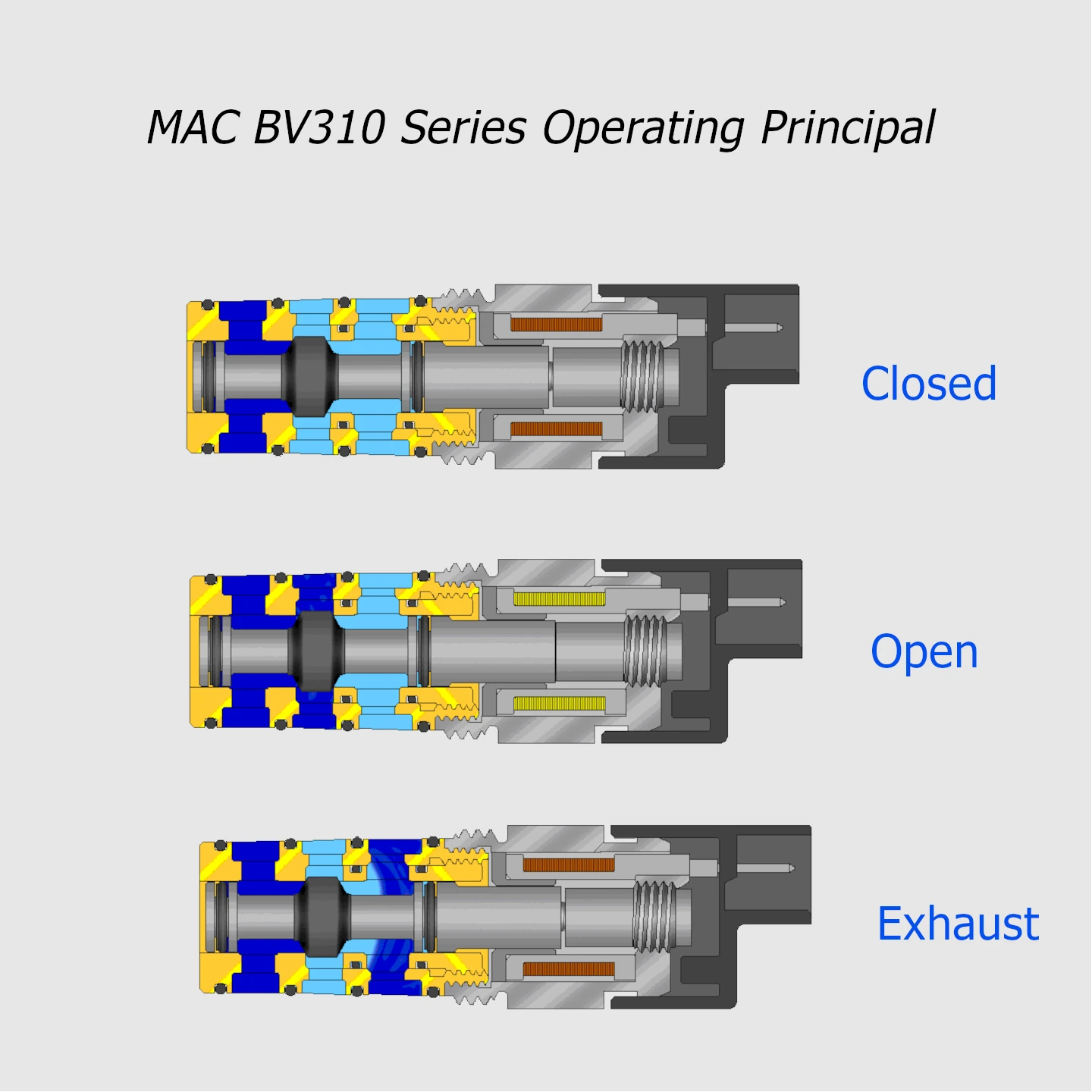

The MAC Valves BV310 is a 3 way Ø10 mm “Bullet Valve®” cartridge equipped with MAC’s unique lifting solenoid with integrated poppet/fixture. This balanced design keeps switching forces high. This ensures consistent response times regardless of variations in inlet pressure..

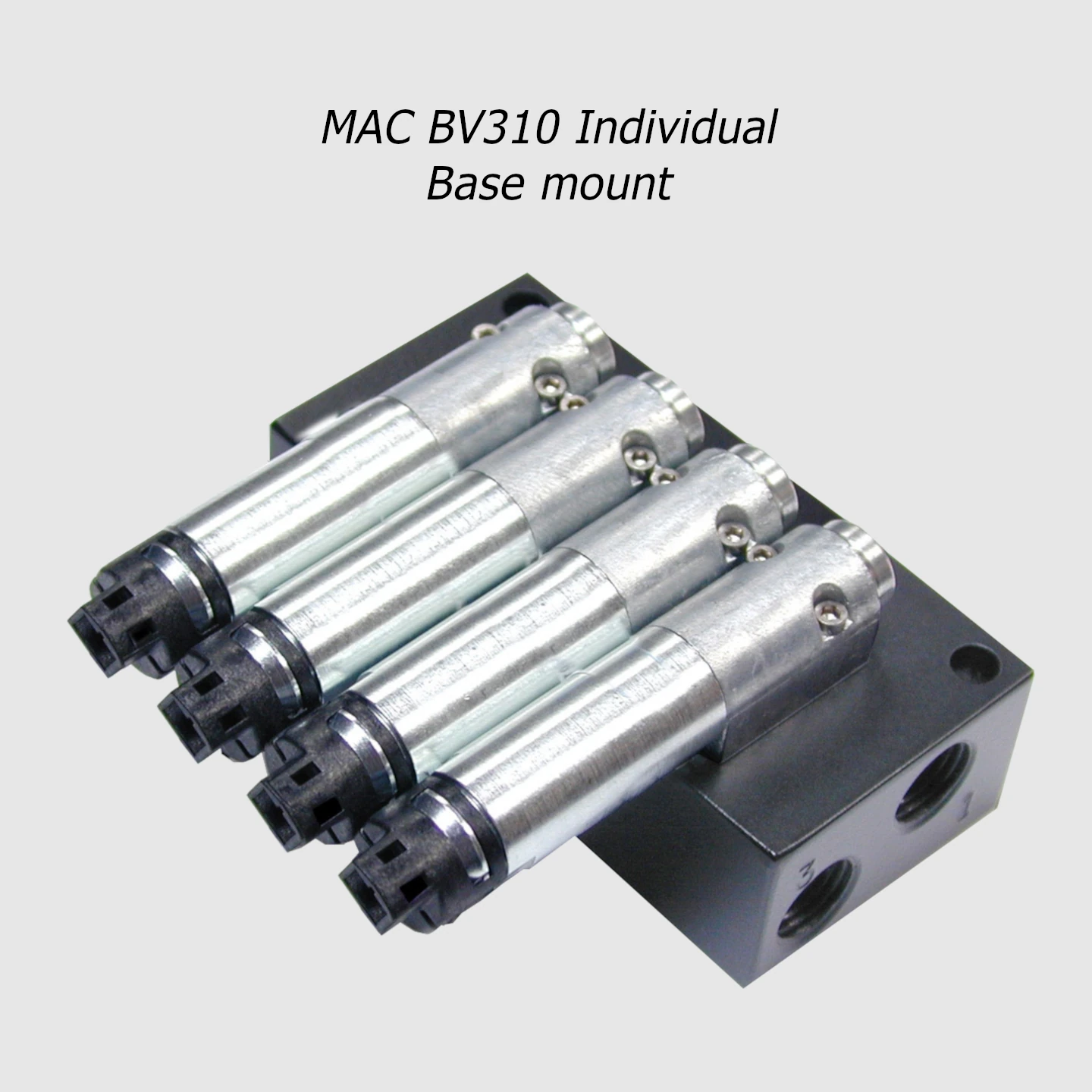

The valve has a compact number of parts which minimizes wear and makes maintenance easy. Delivery includes a Cartridge and non plug in manifold configuration for modular use.
With a flow rate up to 70Nl/min, the BV310 is ideal for applications where fast, precise air control is required in a very small size. A high-quality choice for compact pneumatic systems.

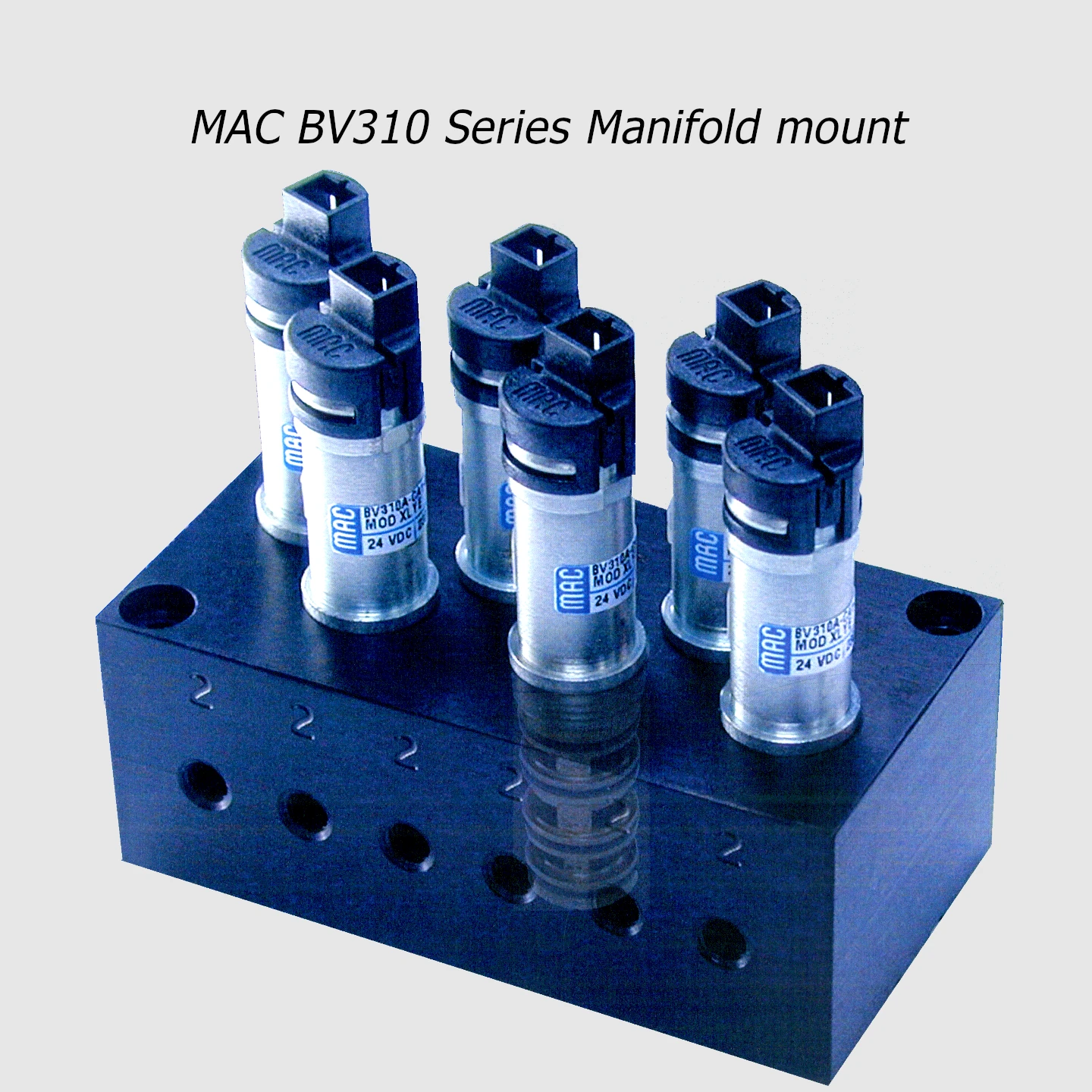

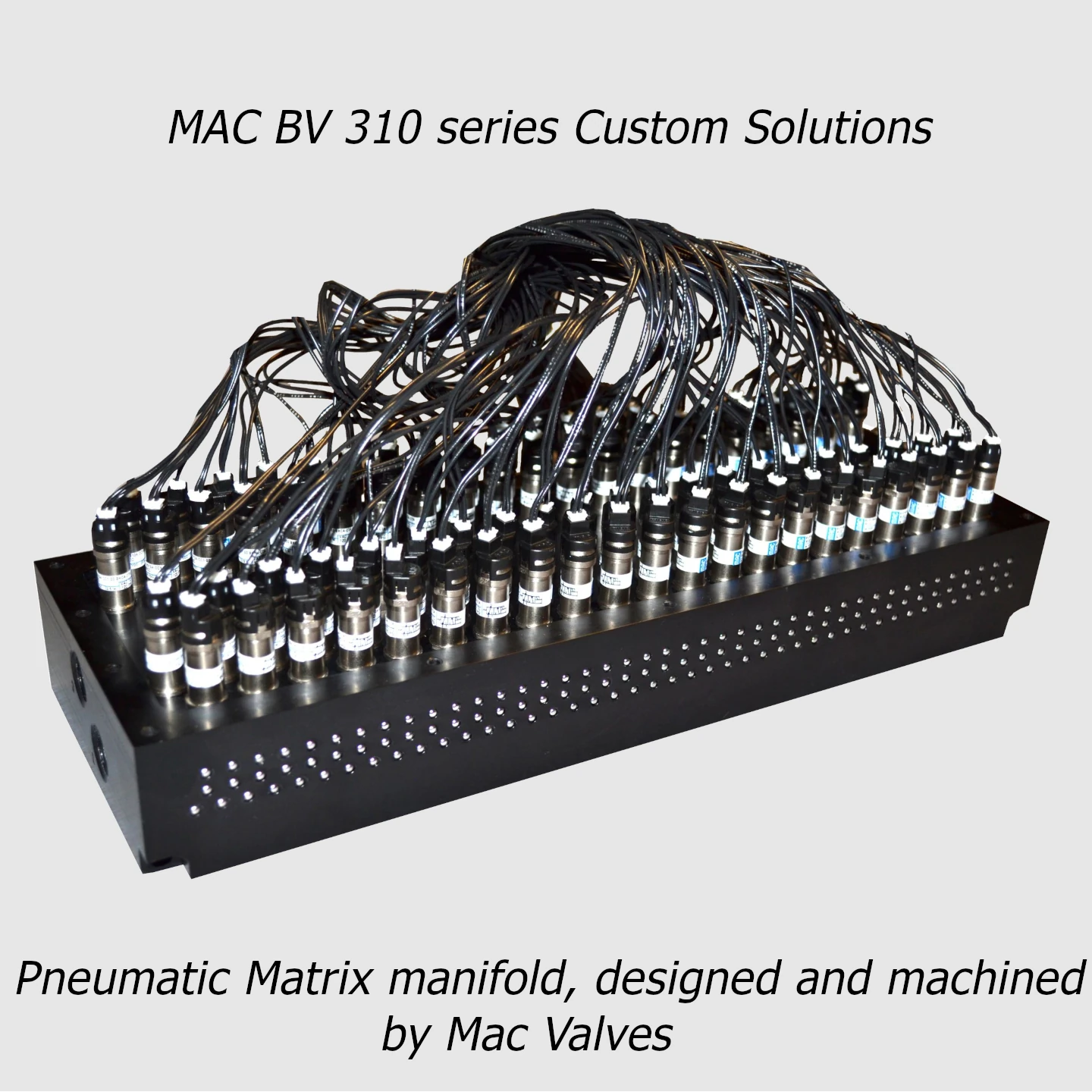

The Mac Series “Bullet Valves®” are ideal for developing your custom design. LDA can provide the necessary support for designing and manufacturing your unique pneumatic solution. We can also machine this manifold for you.
Double diaphragm valves available:
