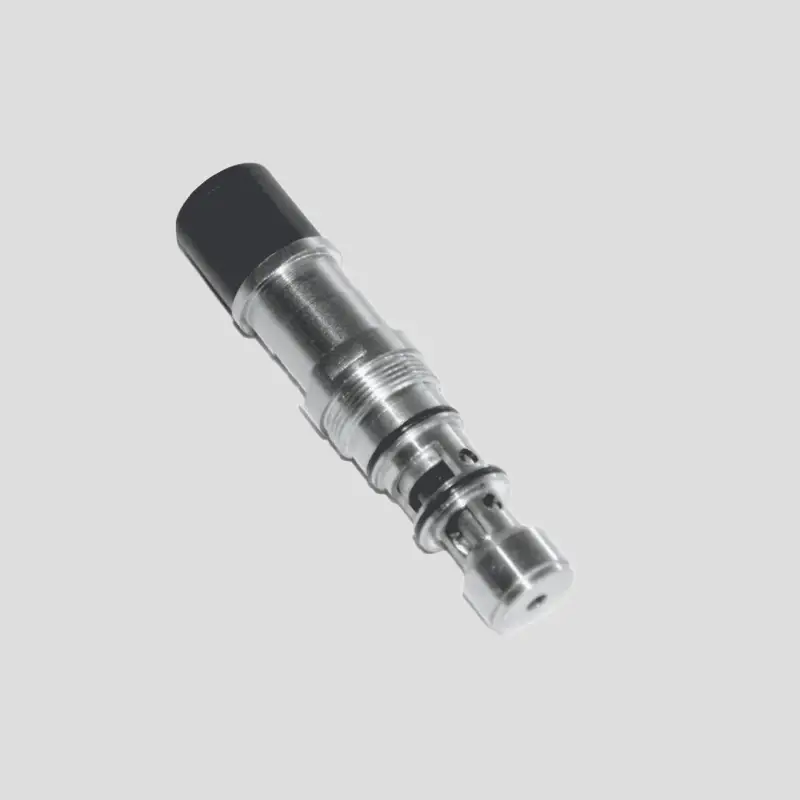

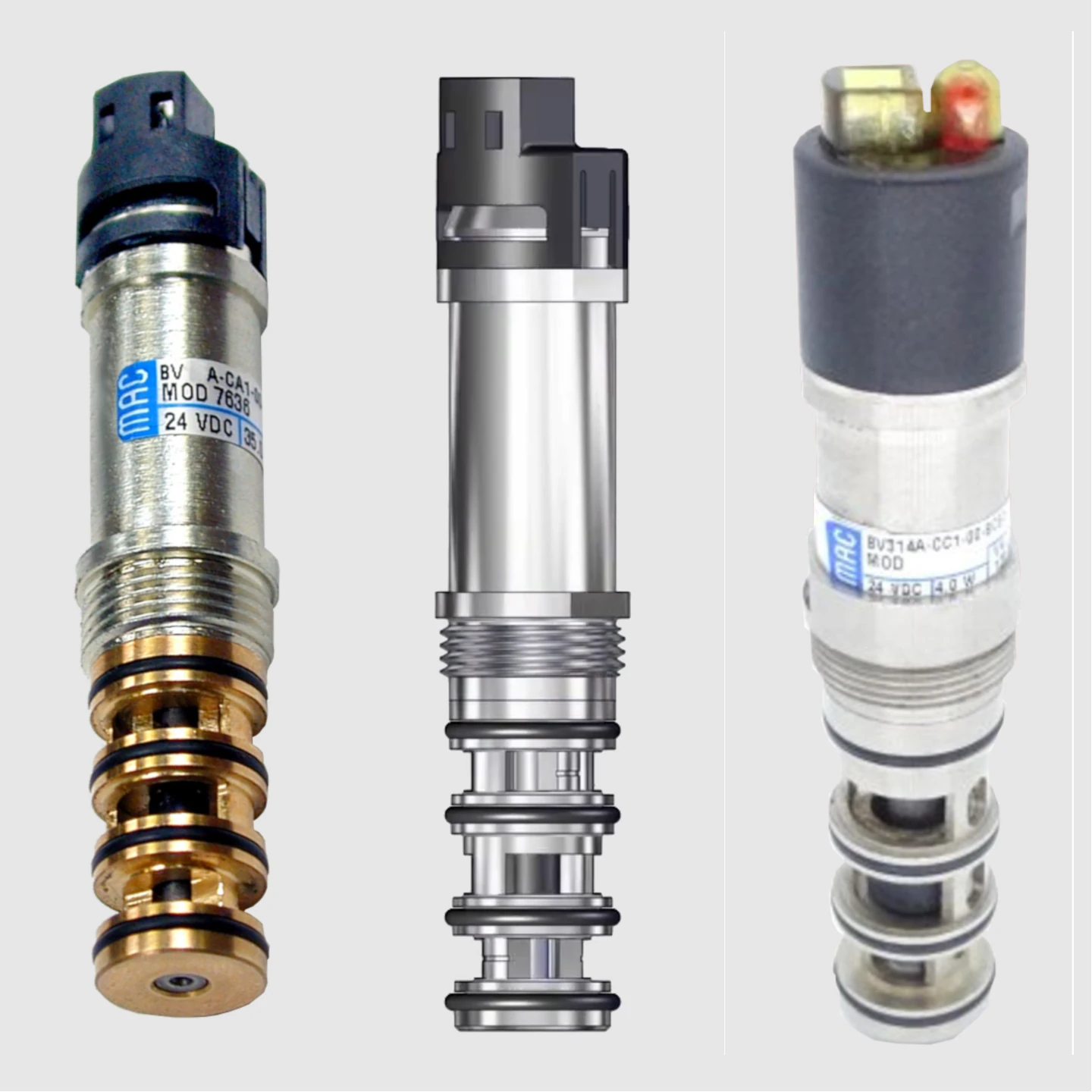

MAC Valves BV314

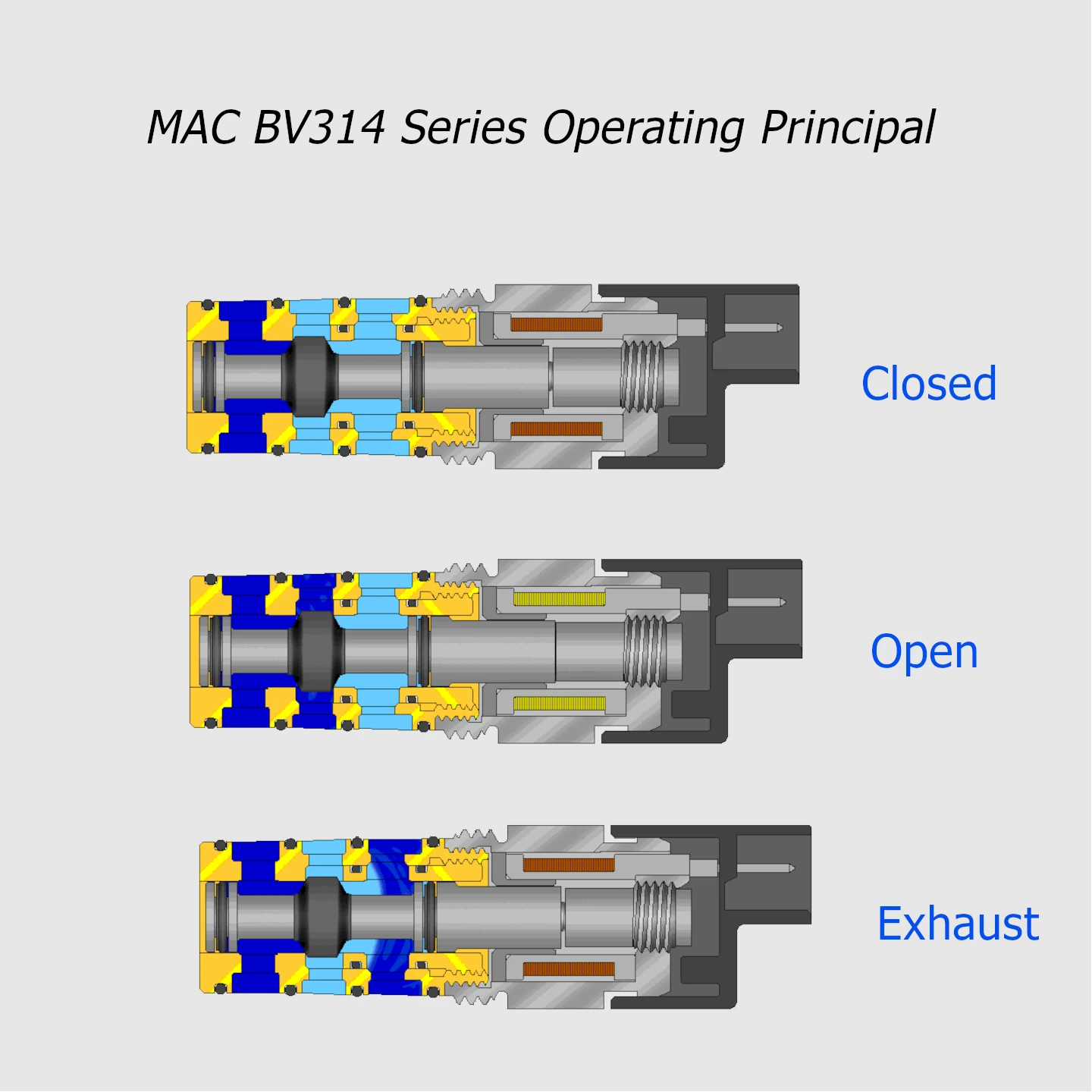

The MAC Valves BV314 is a 3-way version of the Bullet Valve® with the same compact 14 mm cartridge design. The innovative lifting solenoid concept is also used here, with a fixture/poppet completely isolated from the pressurized air. This ensures high reliability and fast switching times, regardless of fluctuations in inlet pressure.

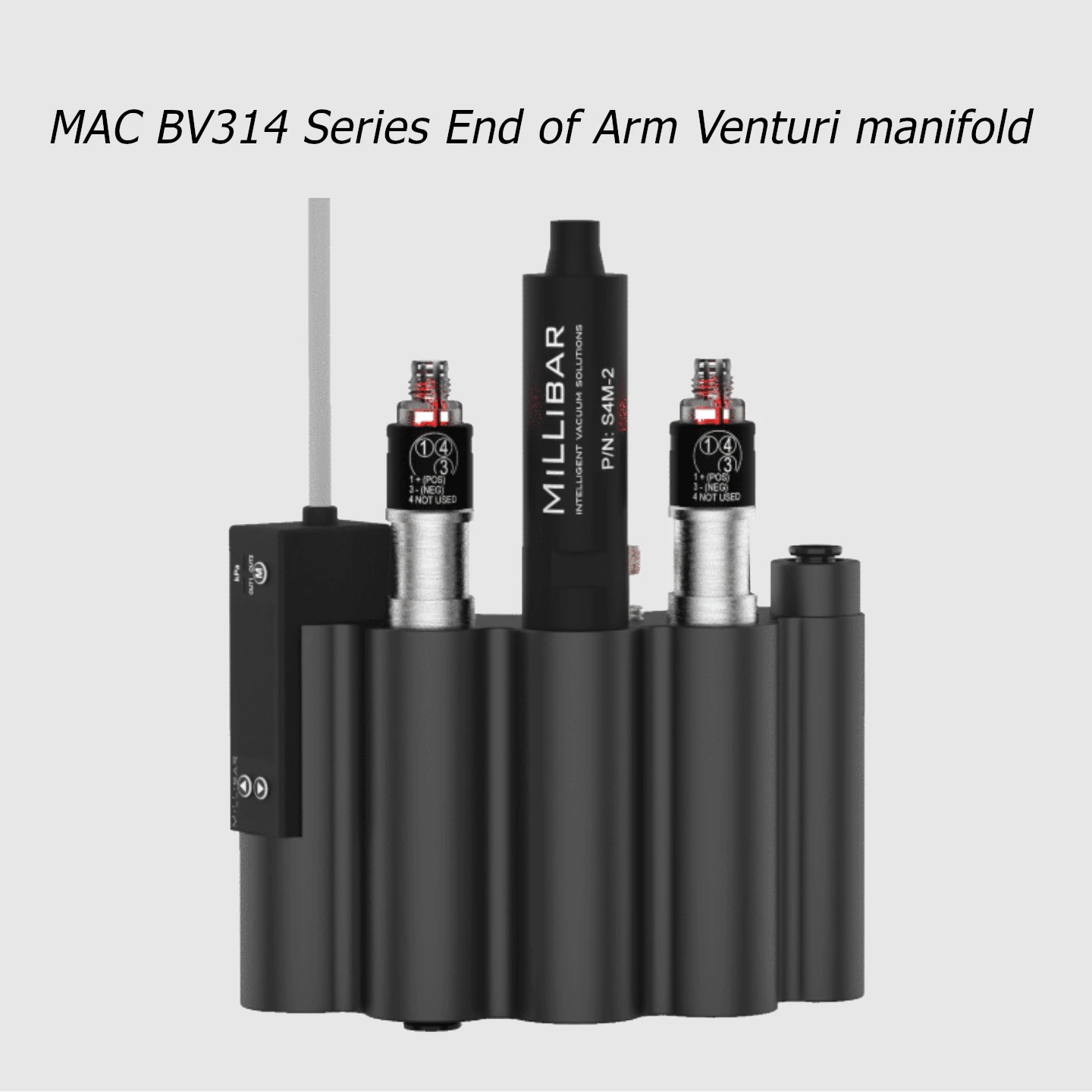

The BV314 delivers flow rates up to 190 Nl/min and, like the BV214, is constructed of few parts with a bonded spool mechanism that reduces wear and prevents seizing. This valve is suitable for manifold assembly or direct mounting in compact installations.

The BV314 is also available in 12 V DC and 24 V DC, with power options from 1.0 W to 4.0 W, depending on the application. A perfect solution for precise air control in small spaces.
