Technical Data

  • Maximum thrust: 1.9 kN
  • Repeat accuracy: ±0.05 mm
  • Temperature range: –12 °C to +54 °C
  • Profile widths: 16, 25, 32, 40, 50, and 63 mm
  • Drive: Polyurethane belt with steel pull wires
  • Options: motor mount, 2:1 or 3:1 gear ratio, double carriage, cover plates, sensors

MXB actuators

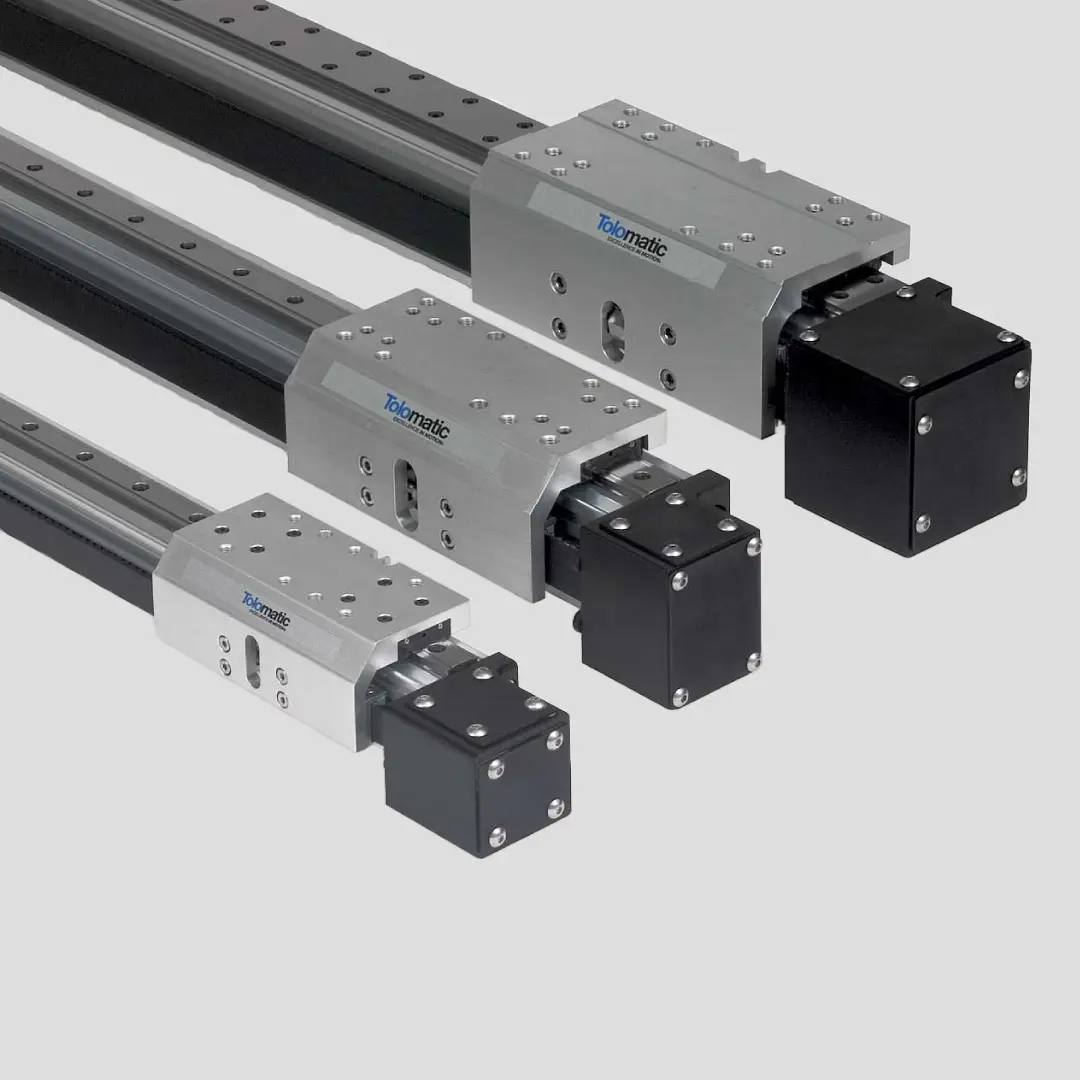

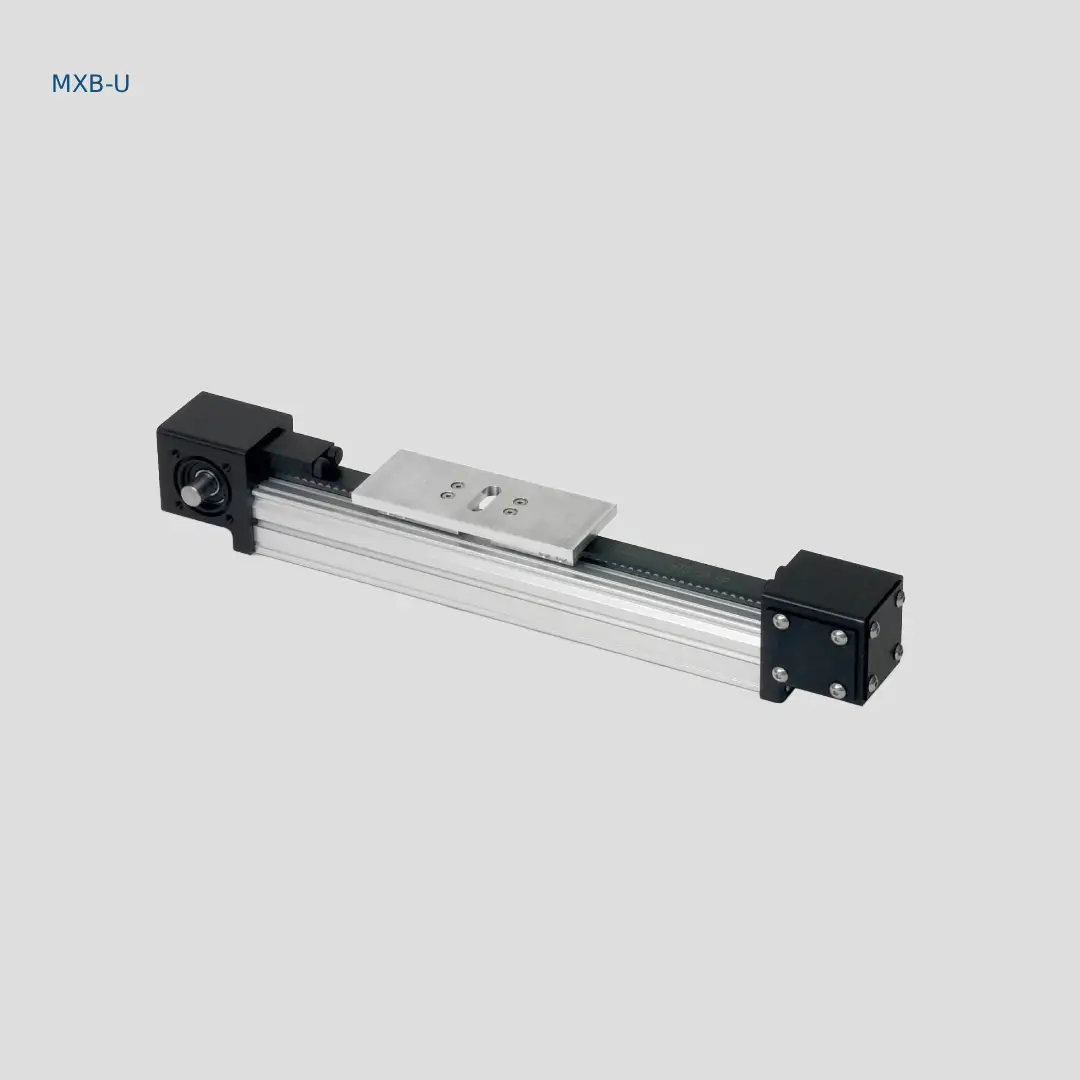

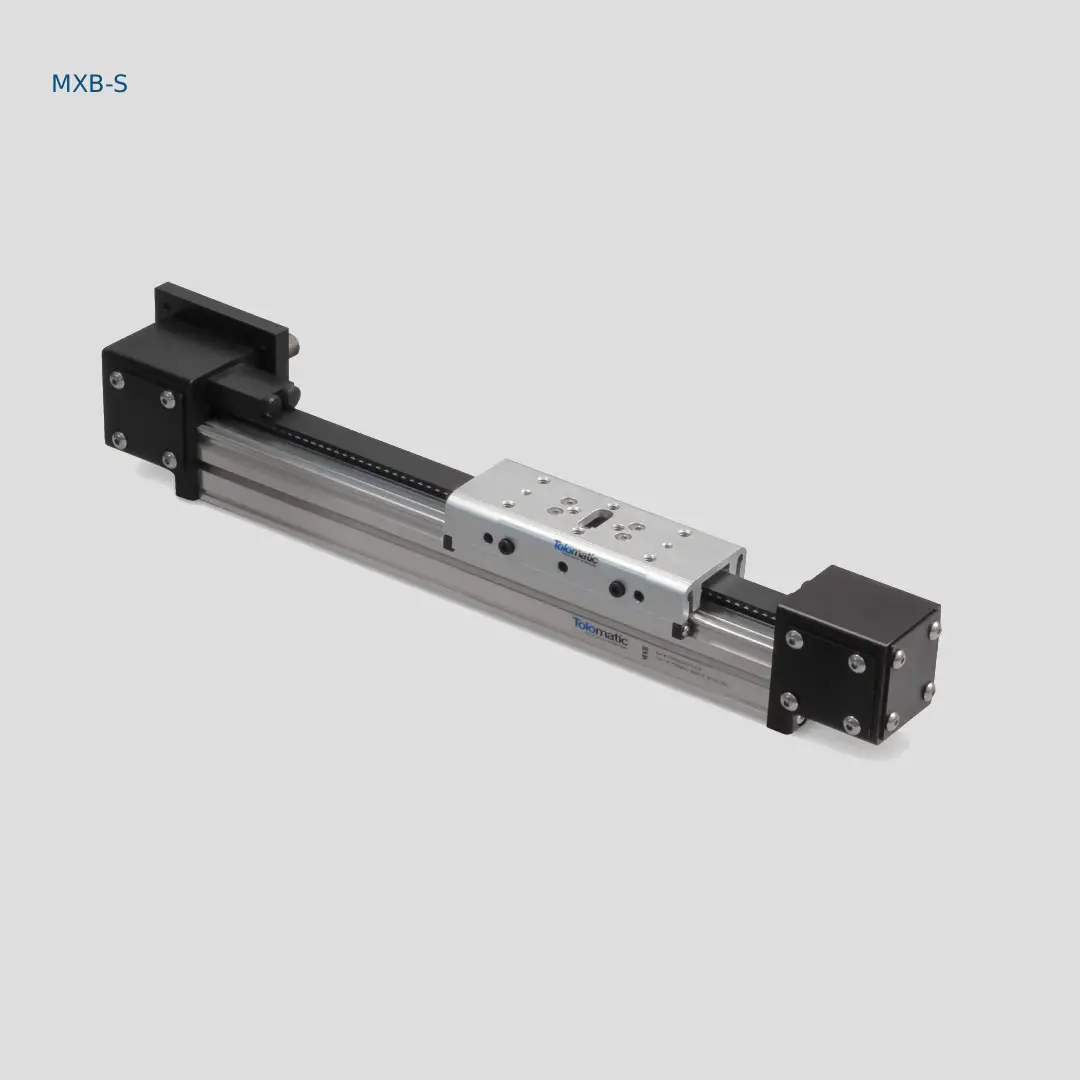

The Tolomatic MXB series consists of actuators for linear motion in transport, positioning, and machine construction. The series is available in three versions: MXB U with an unguided carriage, MXB S with slide bearing lining, and MXB P with ball bearing. Each version is designed for a different load and stroke length.

The actuators move loads up to 11.5 kilonewtons, at speeds up to 5.1 meters per second and stroke lengths up to 14.6 meters. The drive is via a reinforced belt. The aluminum profile ensures low mass and a rigid construction. The parts are easy to maintain and the belt tension can be adjusted from the outside.
