Technical Data

  • Bore size: Ø 6 to 20 mm
  • Pressure range: 0.6 to 7 bar
  • Temperature range: 5°C to 60°C
  • Speed: 50 to 500 mm/s
  • Service life: 3 million cycles
  • Lubrication: factory lubricated
  • Maximum moment load: pitch 0.47 to 3.14 Nm, yaw 0.39 to 2.75 Nm, roll 0.59 to 5.49 Nm

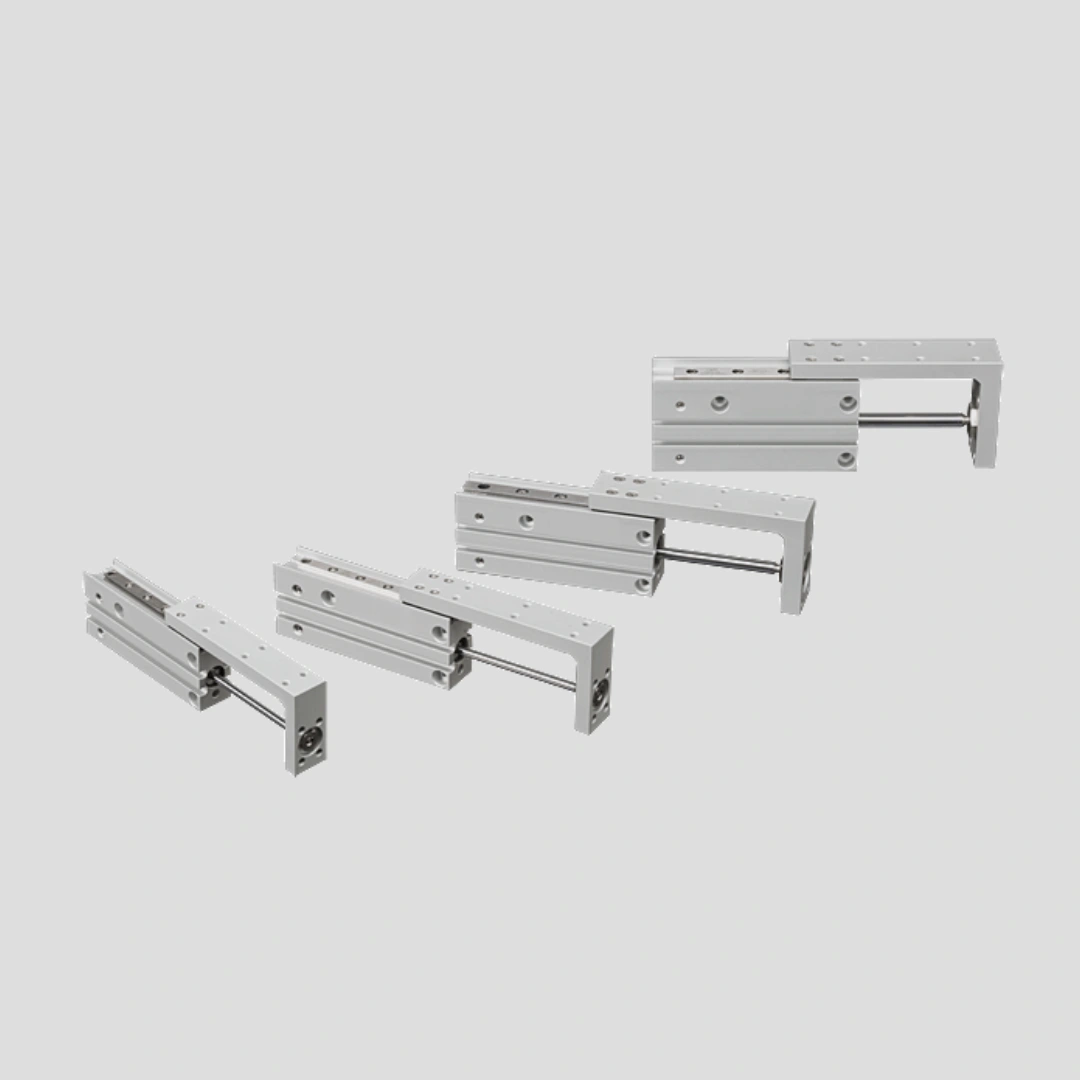

Series OSH Compact Slide Table

OSH-Series Compact Slide Tables offer multiple port locations for application flexibility. Four bore sizes available with incremental stroke lengths. Metric mounting matches global standards. Standard shock pads reduce end-of-travel impact and magnets for switch sensing.

Advantages

  • Flexible port locations for various applications
  • Compact design with high performance
  • Standard shock pads and magnets
  • Easy integration with metric mounting
  • Suitable for precision movements and light loads
