S48 EU

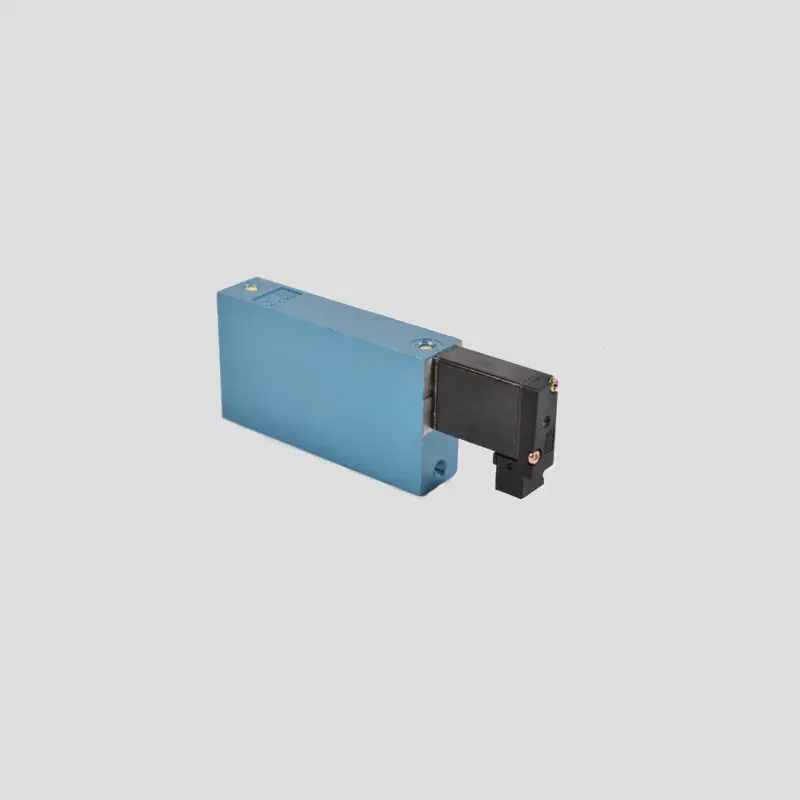

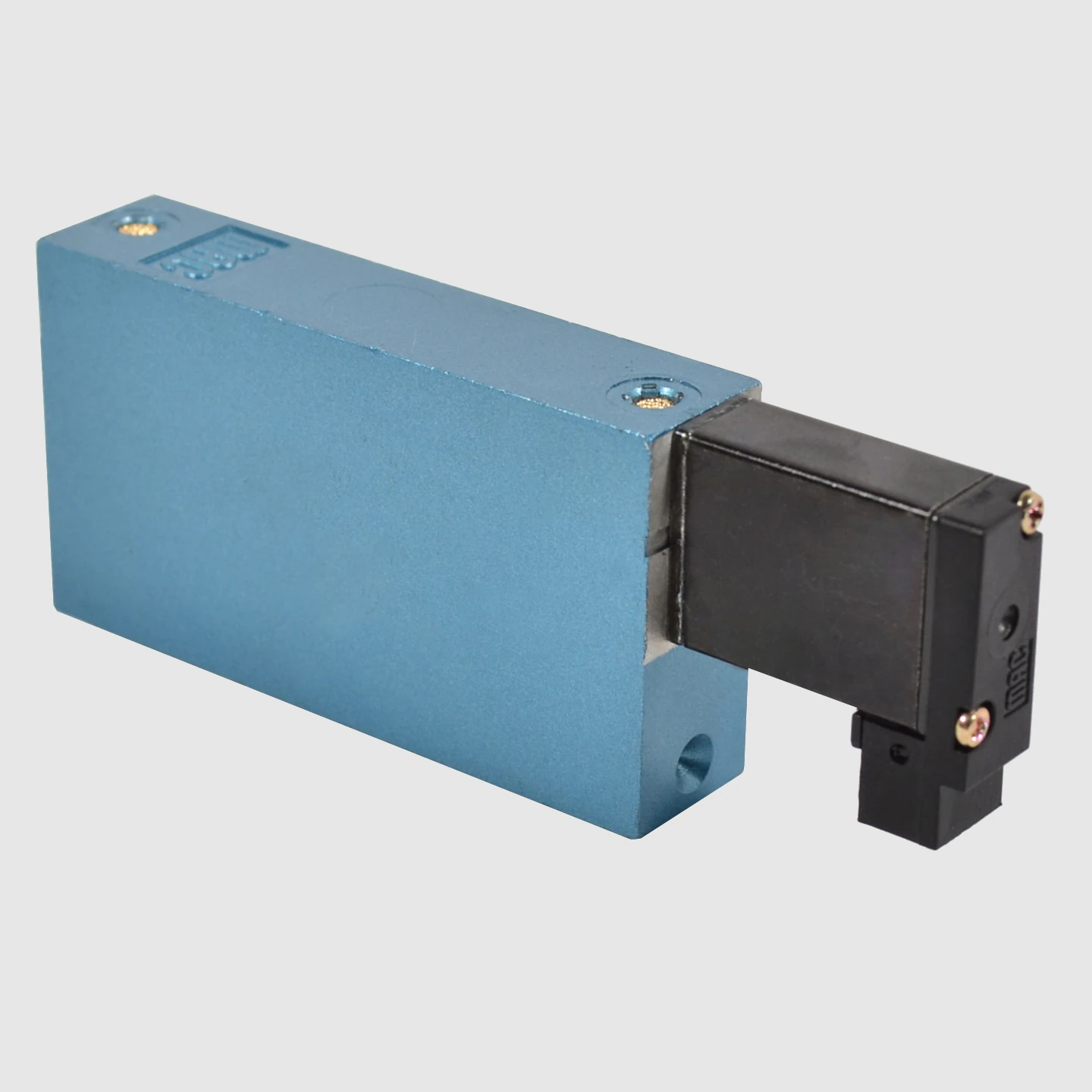

MAC 48 Series solenoid valve 5/2-5/3, 1/8”, 1100Nl/min

Function: 5/2, 5/3
Max. Flow: 1100 Nl/min
Port sizes: 1/8"
Configuraties: Mac Connect, Sub Base/Manifold

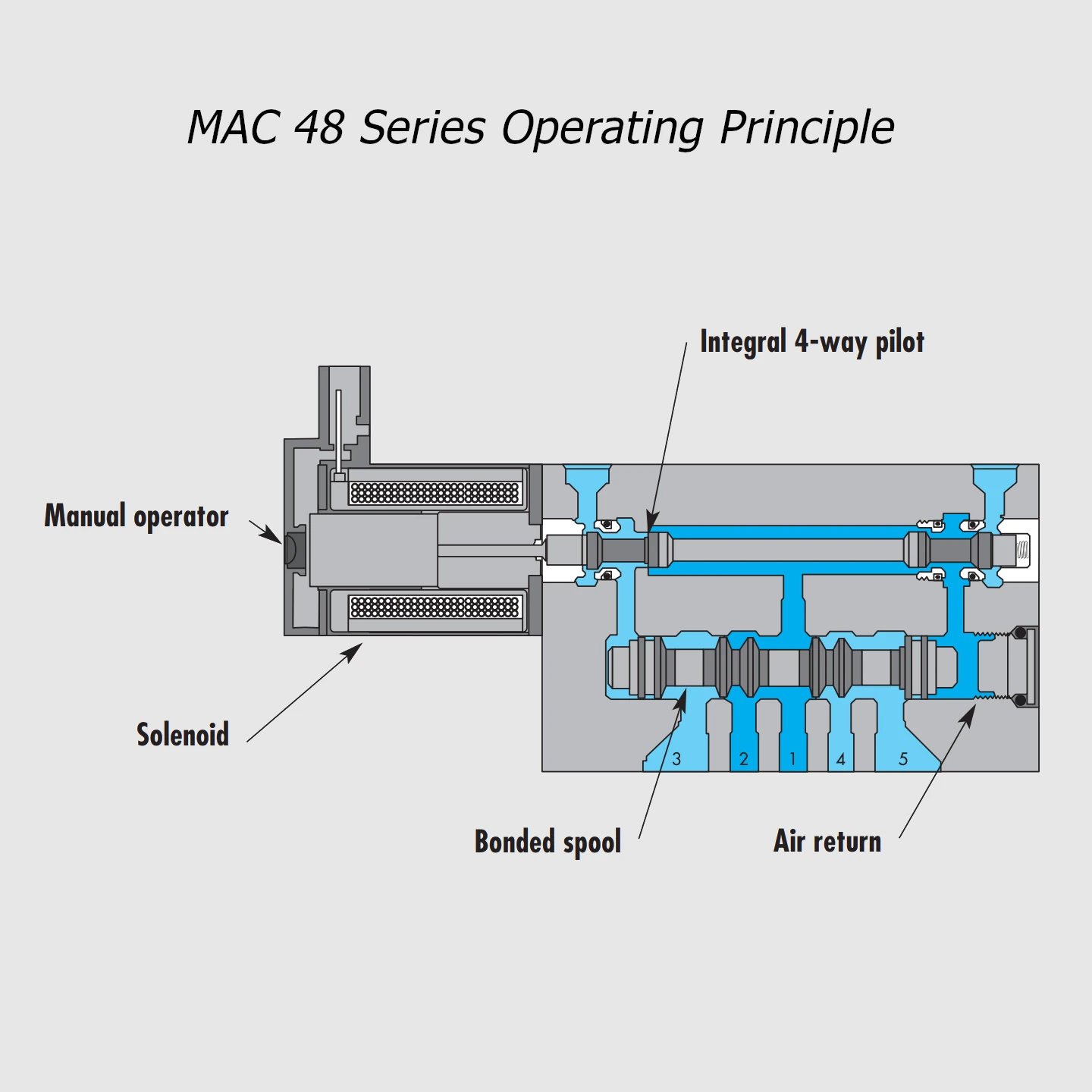

The MAC 48 Series is high flow pilot operated 4-way or 5-way solenoid valve with a unique integral four way pilot.

The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

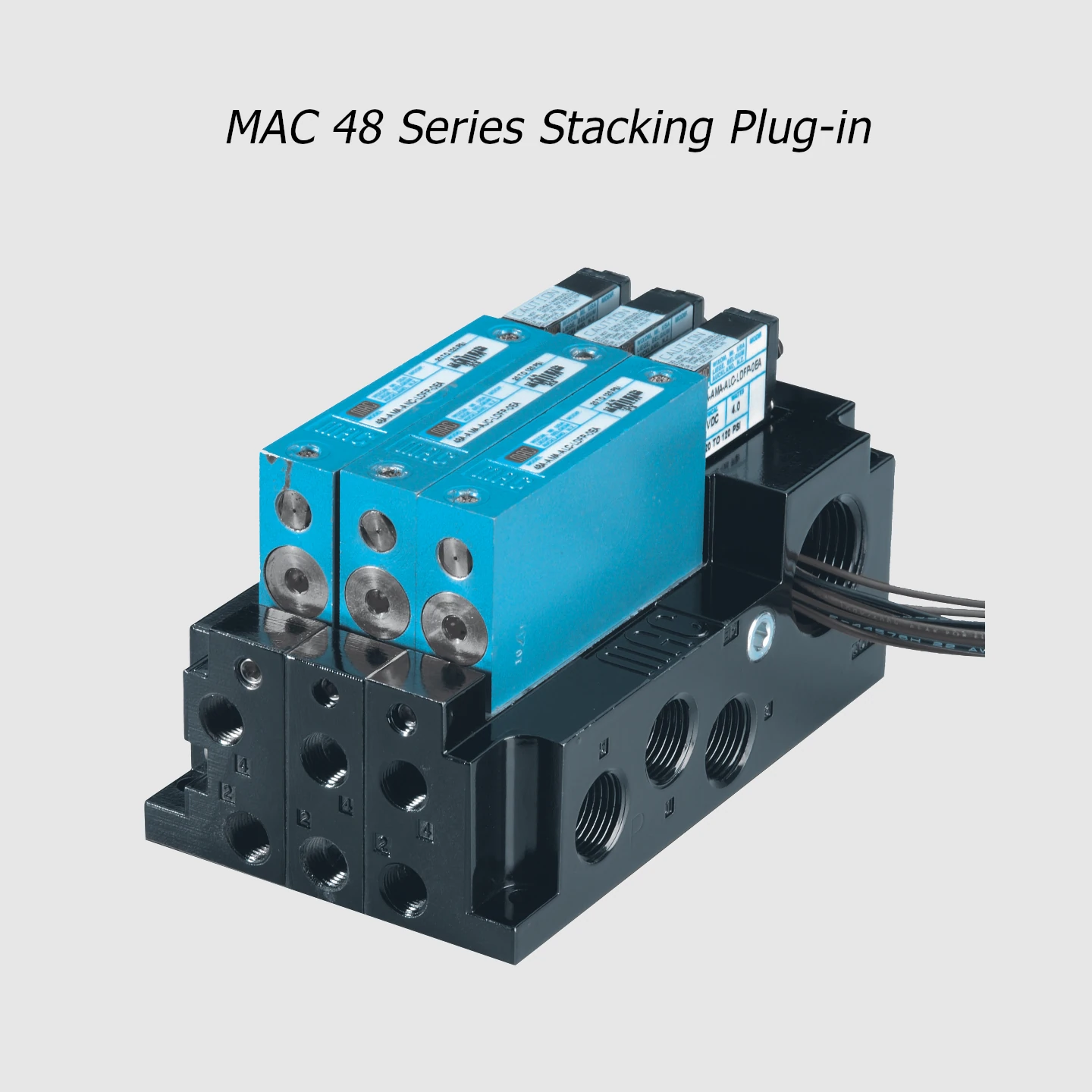

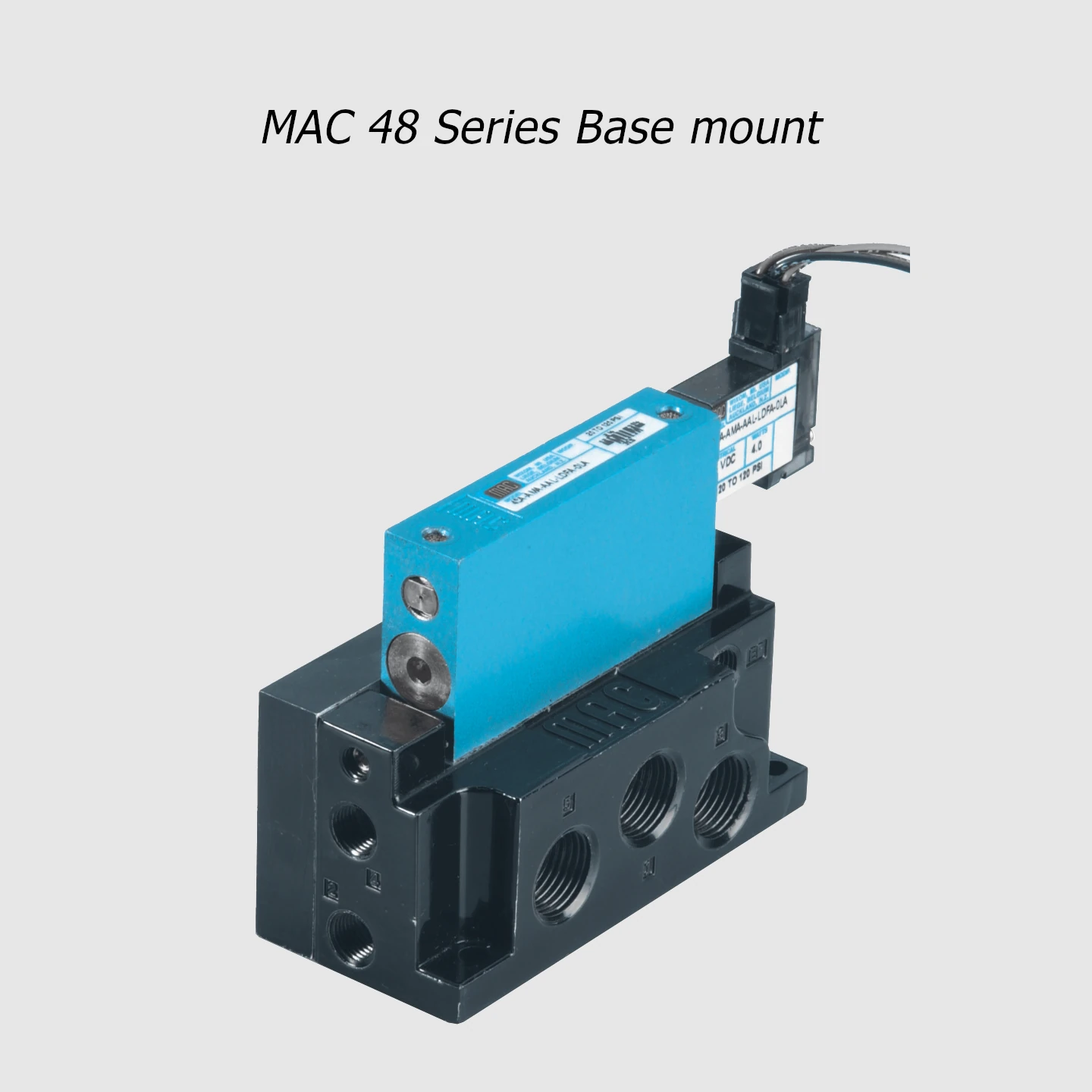

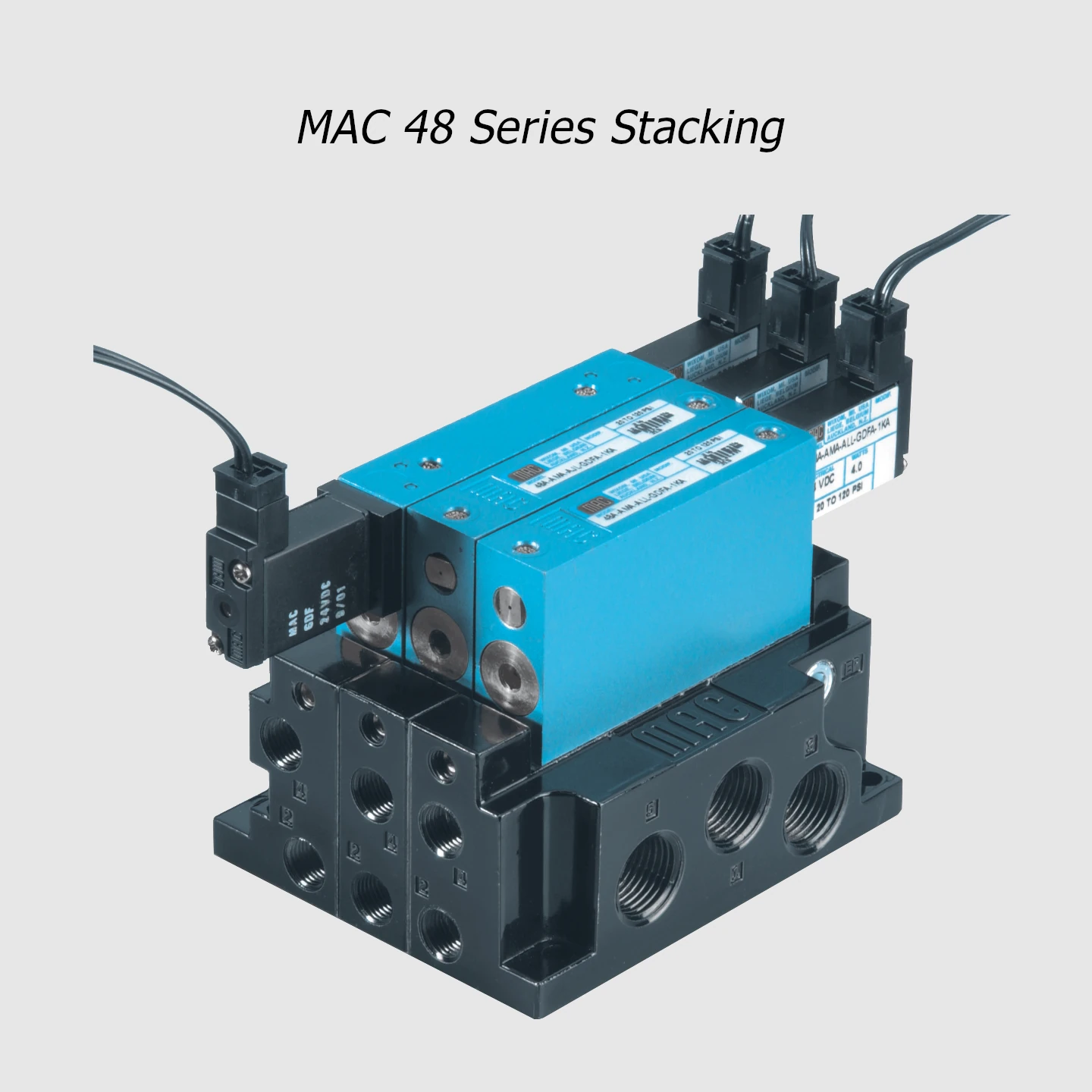

The 48 Series is available in different configurations such manifold mount or Mac Connect (Cable management incorporated). Its low power consumption makes this valve particularly suitable for applications where space and efficiency are essential.
