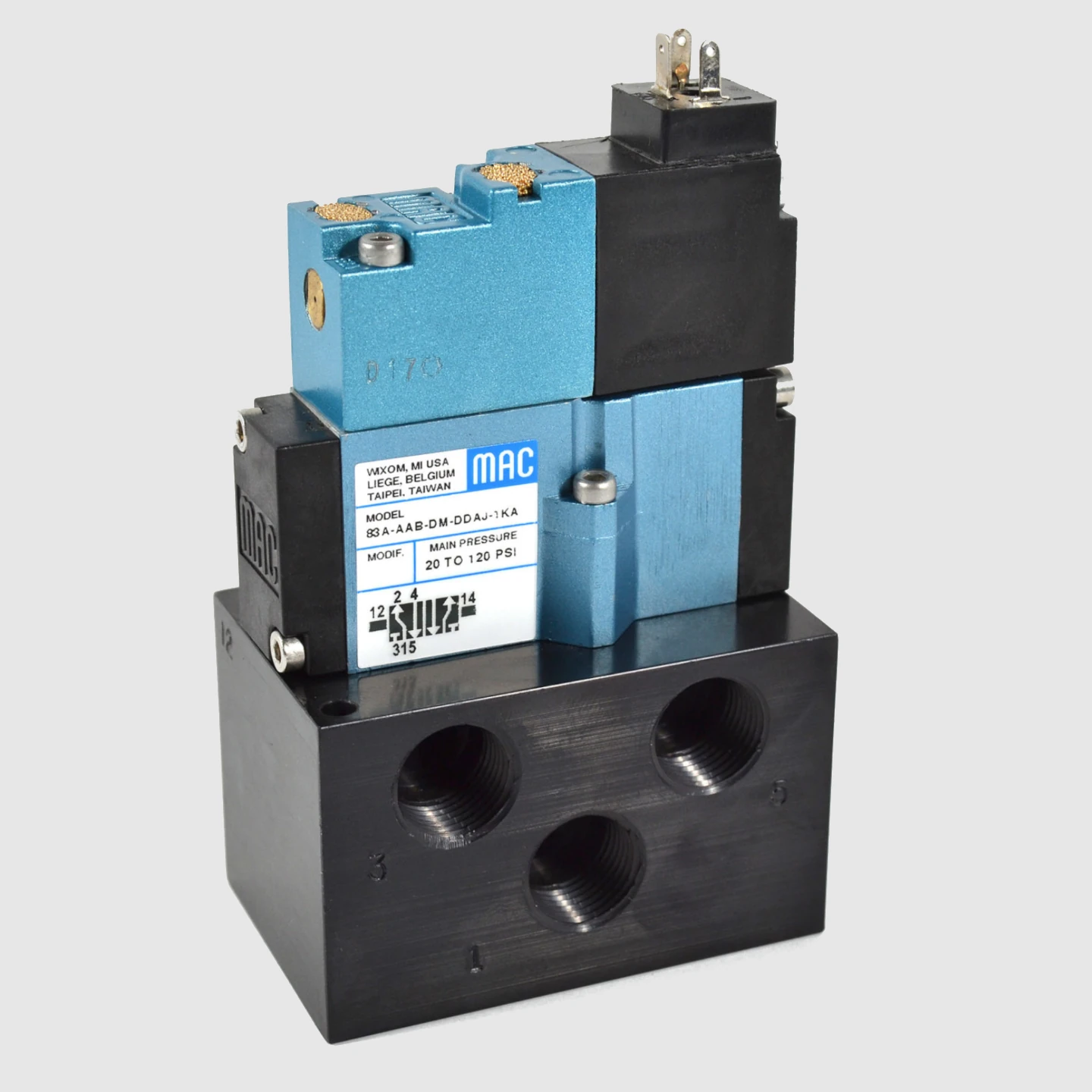

MAC 83 Series solenoid valve 5/2-5/3, 1/4”-3/8”, 1500Nl/min

Function: 5/2, 5/3
Max. Flow: 1500 Nl/min
Port sizes: 1/4", 3/8"

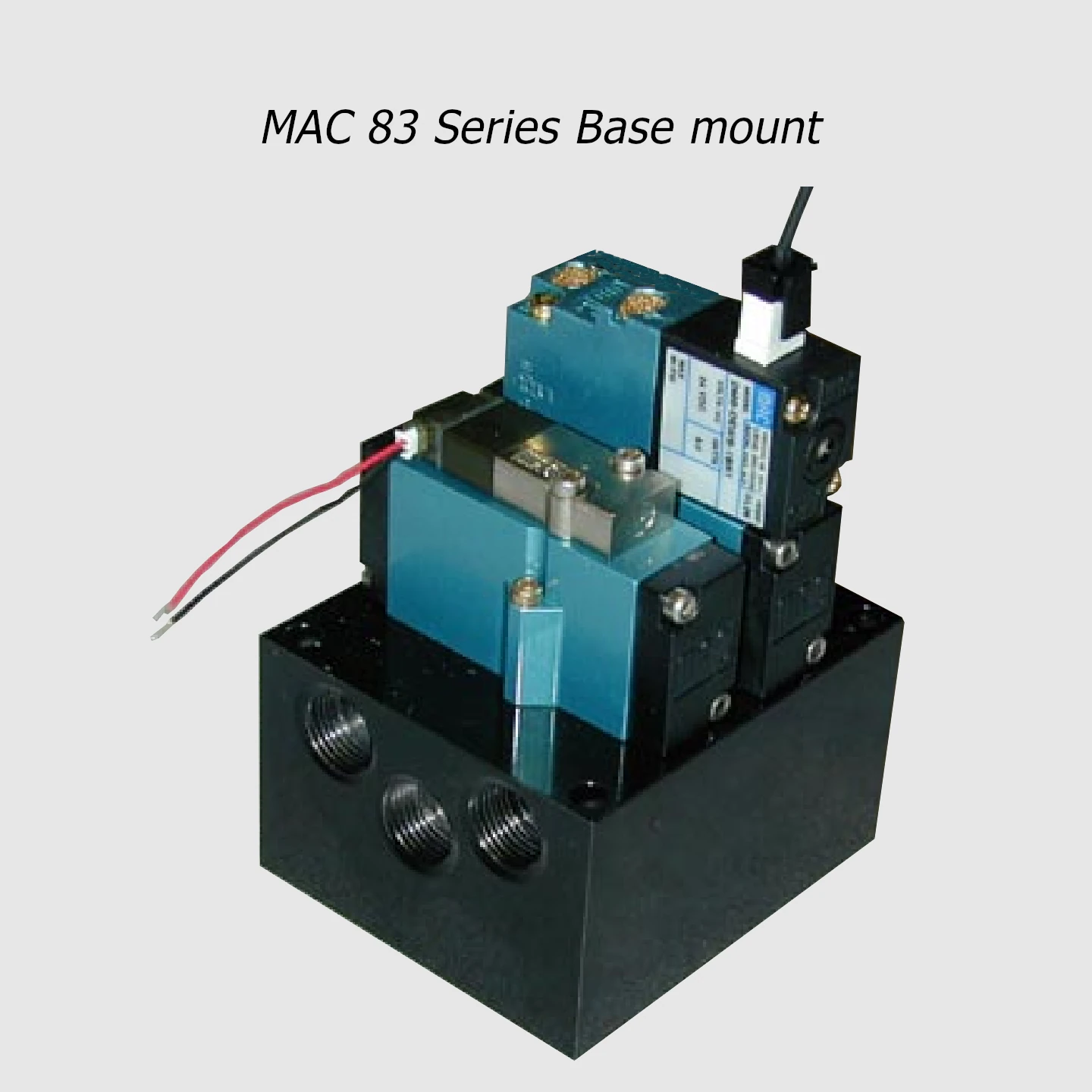

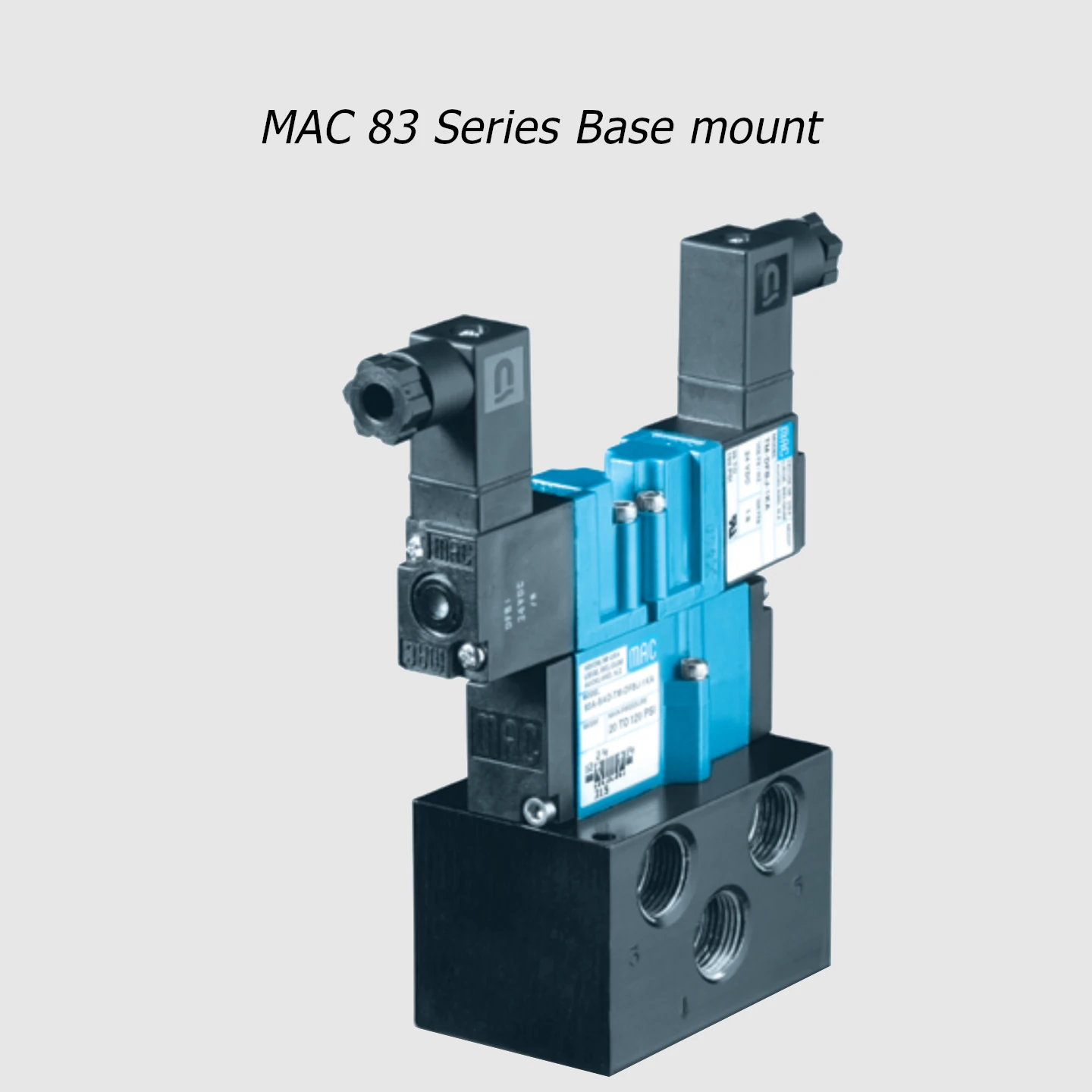

Configuraties: Indivdual, Sub Base/Manifold

The MAC 83 Series is a versatile 4-way solenoid piloted spool valve or Remote Air operated valve.

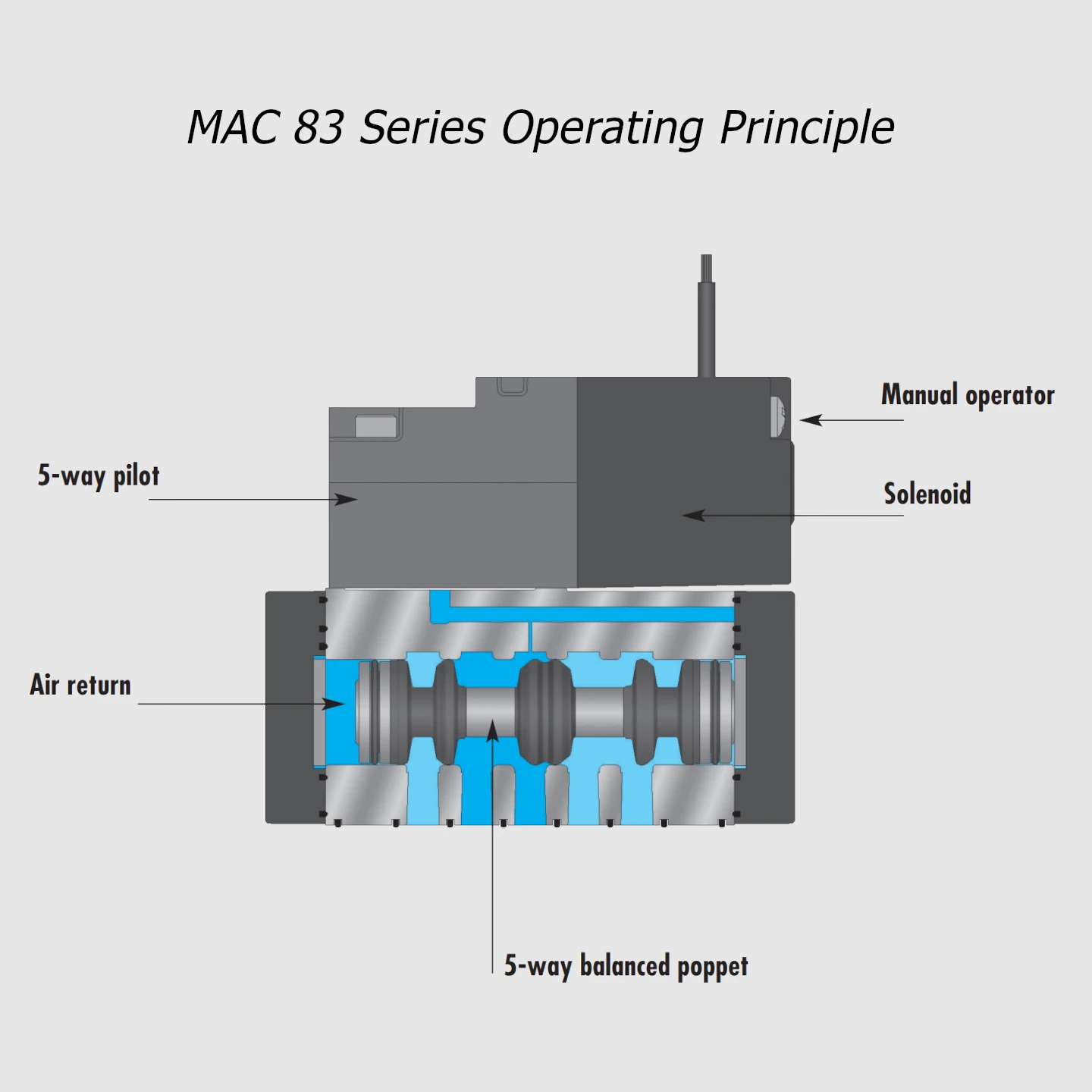

This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.

Versatility in piping means the valve can be piped as a 5-way or 3-way, single or dual air pressure inlet. Can be used for compressed air, vacuum, diverter or selector applications.

Our one piece bonded seal spool means longer life and easy maintenance.
