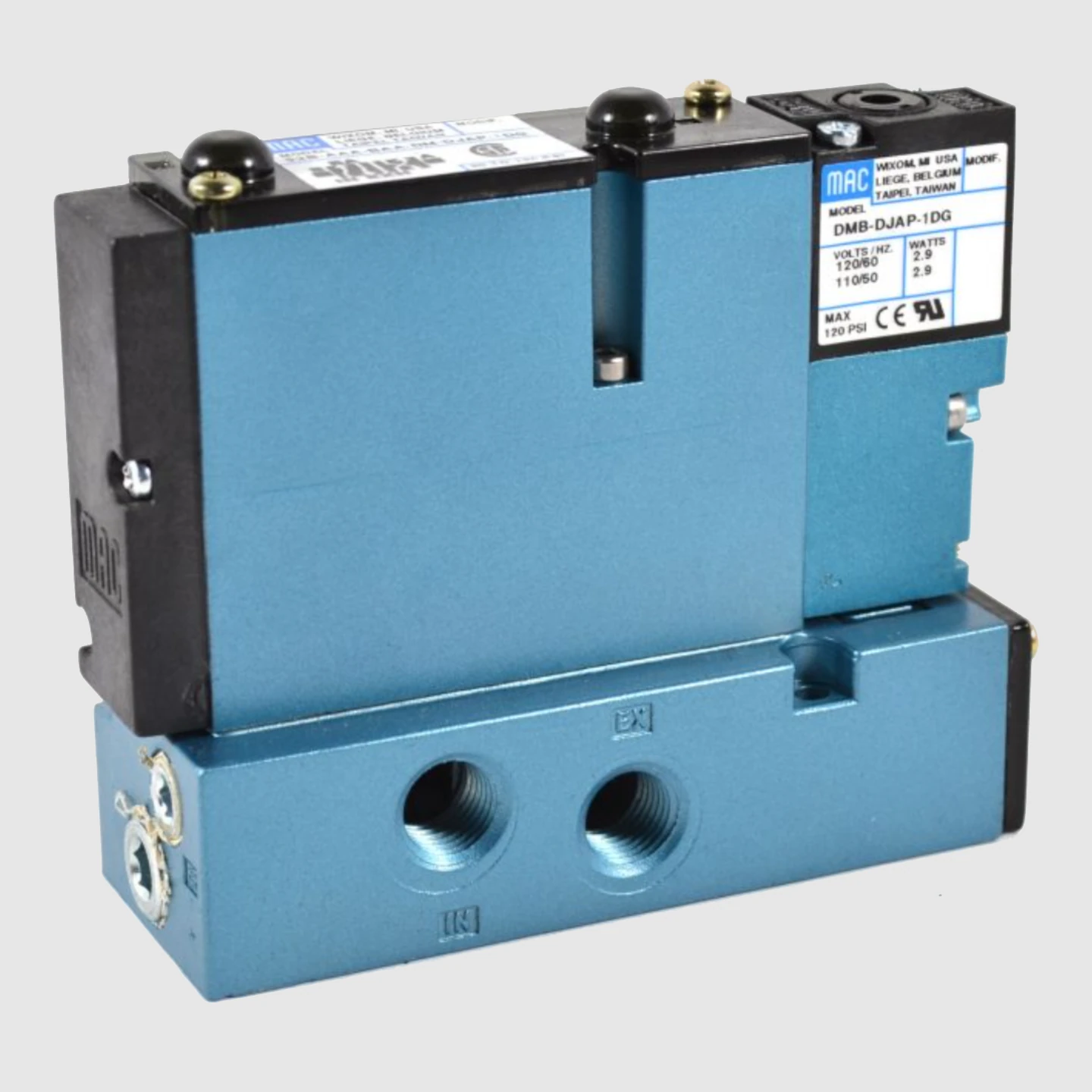

92 Series solenoid valve 1/8″ – 3/8″ 1200 Nl/min

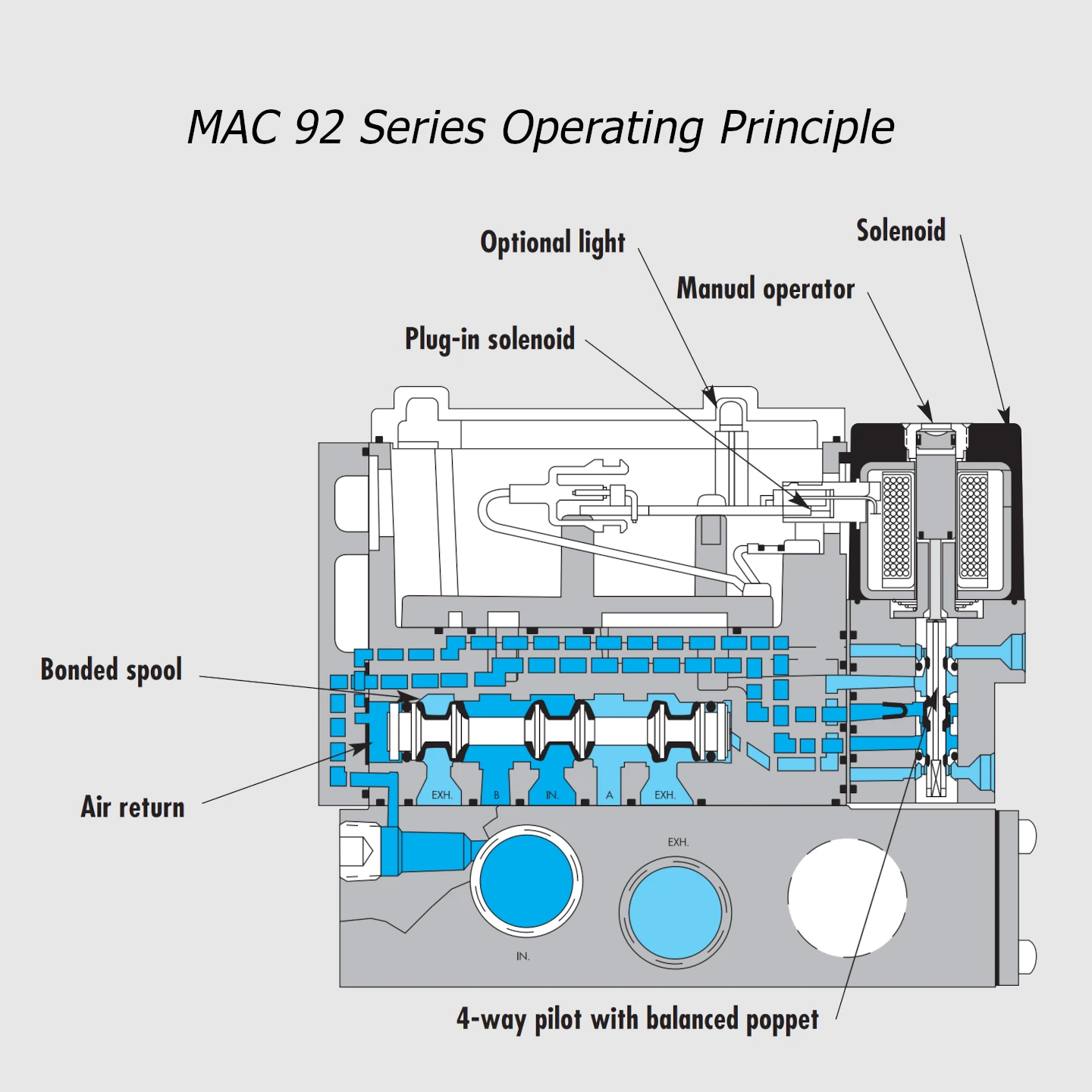

The MAC Valves 92 Series is a compact 5-way spool valve with direct solenoid pilot control. This valve is available with port sizes from 1/8″ to 3/8″ and has flow rates up to approximately 1200 Nl/min (max Cv = 1.2). The bonded spool with wiping effect minimizes friction, prevents seizing and guarantees long life under heavy use.

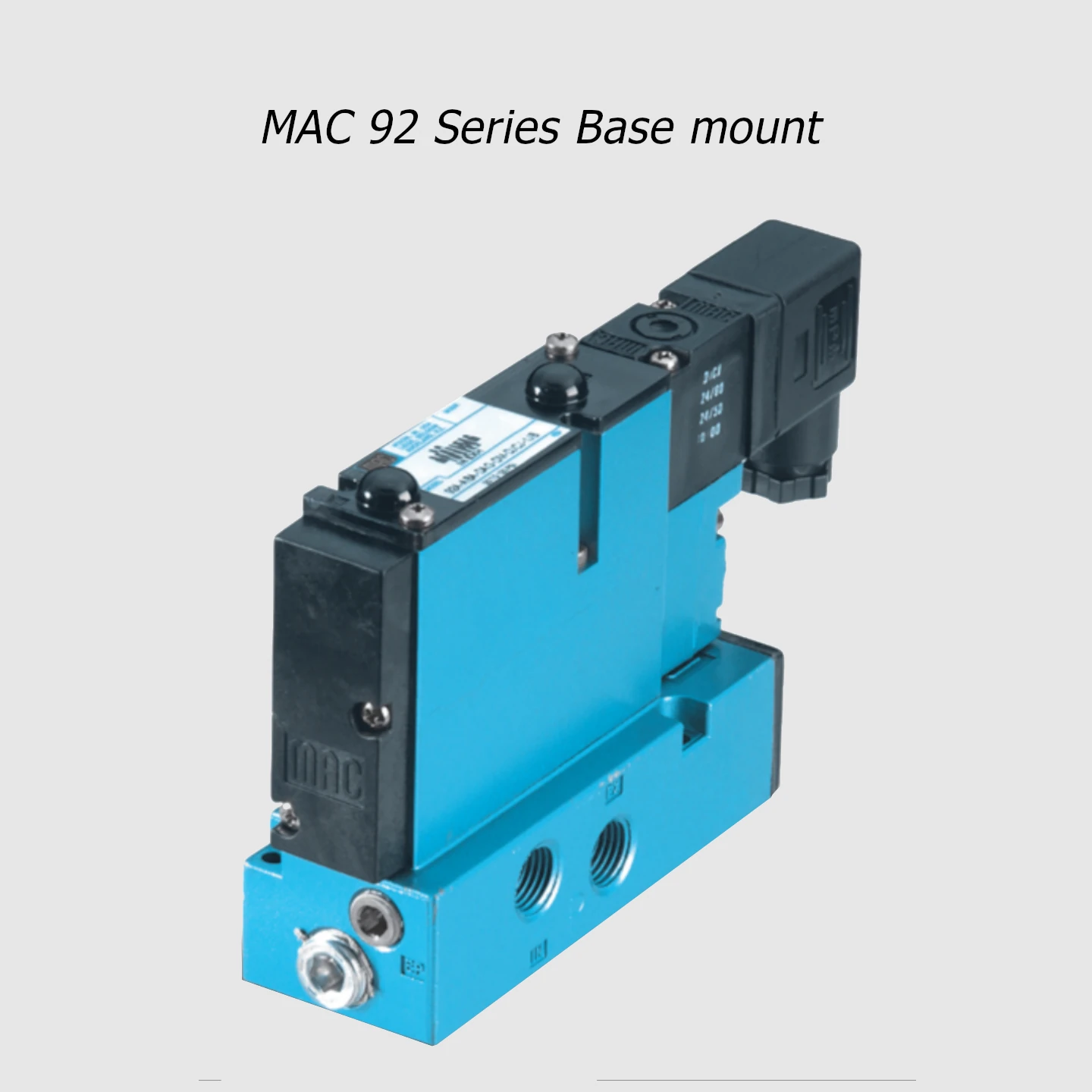

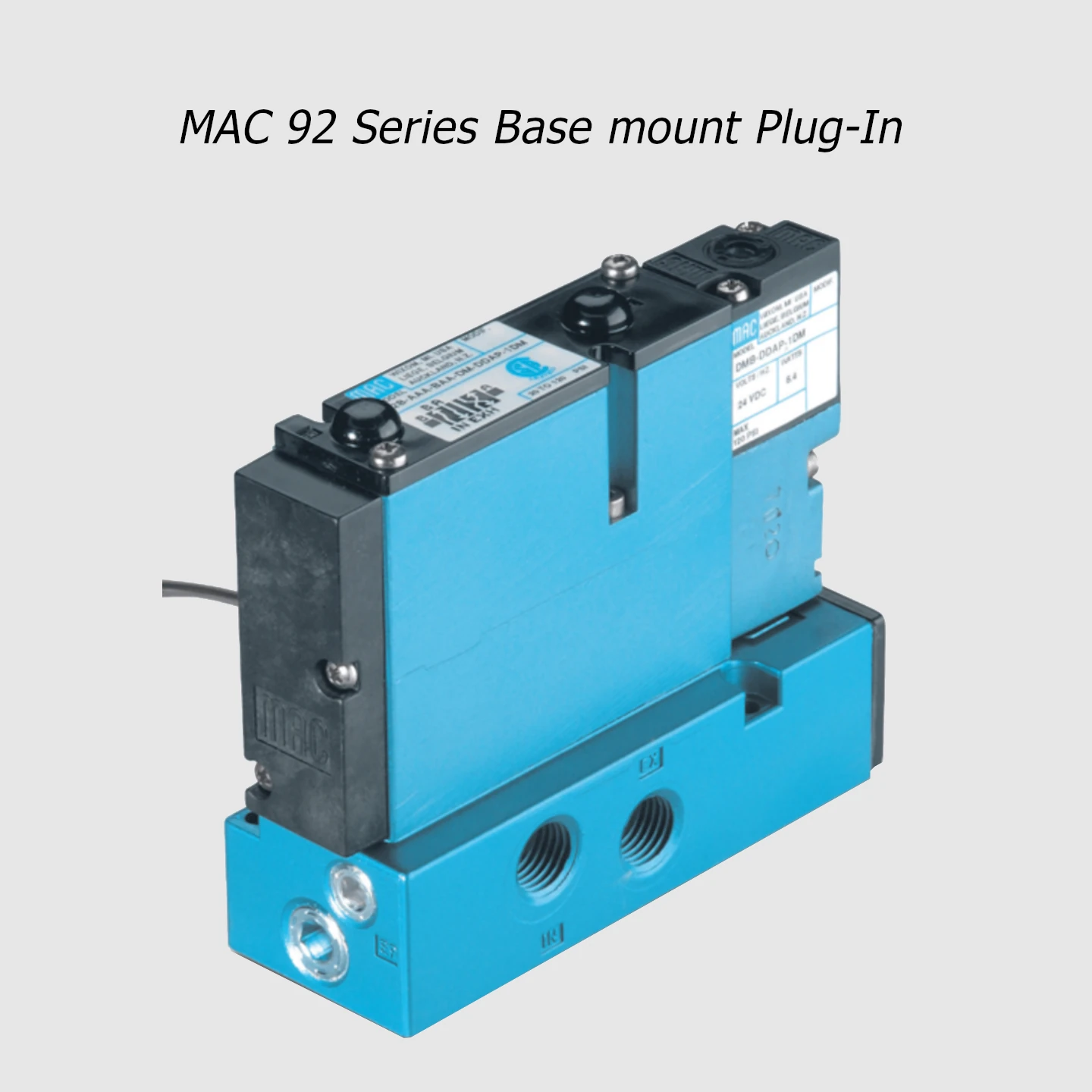

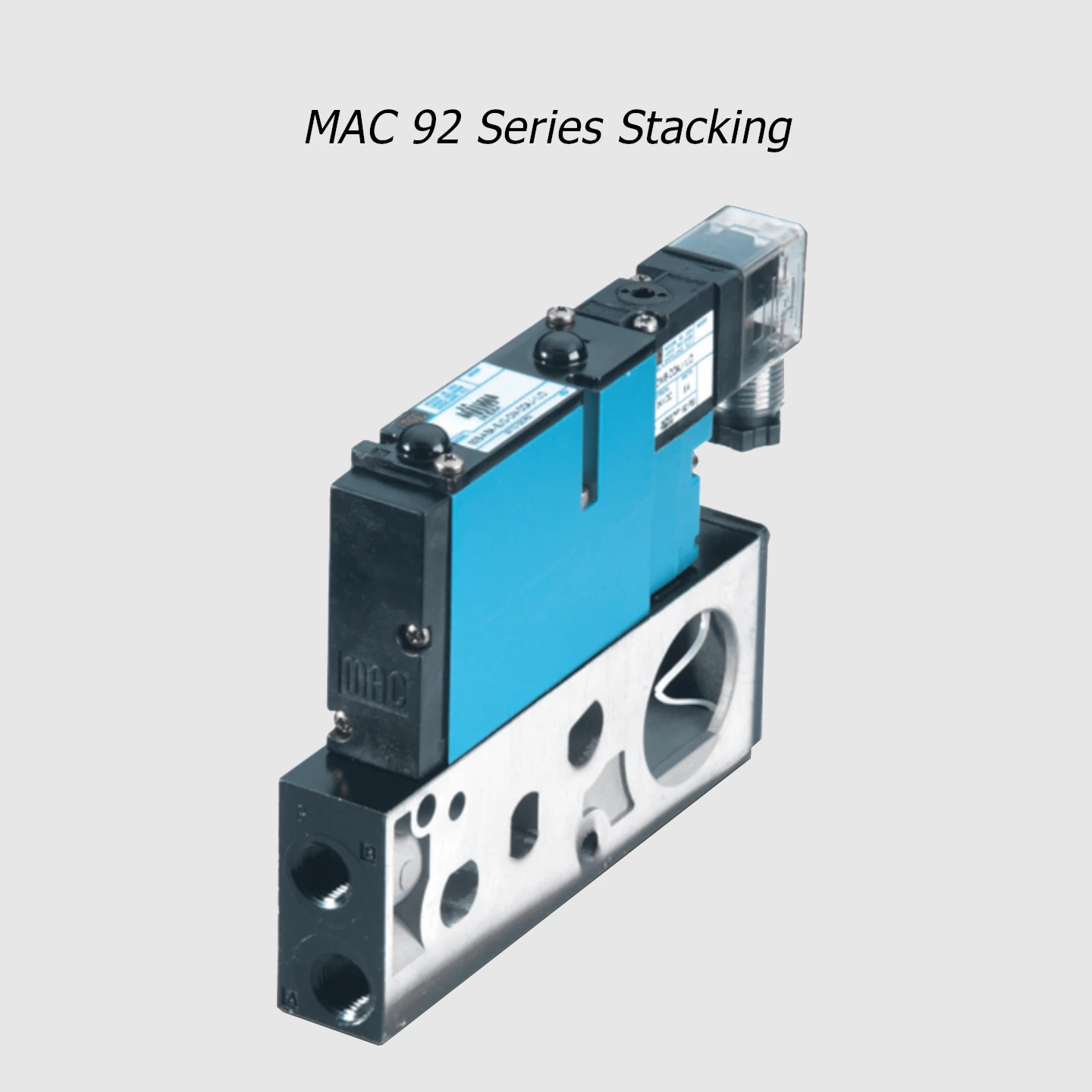

The 92 Series shifts quickly and consistently thanks to the balanced poppet in the pilot and air/spring return, even with varying inlet pressures. Available in individual sub-base versions, both plug-in and non plug-in, and suitable for inline or manifold mounting. The valve is configurable as 4-way, 3-way or 2-way, normally closed or normally open, and usable for vacuum, diverter or selector applications.

This series is available with various voltage options, such as 24 V DC and 110-240 V AC, with extras such as electrical LED indication and integrated rectifiers. Standard features include international certifications such as UL, CSA, RoHS and CE for wide use.

Want to know if the 92 Series is right for your installation? Request your quote today and discover the compact power and reliability of this high-flow solution.
