Technical Data

Output signal: 4–20 mA
Supply voltage: 10–30 Vdc
Application: water, oils, diesel, gasoline
Housing/stem: stainless steel or anodized aluminum
Float: NBR Ø 30 mm
Protection rating: IP65 (with DIN43650 connector)
Operating temperature: -20 °C … +100 °C (110 °C on request)
Length: min. 100 mm – max. 2,000 mm (50 mm increments)
Accuracy/resolution: 10 mm or 20 mm pitch
Specific fluid weight: > 0.6

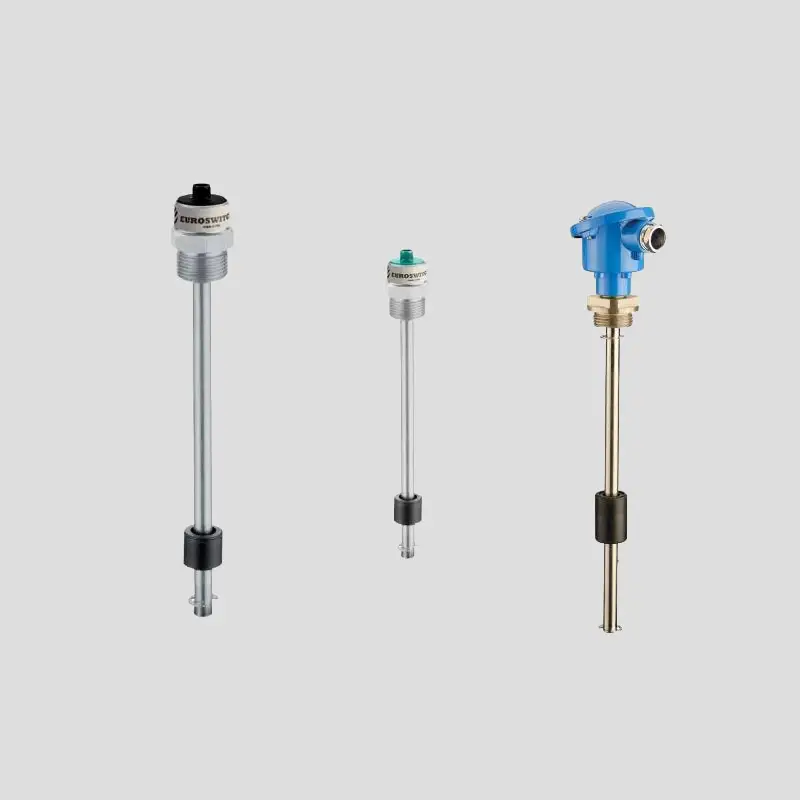

Analog level sensors

The analog level sensors from the IMRE, IMRF, and IMRG series are designed for accurate and continuous measurement of liquid levels. Thanks to their 4–20 mA output, these sensors provide a reliable signal that can be easily integrated into industrial processes and control systems.

They are suitable for a wide range of applications involving water, oils, diesel, or gasoline. The sensors are constructed from durable materials such as stainless steel or anodized aluminum and feature an NBR float that guarantees stability, even under changing liquid conditions.

The IMRE series offers standard connections, while the IMRF and IMRG provide additional variants in terms of mounting and electrical configurations. The length is variable up to 2,000 mm, allowing the sensor to be precisely tailored to the application. This series is ideal for use in hydraulic installations, tank systems, and industrial machines where reliable analog level recording is required.
