MAC ISO 01 Series solenoid valve 5/2-5/3, 1/4”, 1000Nl/min

Function: 5/2, 5/3
Max. Flow: 1000 Nl/min
Port sizes: 1/4"

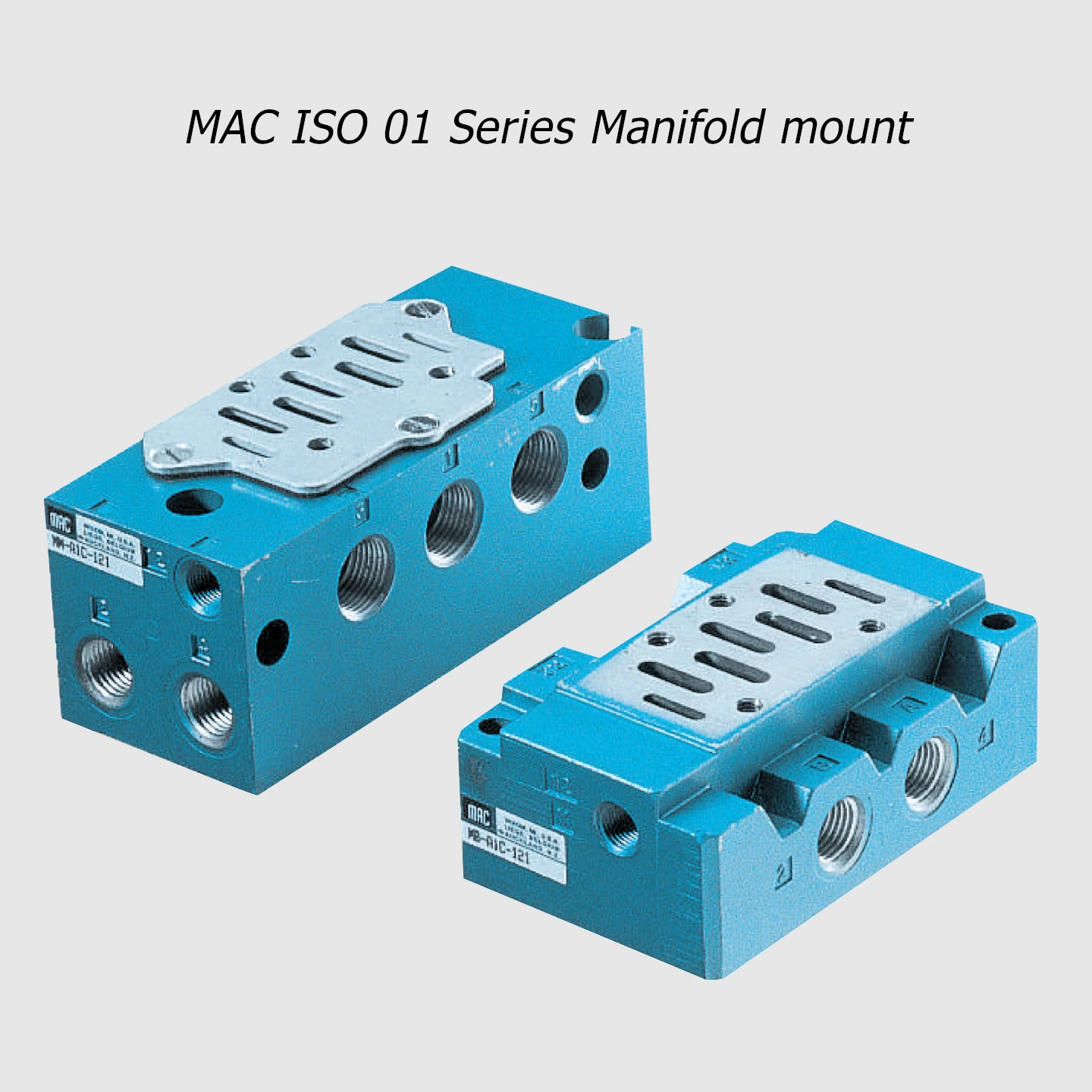

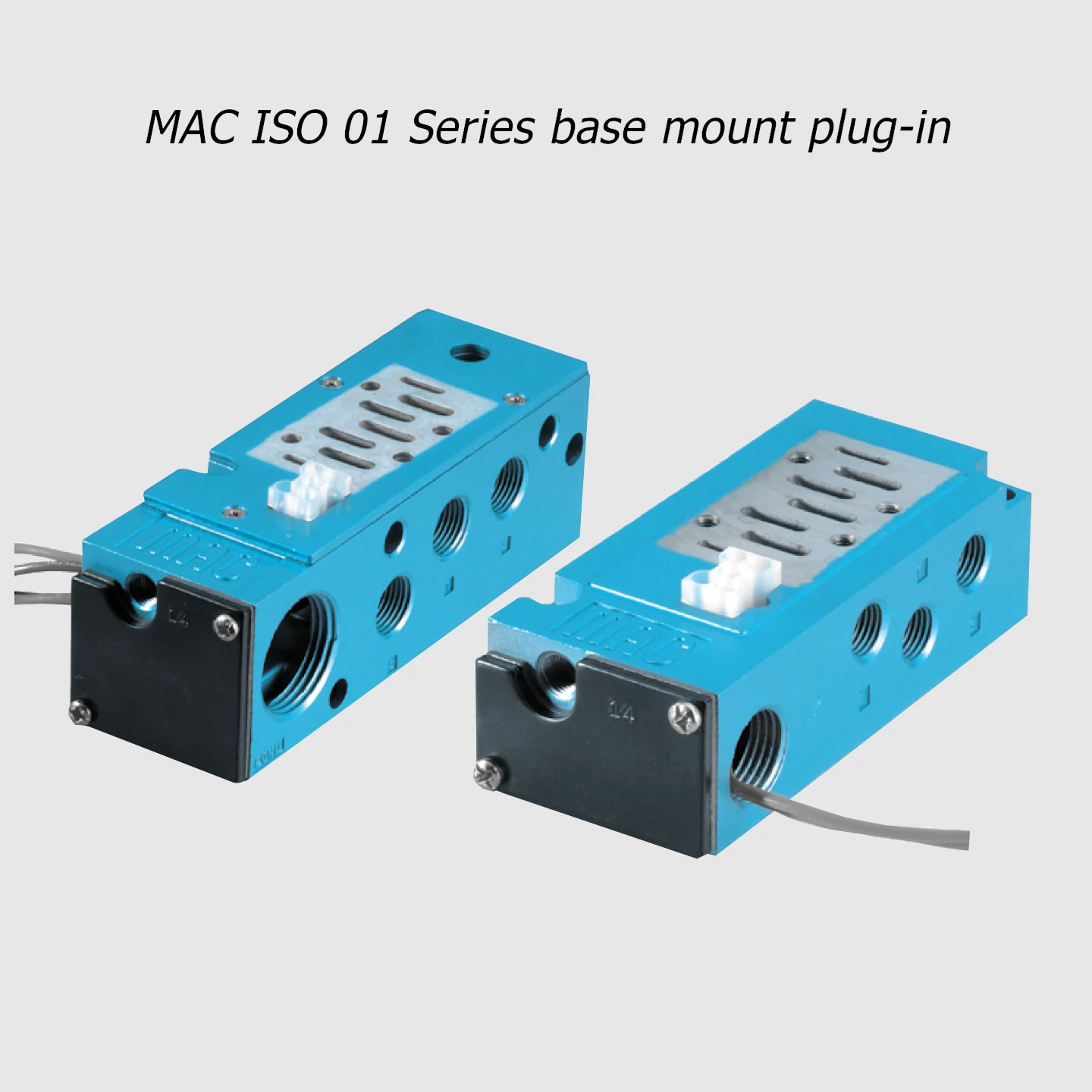

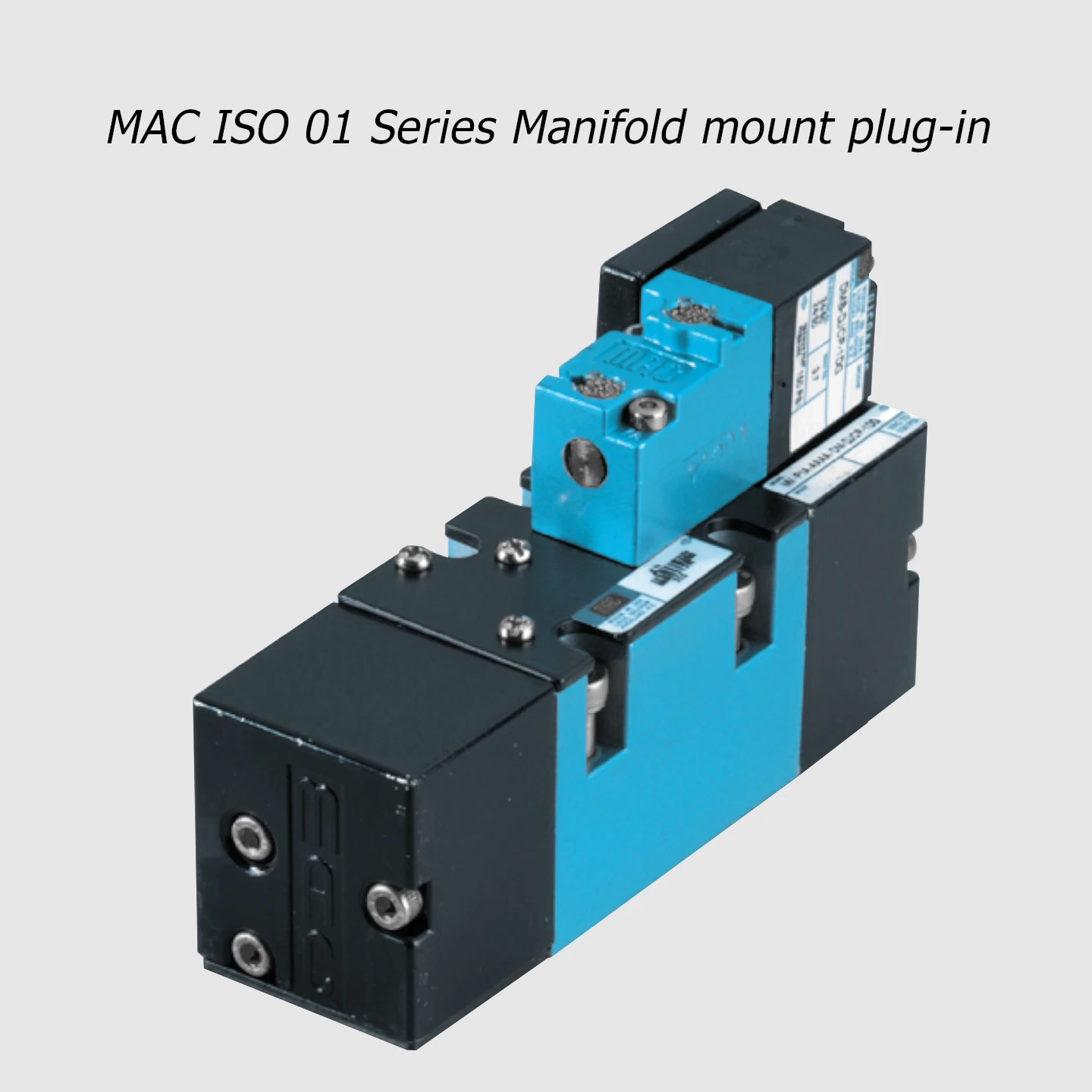

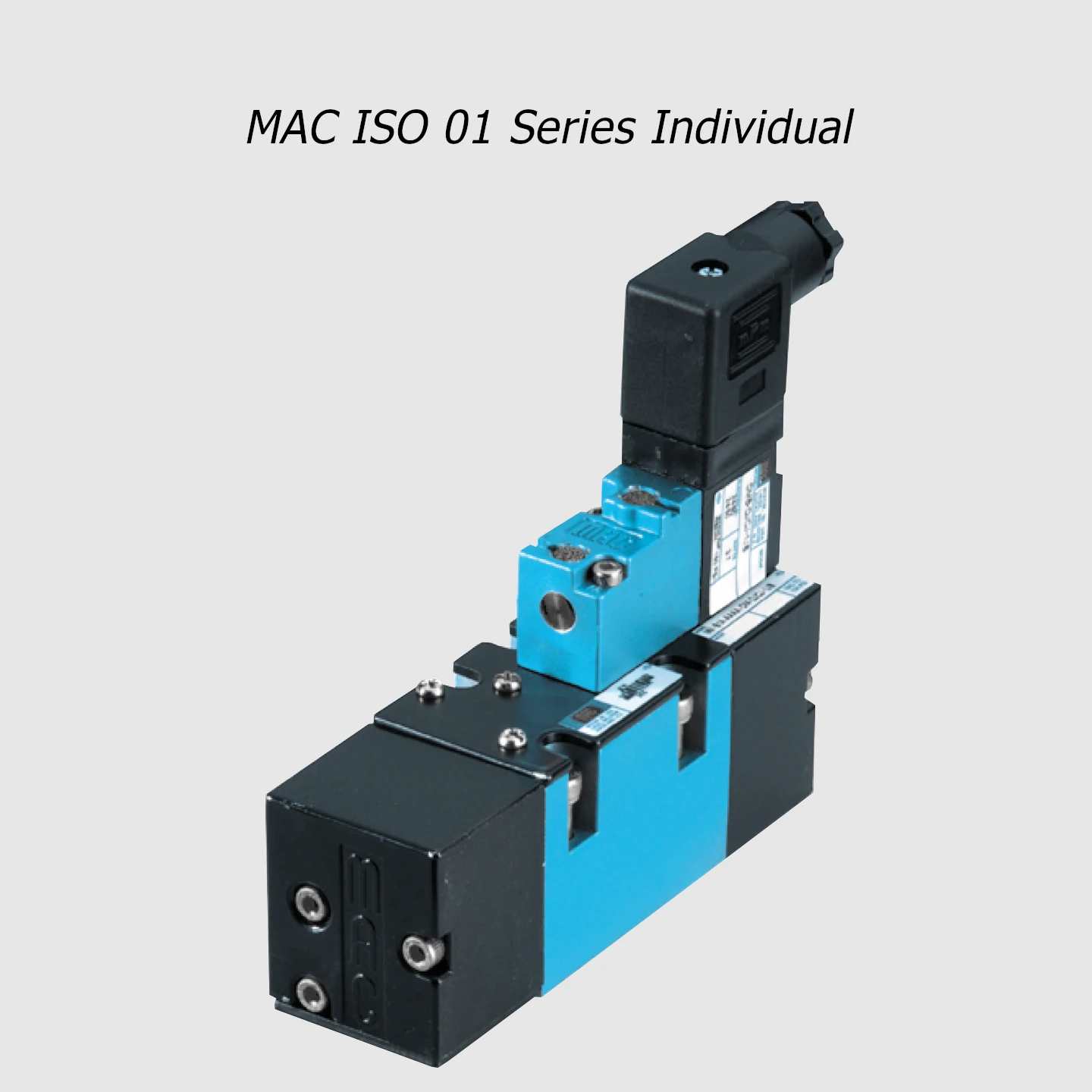

Configuraties: Indivdual, Sub Base/Manifold

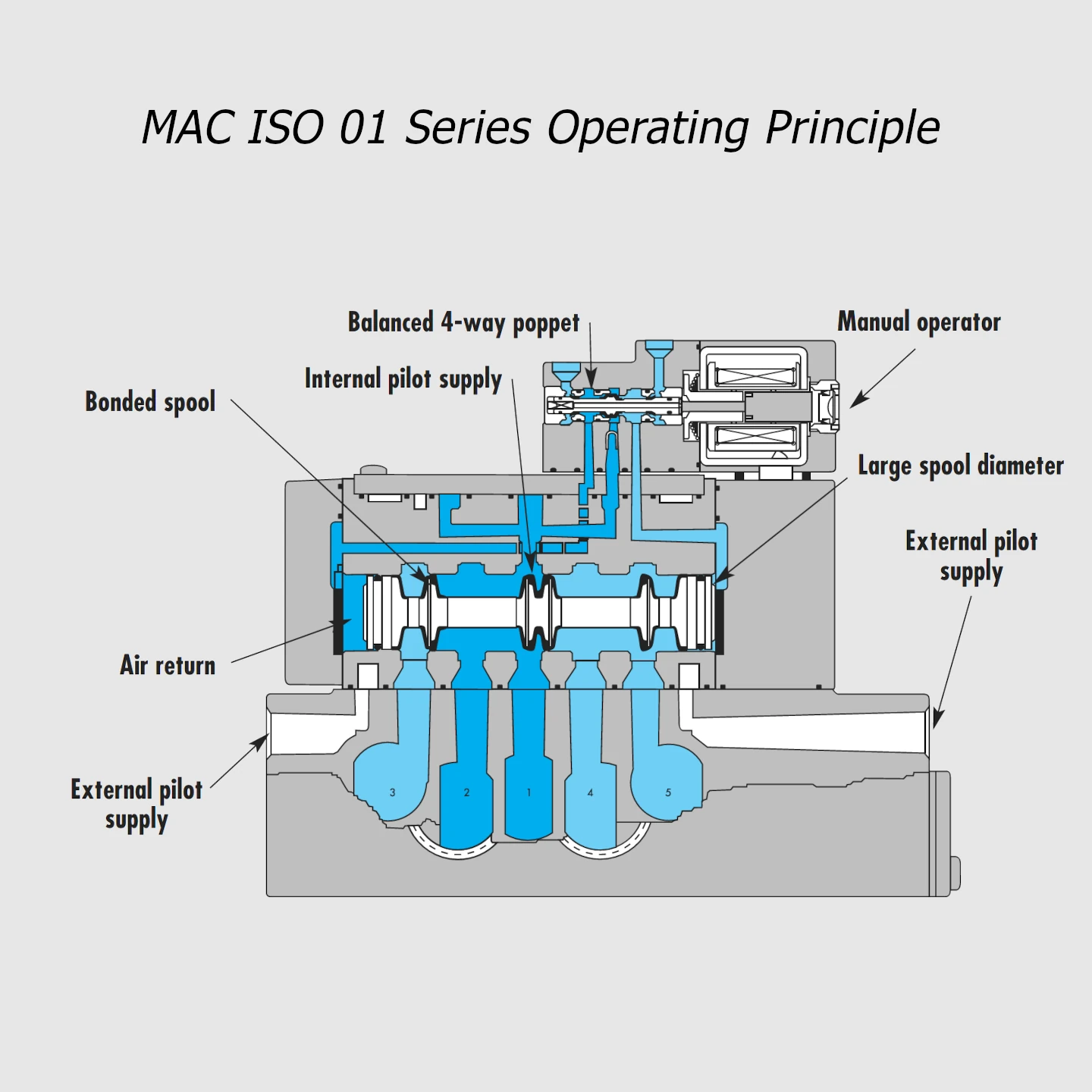

The MAC ISO 01 Series is a versatile 4-way solenoid piloted spool valve or Remote Air controlled. In accordance ISO 15407/1 et ISO 15407/2.
This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.
Versatility in piping means the valve can be piped as a 5-way or 3-way, single or dual air pressure inlet. Can be used for compressed air, vacuum, diverter or selector applications.

Our one piece bonded seal spool means longer life and easy maintenance.

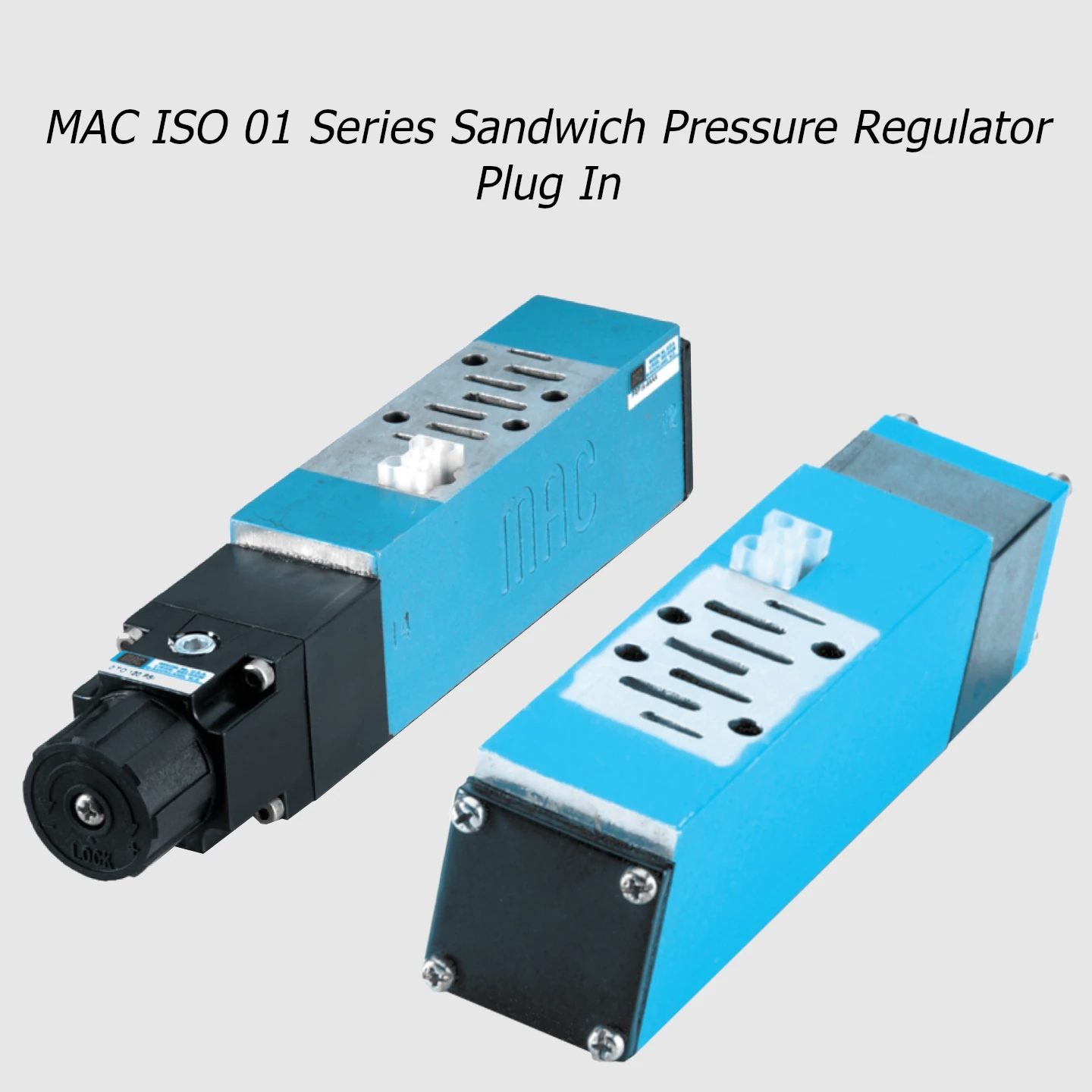

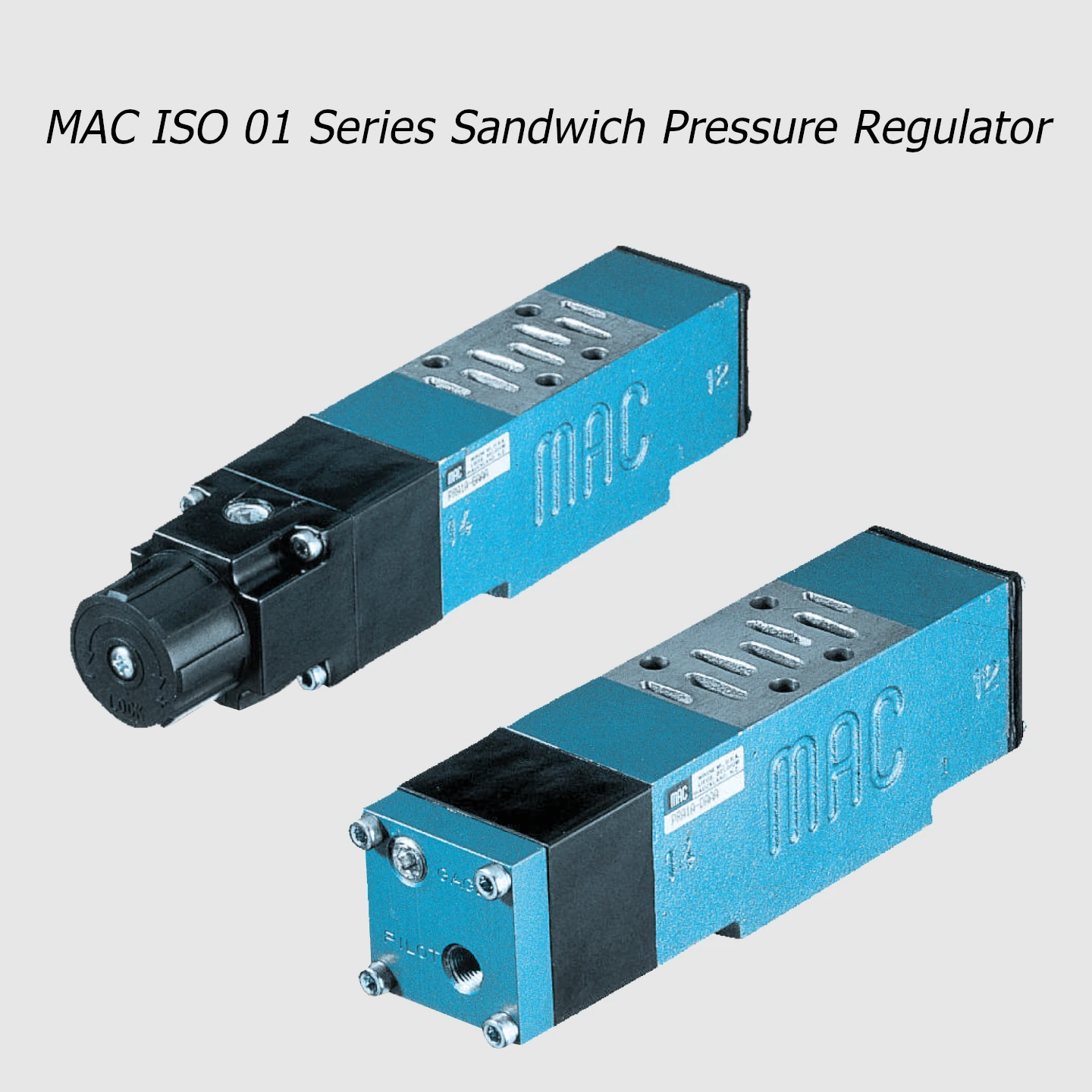

You can choose from individual or manifold versions, plug-in or non-plug-in, and there are options for integral adjustable Pressure controllers.

Advantages

  • Width 26 mm
  • High force MACSOLENOID®.
  • Integral 4-way pilot design.
  • Internal or external pilot compressed air connection.
  • 5/2 function, single or double operator.
  • 5/3 function, double solenoid, open centre, closed centre and pressure centre.
  • Single or dual pressure inlet, vacuum or compressed air.
