6300 Serie solenoid valve 1/4″ – 1/2″ 3000Nl/min

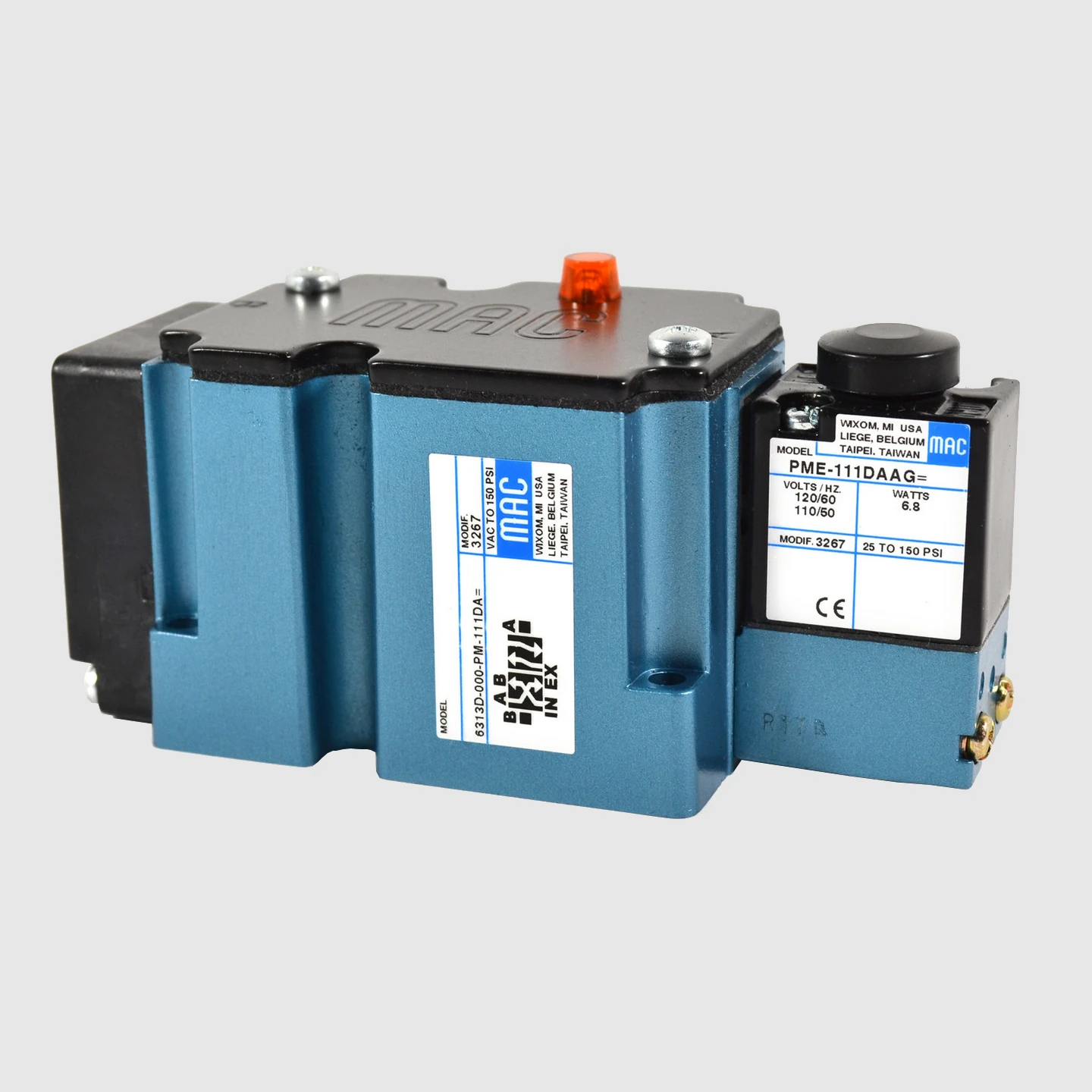

The MAC Valves 6300 Series is a powerful and compact 5-way spool valve with solenoid pilot control. This valve is designed for demanding industrial applications that require robust and consistent performance. With a maximum debit of 3000Nl/min and port sizes of 1/4″, 3/8″ and 1/2″, it offers impressive flow in a small size.

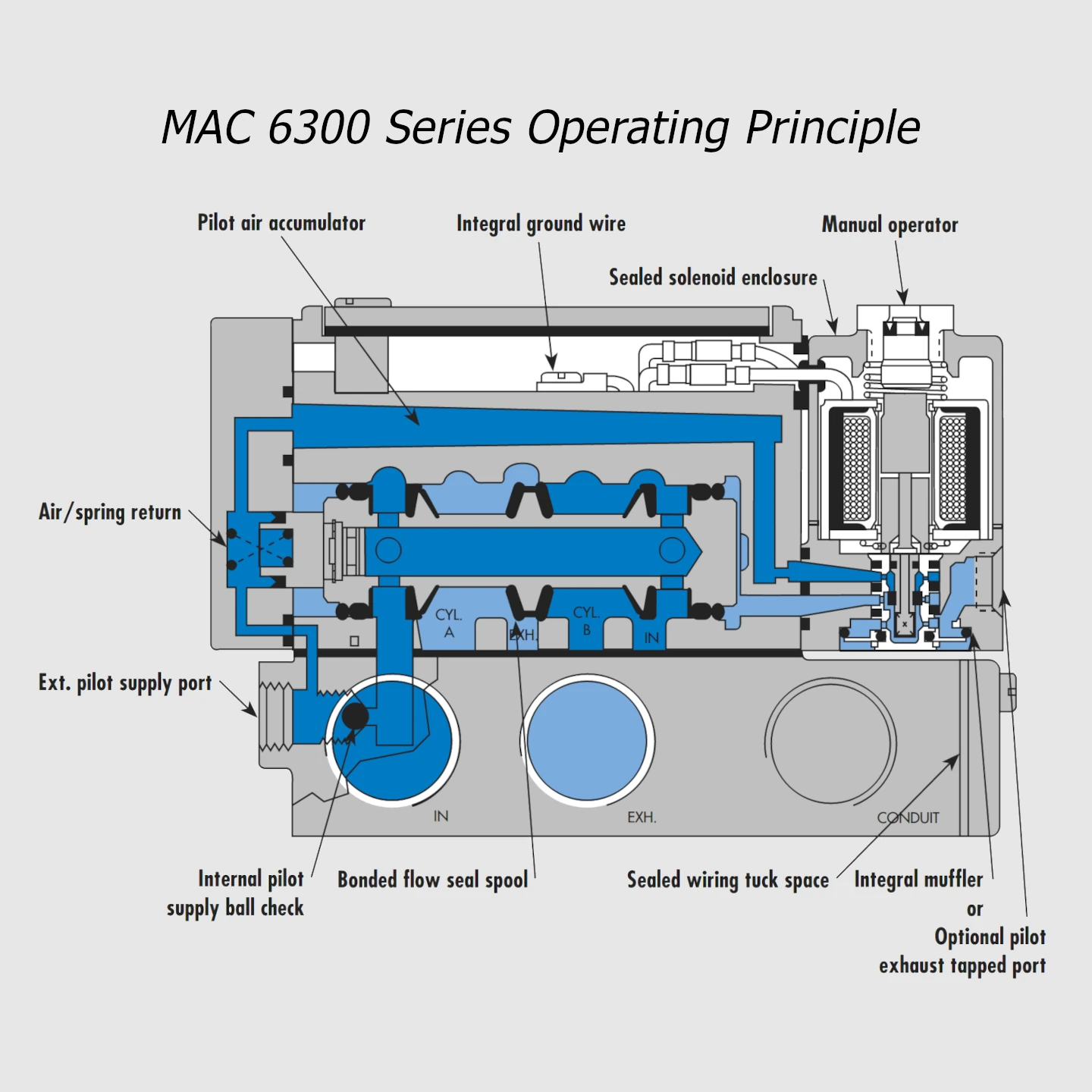

Thanks to the balanced poppet in the pilot and combined air/spring return, the 6300 Series shifts reliably and evenly, even with varying intake pressures. The simple bonded spool design with a rub effect minimizes friction and prevents jamming, extending life and facilitating maintenance. The short stroke allows for quick changeover with high shifting forces.

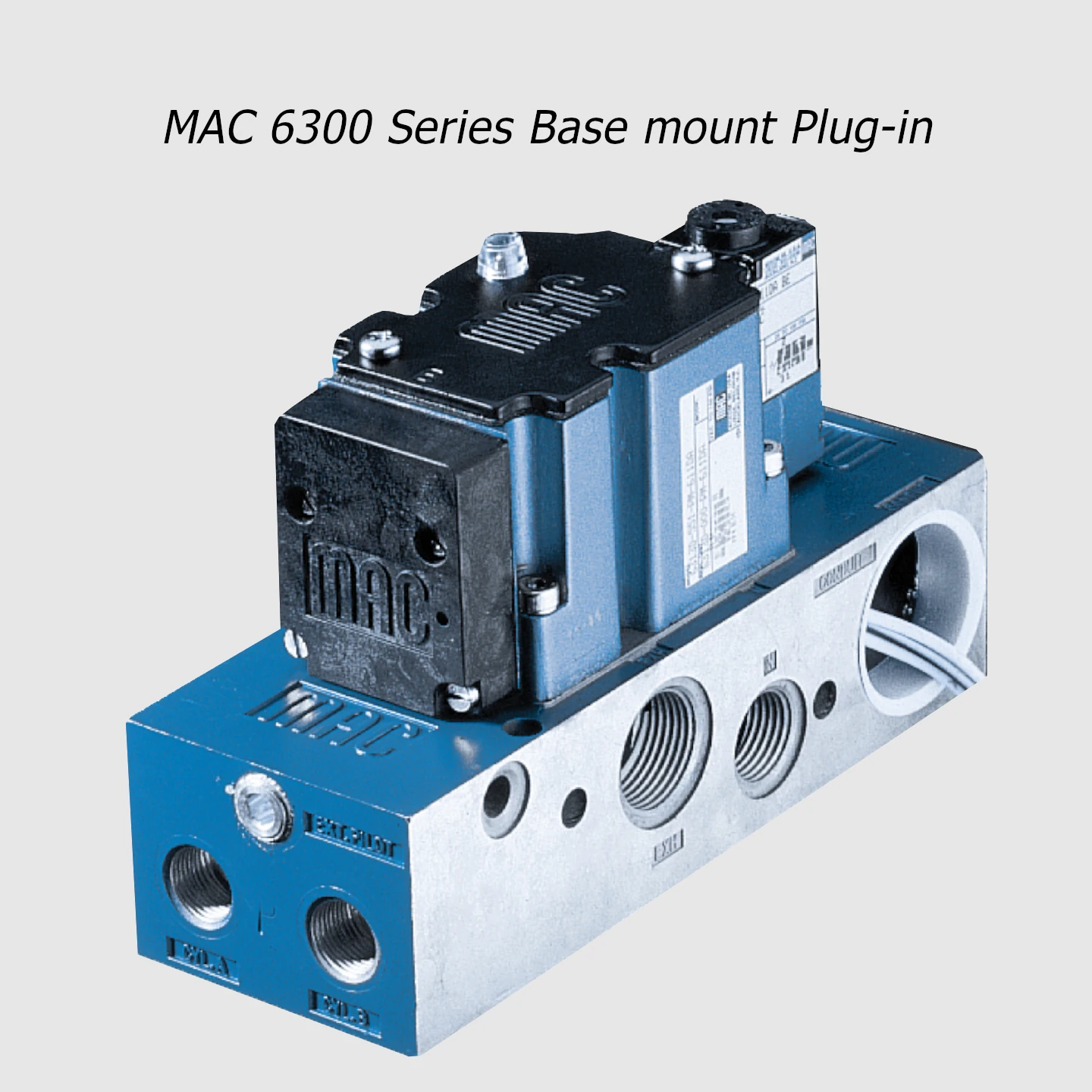

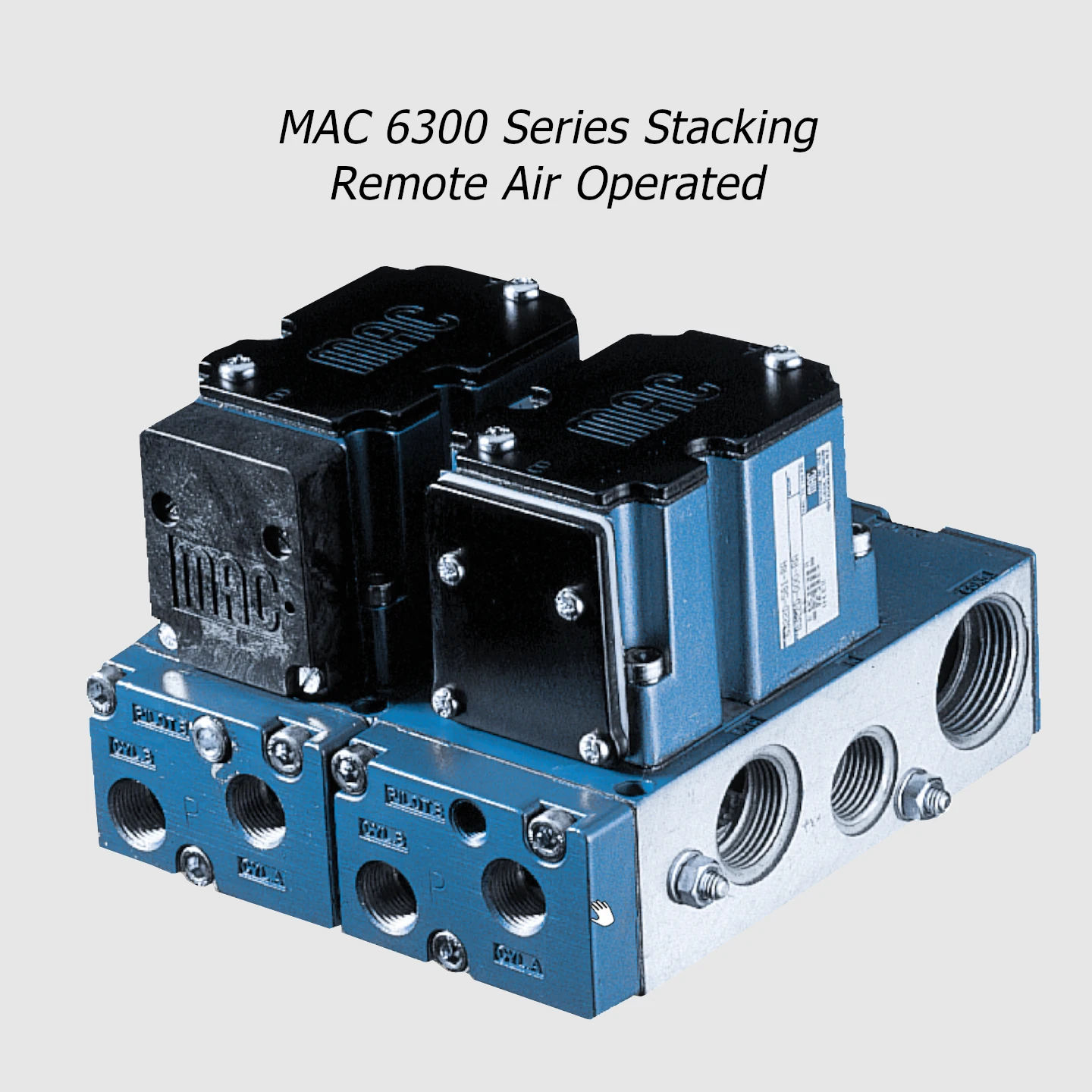

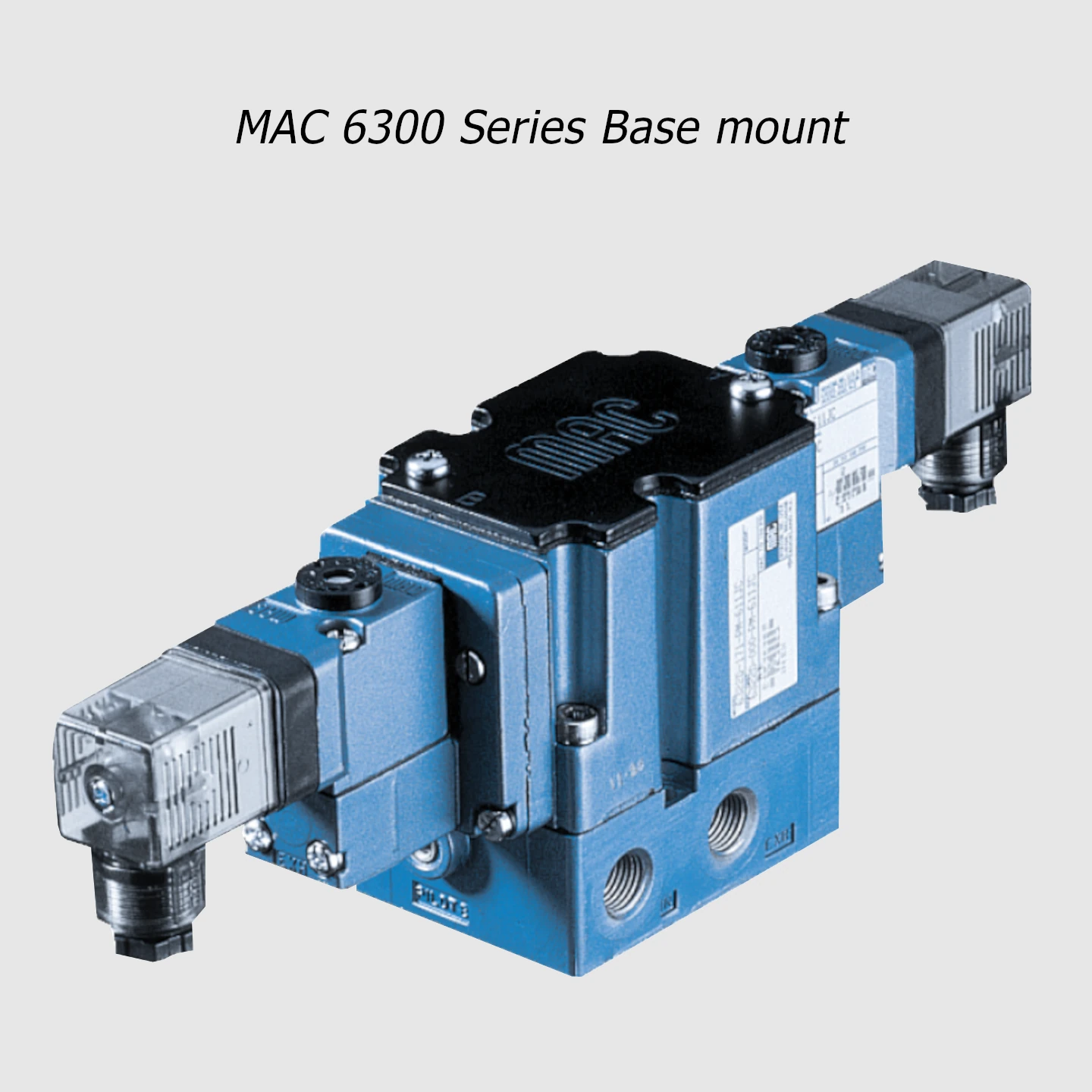

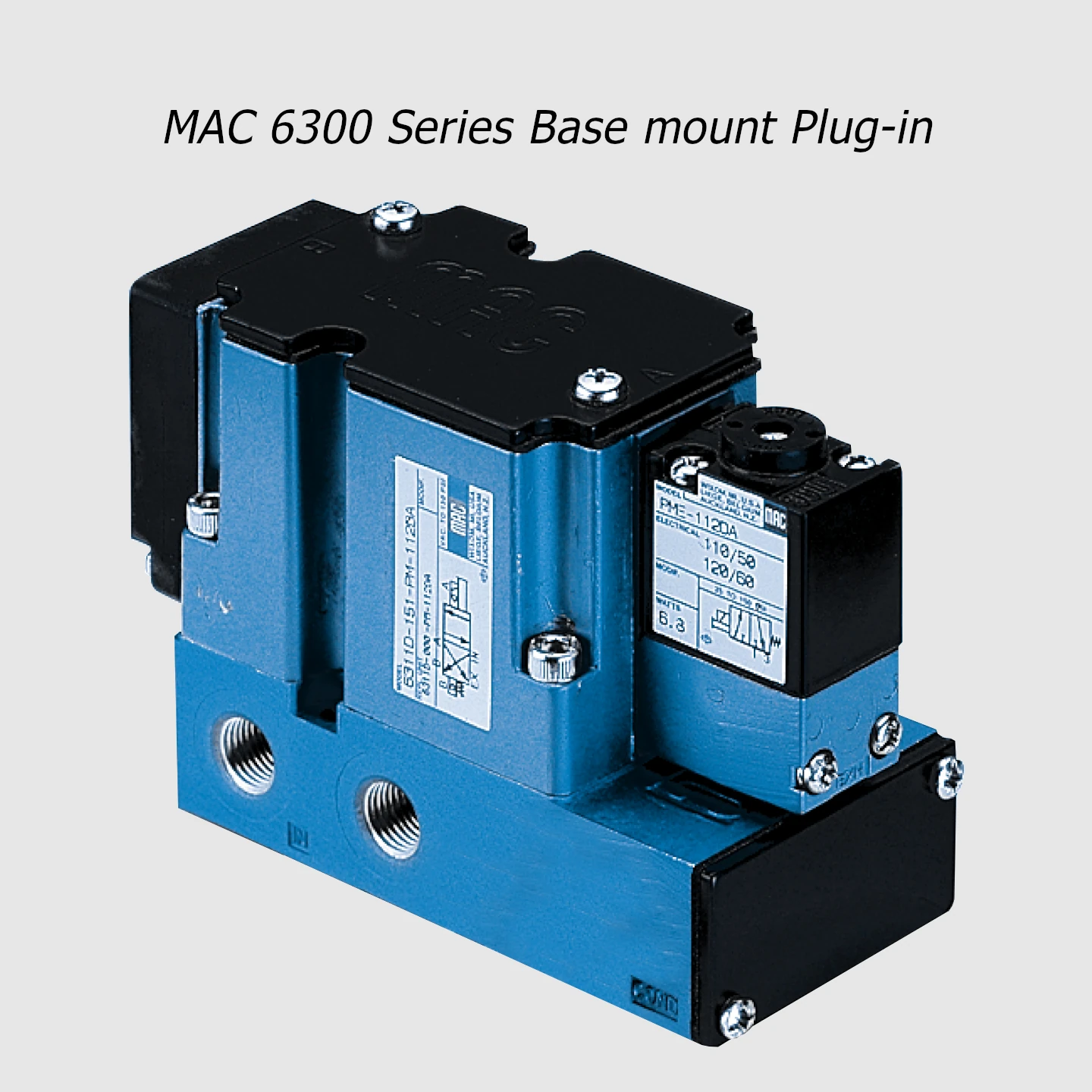

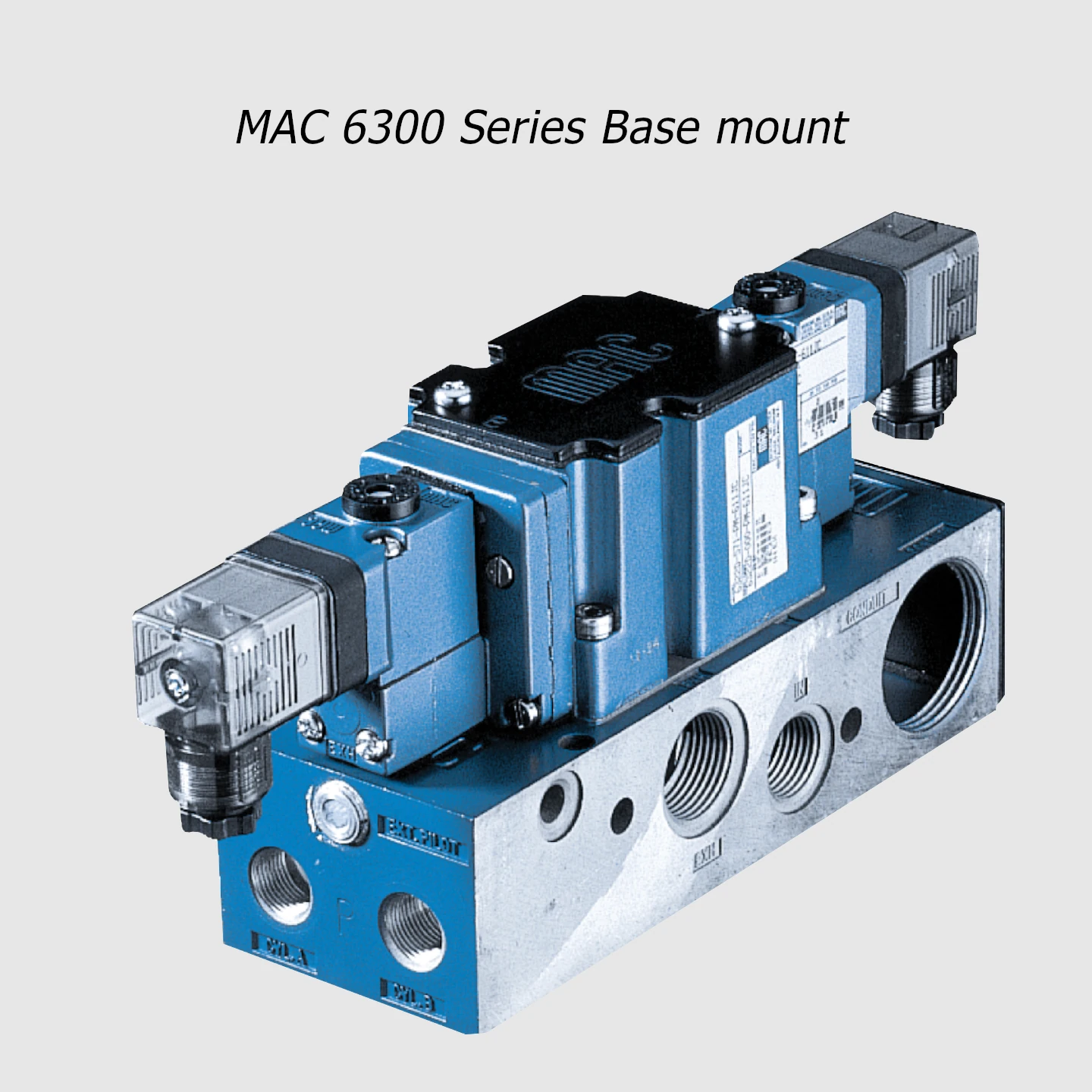

The 6300 Series is modular and easily adapted as 4-way, 3-way, 2-way, normally closed or normally open. It can also function as a vacuum, diverter or selector valve, increasing flexibility. It is available as an individual sub-base (plug-in or non plug-in), manifold or remote-air version. Optional intrinsically safe versions and versions with dampers or drain pipes are available.

Request a quote today and discover how the 6300 Series enhances your installation with compact power, flexibility and reliable performance
