Technical Data

  • Voltage range: from 4.5 V to 240 V (depending on model)
  • Switching capacity: up to 10 W / 8 VA
  • Max. switching current: 400 mA (Reed), 80 mA (GMR), 150 mA (GMPI)
  • Protection class: IP67 according to EN 60529
  • Operating temperature: from -25 °C to +90 °C
  • Connection: M8 or M12, 2- or 3-core FROR cable, gray

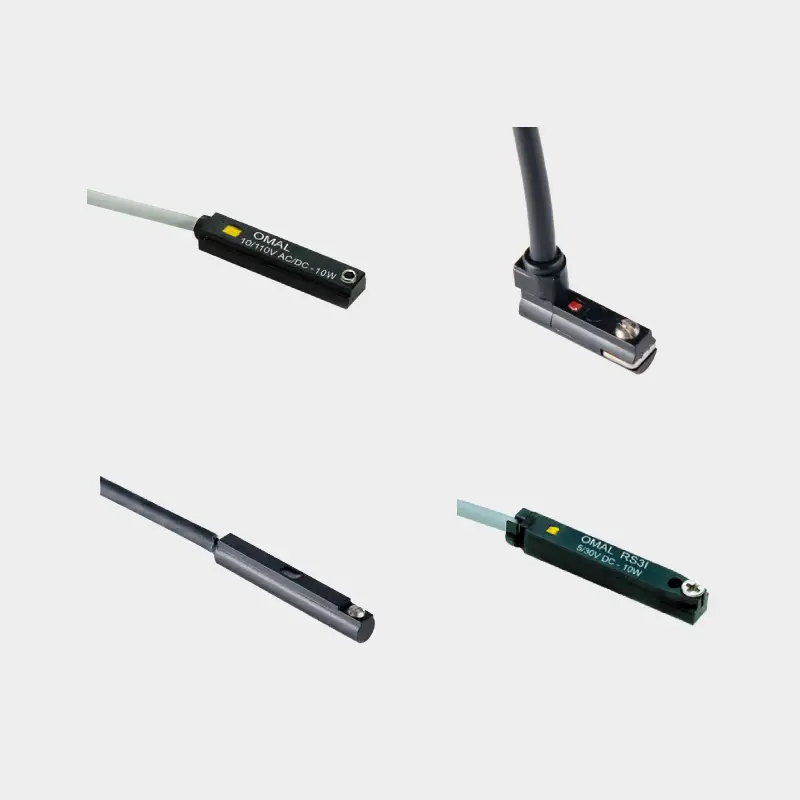

Omal magnetic sensors

Omal’s magnetic sensors are designed for accurate detection and reliable switching in automation and pneumatic applications. They are available in M8 and M12 versions with different mounting types: snap or screw mounting, and in straight or angled versions. The sensors operate on PNP logic and are equipped with an LED status indicator for easy diagnosis.

Product types:

  • RS2T / RS2I / RV2T / RV2I – Reed sensors with 10–240 V AC/DC power supply
  • RS3T / RS3I – Reed sensors 5–30 V DC
  • GMPI / GMPT – GMR PNP sensors 5–30 V DC
  • GMPA / GMPB / GMPC – GMR sensors with different configurations and LED colors
