Technical Data

  • Bores: 19 mm, 25 mm, 29 mm and 35 mm (3/4″, 1″, 1-1/8″, 1-3/8″)
  • Stroke Range: 6 mm to 305 mm (depending on model and bore)
  • Pressure Range:
    • A3V and A3: 1.4 to 10 bar (air)
    • H3V: 2.8 to 100 bar (hydraulic)
  • Temperature Range: -29°C to +82°C
  • Rod Diameters: 6 mm, 8 mm, 10 mm and 12 mm
  • Materials:
    • Piston: aluminum alloy
    • Rod: anodized aluminum or stainless steel
    • Seals: Nitrile, PTFE or fluoro-elastomer
  • Mounting Options: foot mount, flange mount, thread mount and pivot mount

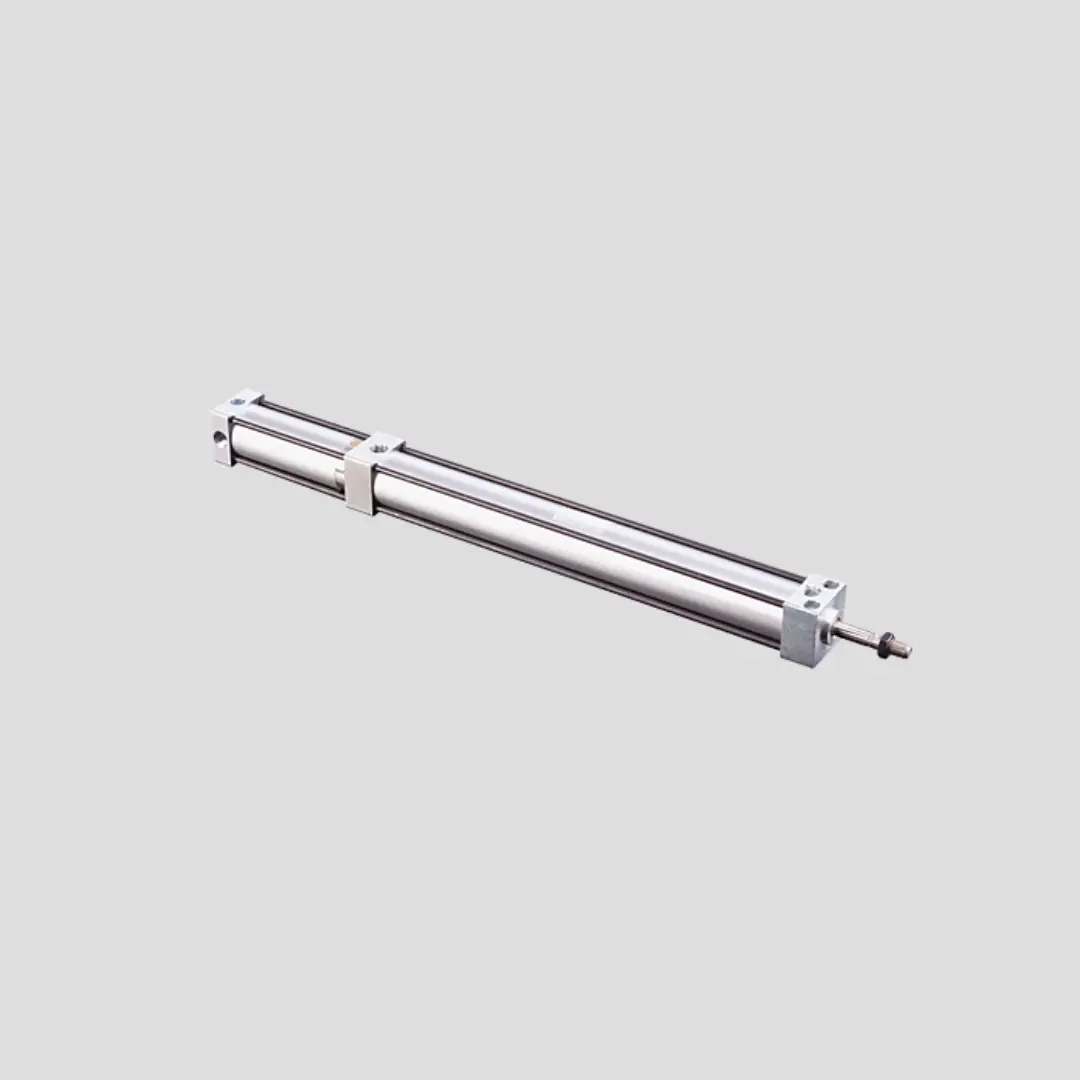

Series A3, A3V, H3V 3-position pull rod cylinder

The A3V, H3V, and A3 cylinders offer three linear positions from the piston rod and can be used in complex automation systems. The NFPA repairable design ensures lower maintenance costs and less downtime. With various mounting options and the possibility of magnetic pistons or shock absorbers, these cylinders adapt to different industrial situations. They function reliably in both pneumatic and hydraulic systems.

Advantages

  • Three linear positions for versatile applications
  • Long life and low maintenance
  • NFPA repairable for long-term savings
  • Wide range of mounting options for easy installation
  • Options for magnetic pistons and shock absorbers
  • Suitable for both pneumatic and hydraulic systems
