Technical Data

  • Bore size: Ø 19 to 50 mm
  • Stroke length: up to 914 mm
  • Pressure range: 1.4 to 10 bar
  • Temperature range: -29°C to +82°C
  • Speed: max. 2 m/s
  • Repeatability: ±0.025 mm
  • Service life: factory lubricated
  • Maximum load: horizontal 77 to 2900 N, torsion 10.5 to 294 Nm

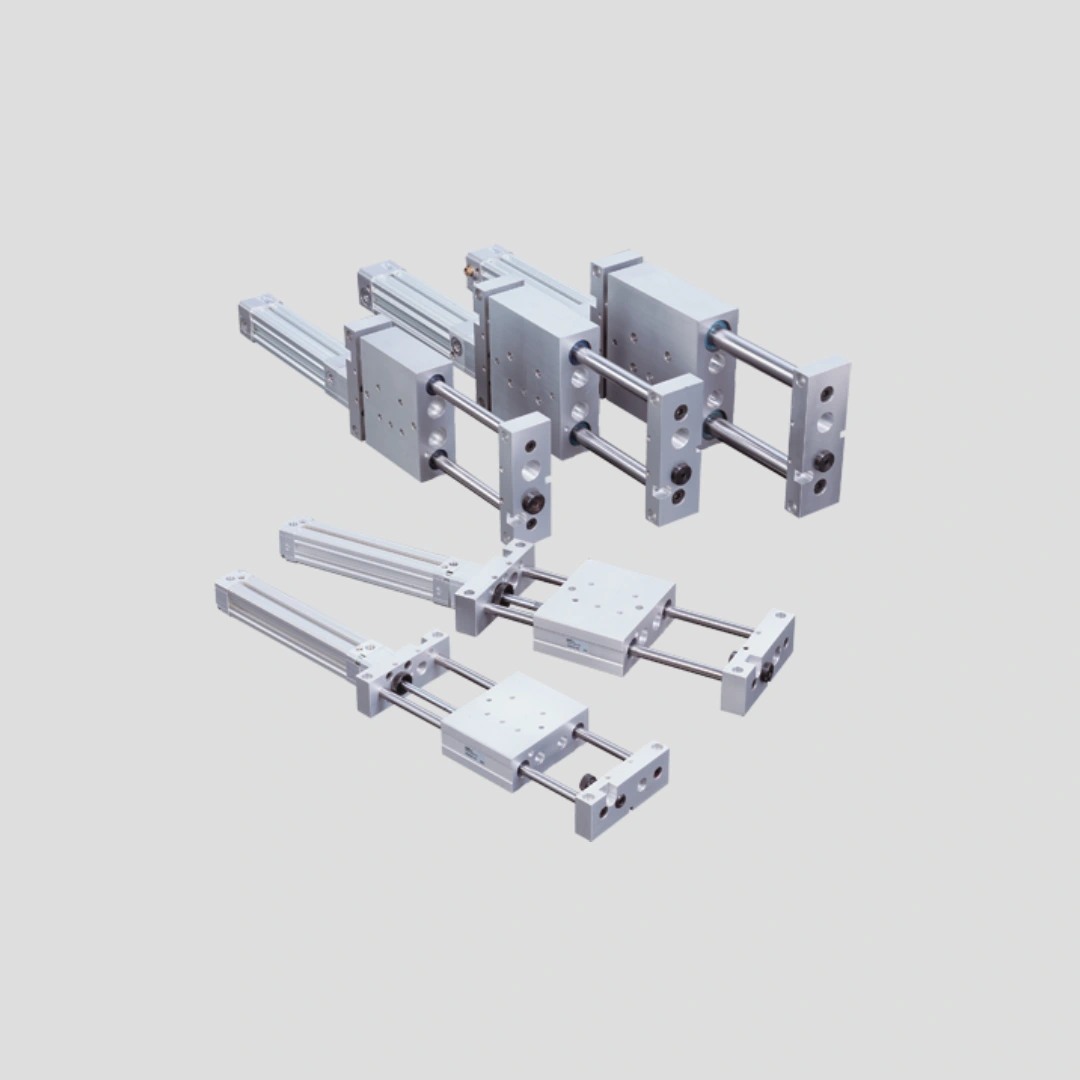

SG-Series High Load Gantry Linear Slides

SG-Series High Load Gantry Linear Slides offers long travel and high load capacity. Standard travel up to 914 mm and travel adjustment. Powered by PHD’s rugged CV-series cylinder with improved seal and bearing support. Three-position cylinder available as standard option.

Advantages

  • Long travel lengths and high load capacity
  • Standard travel adjustment
  • TC bushings for maintenance-free use and higher load capacity
  • Modular design for easy integration
  • Options for shock absorbers, proximity switches, and port control
