Technical Data

  • Torque at various pressures:
    • 742: 2.4 Nm to 10.2 Nm
    • 762: 4 Nm to 17 Nm
  • Capacity per stroke: 27.2 cm³ to 41.3 cm³
  • Weight: 0.4 kg to 0.51 kg

Val-U-Act (VA) Series (6 mm – 76 mm):

  • Torque at various pressures:
    • 812: 7.9 Nm to 30.9 Nm
    • 822: 15.8 Nm to 58.8 Nm
    • 832: 31.6 Nm to 115.5 Nm
  • Capacity per stroke: 45 cm³ to 180.4 cm³
  • Weight: 1.13 kg to 6 kg
  • Spring return weight: 1.4 kg to 4.1 kg

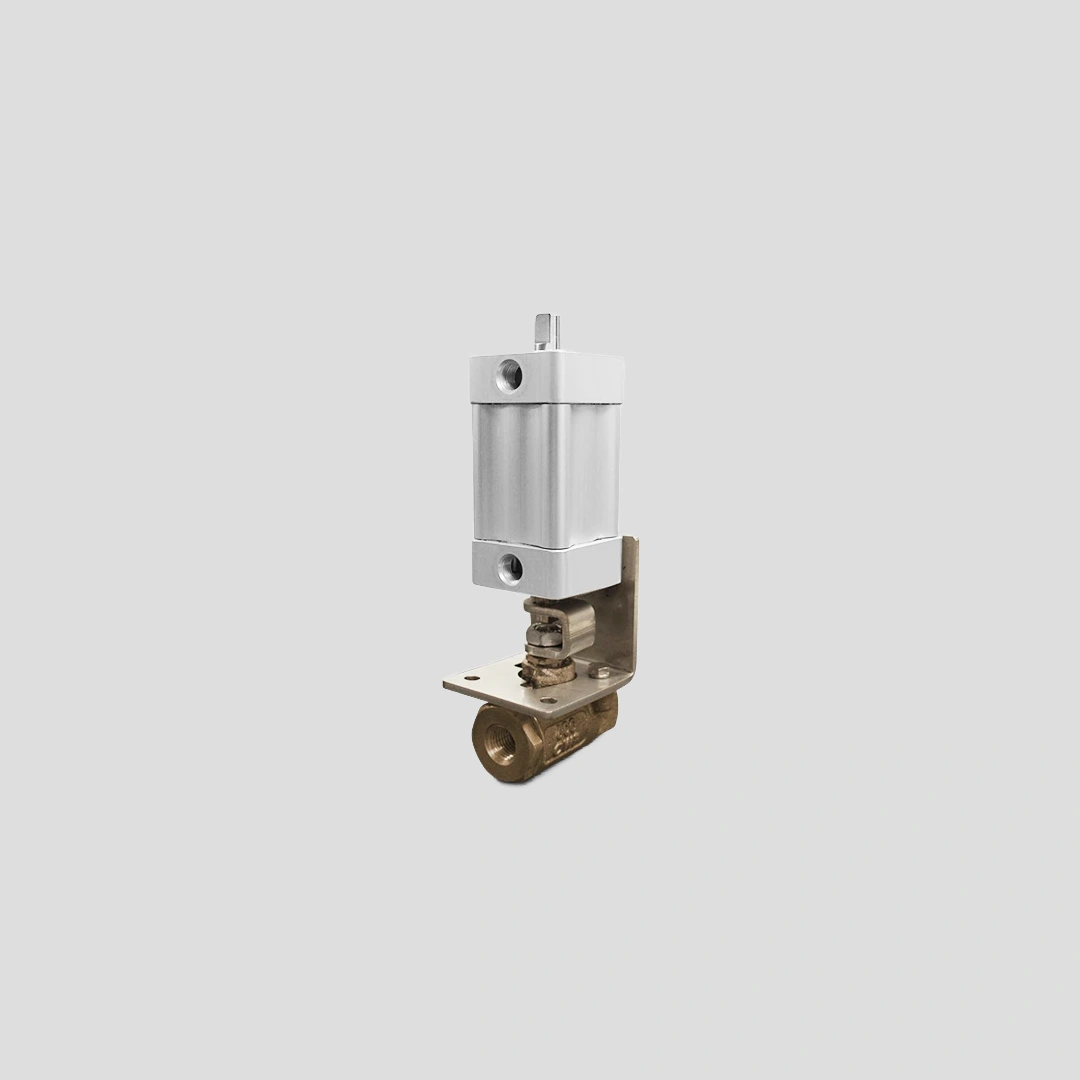

Val-U-Act Series Spring Return Operator

The Val-U-Act Series Spring Return Operator systems are designed for precise and reliable valve operation in industrial applications. These systems offer double-acting and spring-return options, and are suitable for valve sizes from 6 mm to 76 mm. With the use of polyurethane vane seals and a simple design with one moving part, they provide long life and smooth movements.

Advantages

  • Simple design with one moving part for smooth and precise movements
  • Long life due to polyurethane vane seals
  • Suitable for various valve sizes and applications
  • Options for double-acting and spring-return systems
  • Flexible mounting options and switch options
