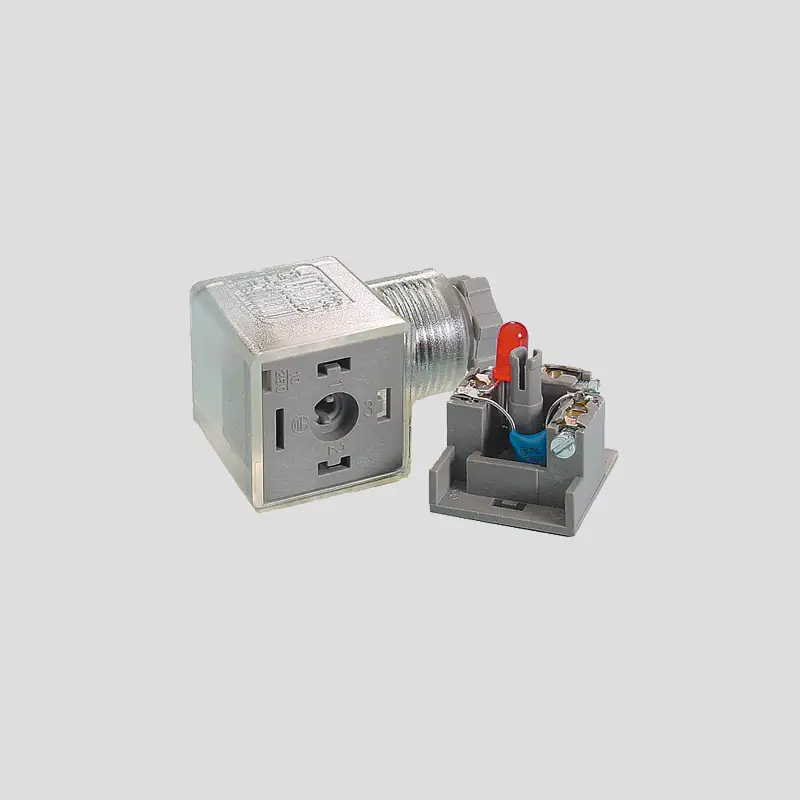

A1T – A2T PG11 solenoid valve connectors DIN 43650

Omal’s A1t – A2t PG11 solenoid valve connectors with (DIN 43650 are reliable connection for solenoid valves. These models are suitable for 2- or 3-pole connections (+PE), feature 18 mm contact spacing and a PA66 housing reinforced with 30% glass fiber and resistant to high temperatures up to +125 °C.

The connectors are available in standard form (A1 = 26.8 mm, A2 = 32 mm) and also in transparent versions with visual status indication via LED in yellow, red or green. Thanks to integrated electronic components such as LED indication, varistor, diode or bridge cell, these connectors provide additional protection against overvoltage, surge currents and faults.

For applications where reliability, EMC protection and fast installation time are crucial, these Omal solenoid valve connectors are an excellent choice. Mounting is via a PG11 gland (for cable diameter 8-10 mm) and included gasket + screw, and the degree of protection is IP65 according to EN 60529.
