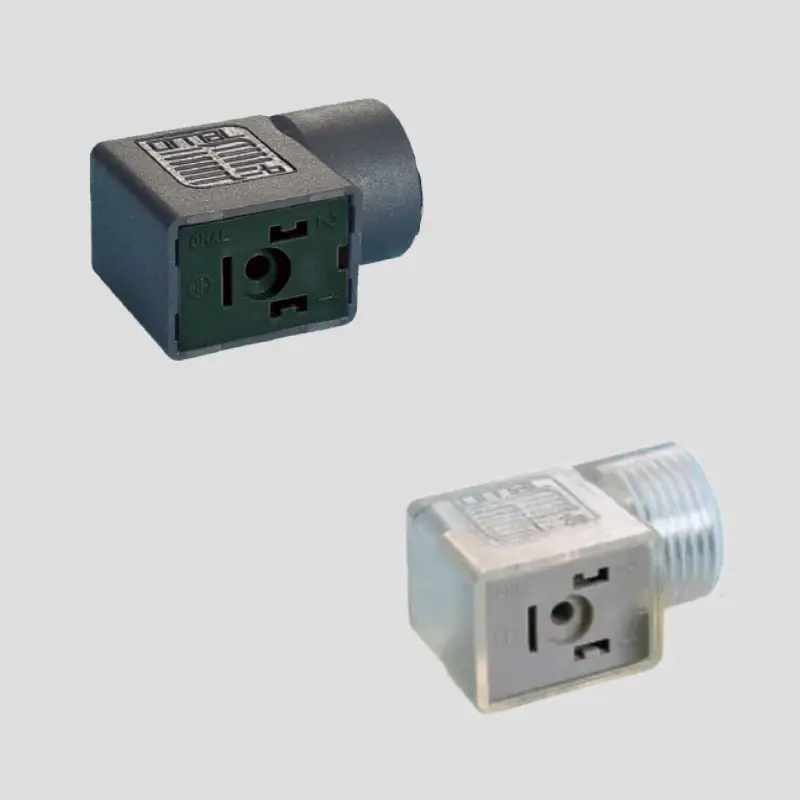

B1 – B1T 1/2” industrial standard solenoid valve connectors

The B1 and B1T 1/2” NPTF INDUSTRIAL are solenoid valve connectors designed in accordance with EN 175301-803 type B (DIN 43650). Both models feature a strong PA 66 housing with 30% glass fiber reinforcement, resistant to harsh industrial environments.

The B1 is the standard version without electronics, while the B1T is equipped with integrated electronic components such as LEDs, varistors, or bridge rectification. Both B1 and B1T 1/2″ solenoid valve connectors have  a cable diameter range of 6 to 8 mm and offer an IP65 protection rating according to EN 60529, ideal for applications where dust and splashing water are present.

The gold-plated or silver-plated CuZn contacts carry a nominal current of 10 A (max. 16 A), suitable for up to 250 V AC / 300 V DC. The center distance is 11 mm and the operating temperature ranges from -30°C to +125°C. The electronic version (B1T) supports specific circuits such as LED indication, overvoltage protection, or diode protection.

The B1 and B1T 1/2” solenoid valve connectors are available in various designs and configurations (e.g., H12, H6) and can also be customized on request.
