Connection: DIN 43650 Form A (18 mm) to GT DT04-2P (2-pin receptacle)
Voltage: 0-120 V AC 50/60 Hz or up to 250 V DC
Max. current: 10 A
Light option: available with or without LED indication
Suppression: optional MOV or diode (DC)
Temperature range: -20 °C to +80 °C
Environmental protection: IP67 and NEMA 6
Housing: TPU (DIN side), thermoplastic with silicone seal (GT side)
Number of contacts: 2
Includes integrated gasket and retaining screw
Application: mobile hydraulics, machinery, valve systems, OEM vehicles

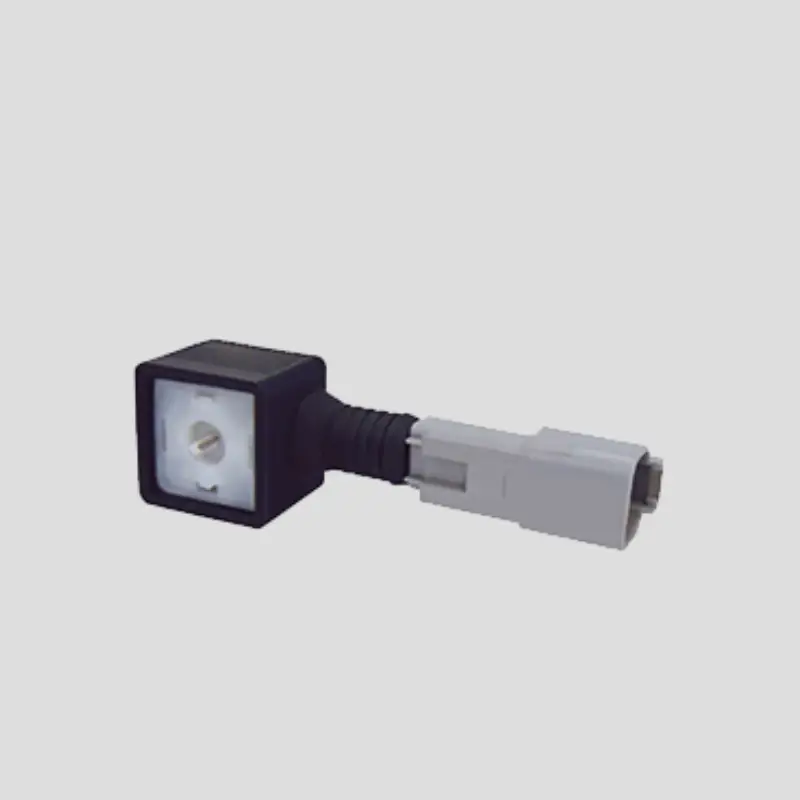

The Canfield 5JGT is part of the GatorMate™ series. This is a fully molded adapter that combines a classic DIN 43650 Form A (EN175301-803) connector with a 2-pin GT DT04-2P receptacle. Designed specifically for mobile hydraulics, this connector allows direct coupling between standard solenoid valves and GT connector systems as commonly used on machines and vehicles.
The 5JGT is available in versions with or without LED indication and with or without overvoltage suppression (MOV or diode for DC). Thanks to the overmolded housing in TPU and thermoplastic, the connector can withstand harsh conditions. It features an integrated silicone seal and a protection rating of IP67/NEMA 6, making it completely dust-proof and water-resistant.
Connection is via a 2-pin receptacle and supports voltages up to 120 V AC or 250 V DC, at a maximum current of 10 A. The standard 18 mm DIN Form A dimensions are retained, making the 5JGT suitable for retrofit or direct replacement in existing installations.
Want to make sure the 5JGT fits within your hydraulic system? Request your quote today and experience the convenience of fast, safe and durable coupling between DIN and GT.
