KA1 – KA2 series – Solenoid valve connectors

The Omal KA1 / KA2 is a high-quality solenoid valve connector with integrated electronic components. For reliable operation in demanding industrial environments, this is the right choice. This connector features a transparent housing for direct visibility of the LED status and complies with EN 175301-803 Type A (DIN 43650-A). The KA series is suitable for applications with solenoid valves, pressure switches or sensors.

The KA1 and KA2 models support many connection options: PG9, PG11 or 1/2″ NPTF, with compatible cable diameters from 6 mm to 10 mm. The silver-plated or gold-plated CuZn contacts offer a rated current of 10 A and voltages up to 250 V AC / 300 V DC, depending on the internal circuit. Thanks to the PA66 housing with 30% fiberglass, this connector can withstand temperatures from -30 °C to +125 °C, and meets protection rating IP65.

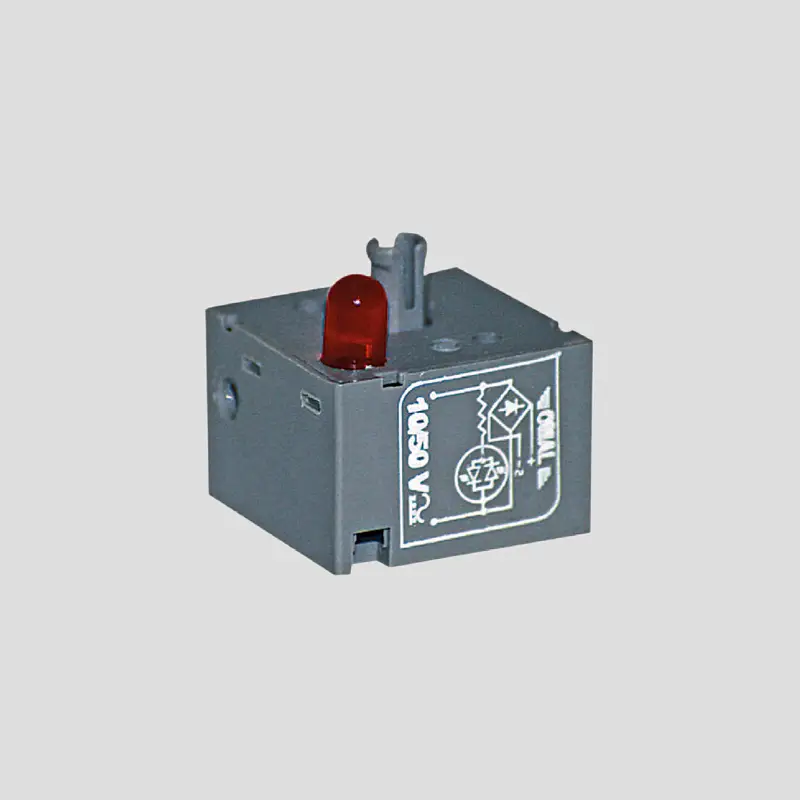

Depending on the version, the connector is available with built-in LED indication, varistors (VDR), diodes, or bridge rectification for surge suppression.

Wondering if the Omal KA1 or KA2 fits your installation?  Request a free quote from LDA Belgium here
