Technical Data

Number of poles: 3, 4, 5 or 8
Max. voltage:
4/5 poles: up to 250 V AC/DC
8 poles: up to 30 V AC/DC
Max. current:
up to 4 A (depending on version)
Contact material: Brass (CuZn) gold-plated (Au)
Pin diameter: 1 mm
Cable diameter: suitable for 4 – 8 mm
Operating temperature: -25 °C to +90 °C
Housing: PA 66 + 30% glass fiber (optional: zinc alloy nickel-plated – MT)
Screw ring: CuZn nickel-plated
Protection rating: IP67 (against dust and water)
Standardization: DIN EN 61076-2-101

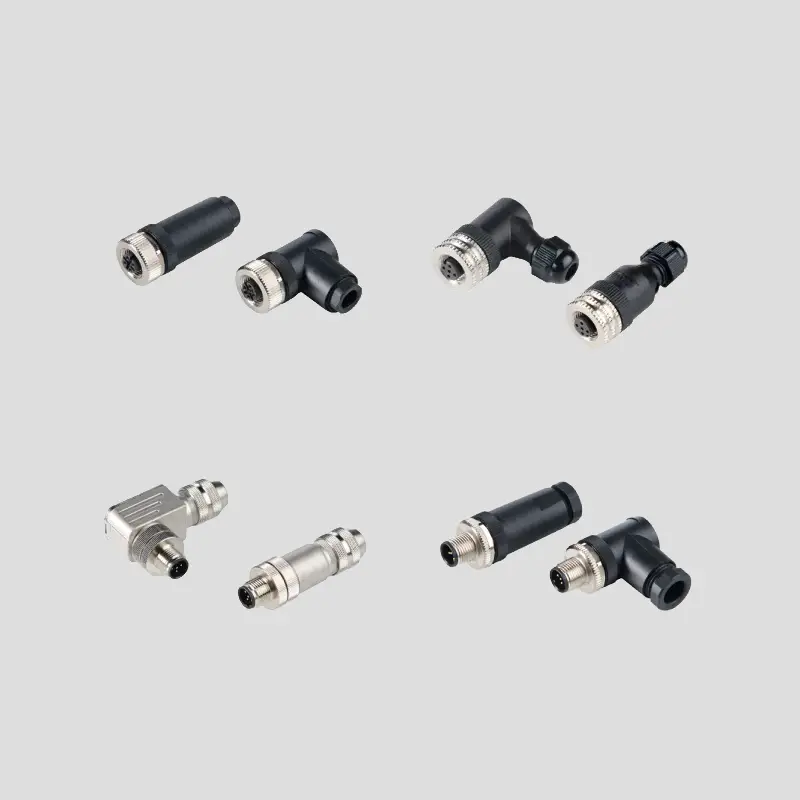

M12 C series Industrial round connectors

Omal’s M12 C Series round connectors are designed to meet the high demands of industrial automation, sensor technology and signal transmission. Thanks to their high-quality construction and flexible configuration, these connectors are suitable for a wide range of applications where precision, durability and a watertight connection are essential.

These connectors are available in both male and female versions, straight or angled, and available with or without pre-terminated cable. The housing is made of reinforced polyamide (PA 66 with 30% fiberglass) that meets V0 fire rating according to UL94. For applications in environments with higher mechanical or chemical stresses, a variant is also available with a nickel-plated metal housing (MT version).

The M12 C Series round connectors are designed for safe connection with an IP67 degree of protection in accordance with EN 60529, making them dust-tight and resistant to temporary immersion in water. The connectors are compatible with standard M12 x 1 threaded fittings and feature a nickel-plated brass metal locking ring for a secure and vibration-free attachment.

The M12 C Series is available with a variety of cable types, including:

– FROR/PUR/PVC/H03VVF/UL PVC

– Number of cores: 2 to 8

– Cross section: from 0.25 mm² to 0.75 mm²

– With or without shielding

– On request with labeling or specific colors

Advantages

Reliable signal transmission – Thanks to the gold-plated contacts, a stable electrical connection is guaranteed, with minimal transition resistance.
Water and dust proof according to IP67 – Suitable for industrial environments with moisture, dust or vibrations.
Versatile connection options – Straight, angled, male, female, with or without cable, and with a choice of various pole configurations.
Widely applicable – Suitable for sensors, actuators, signal and power connections in automation and mechanical engineering.
Flexible cable choice – Versions with PUR, PVC, FROR or LiYY cables, with or without shielding, depending on the application.
User-friendly – Easy to install thanks to standard M12 thread and locking system.
