S900 EU

MAC 900 Series solenoid valve 4/2, 1/8”-1/4”, 1400Nl/min

Function: 4/2 NC-NO
Max. Flow: 1400 Nl/min
Port sizes: 1/4", 1/8"

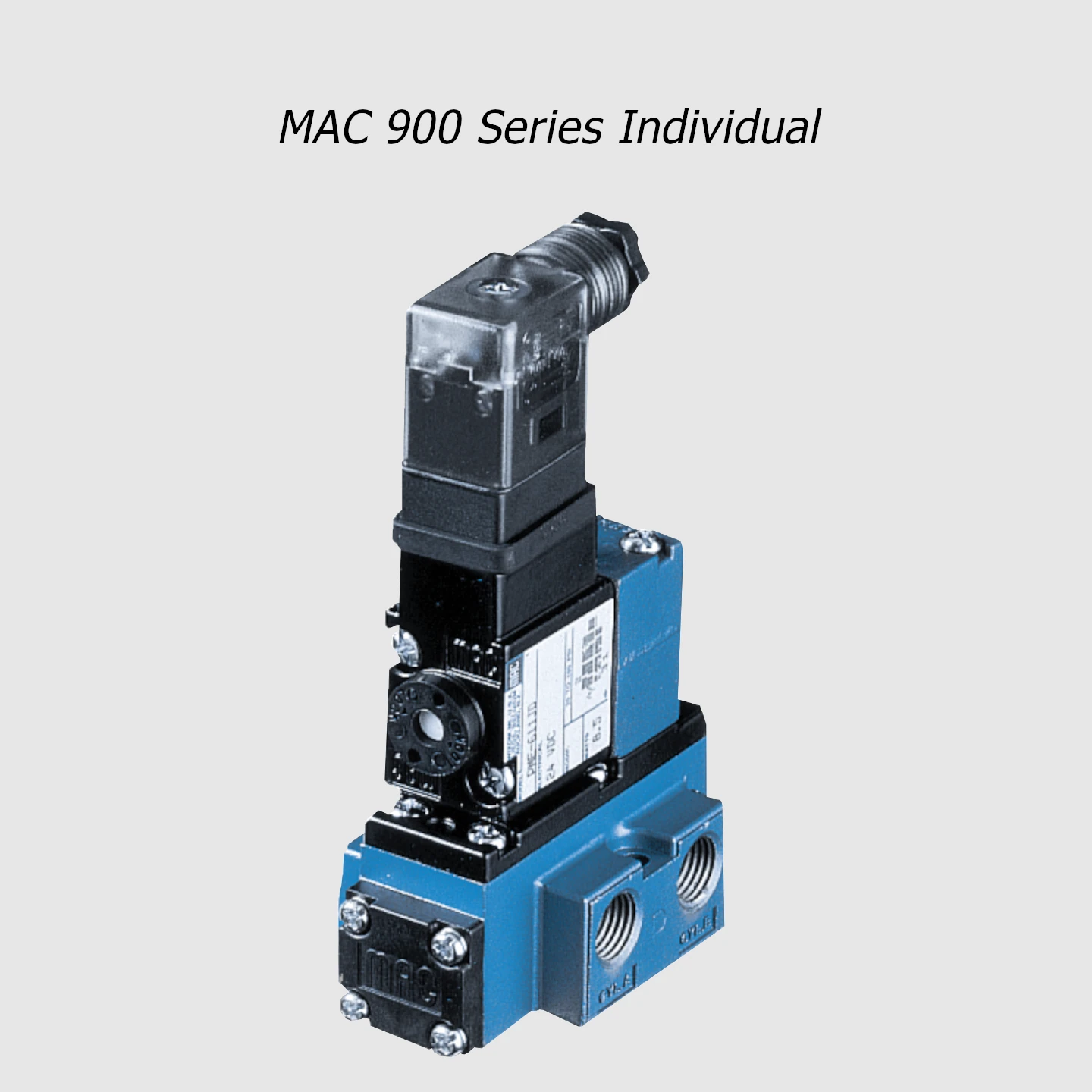

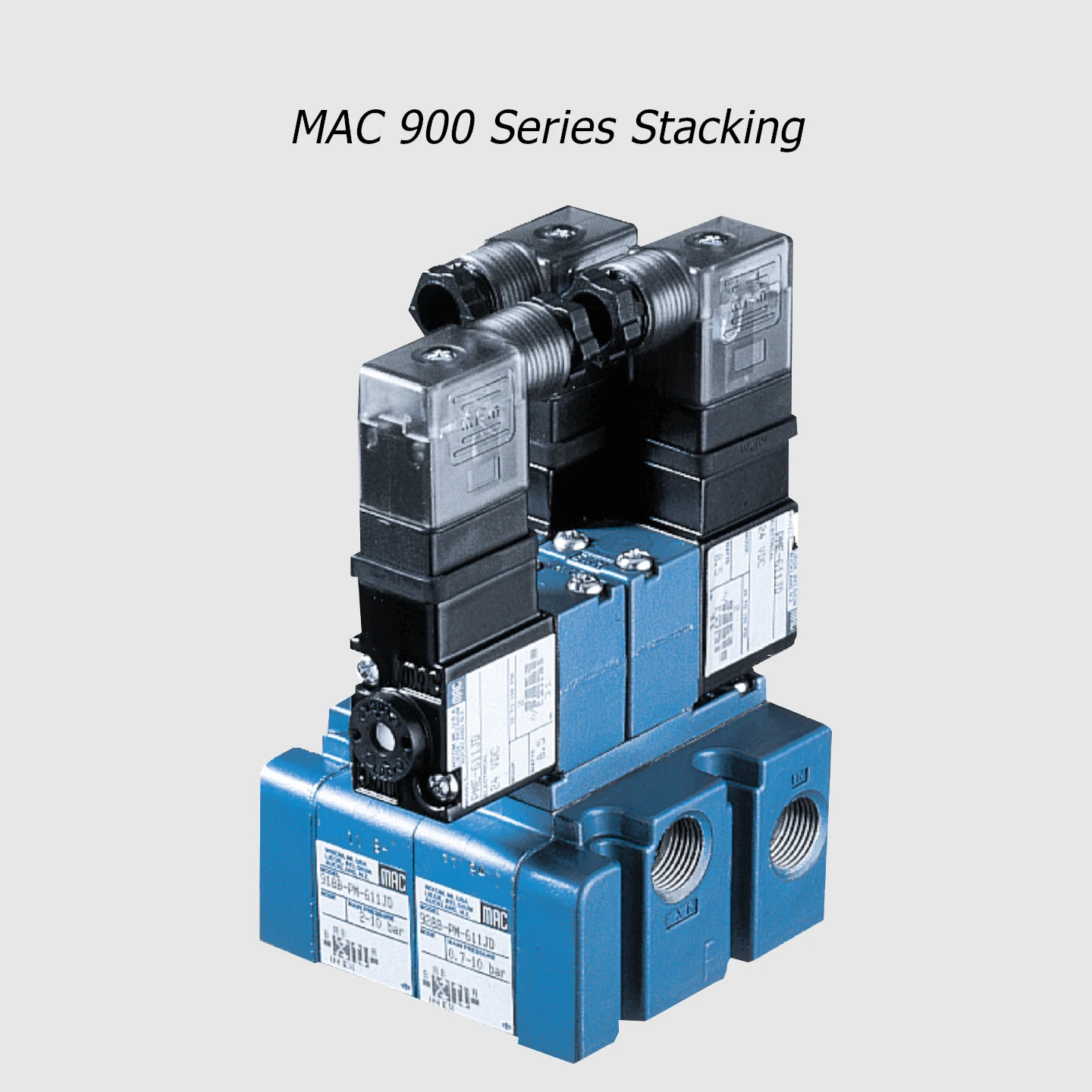

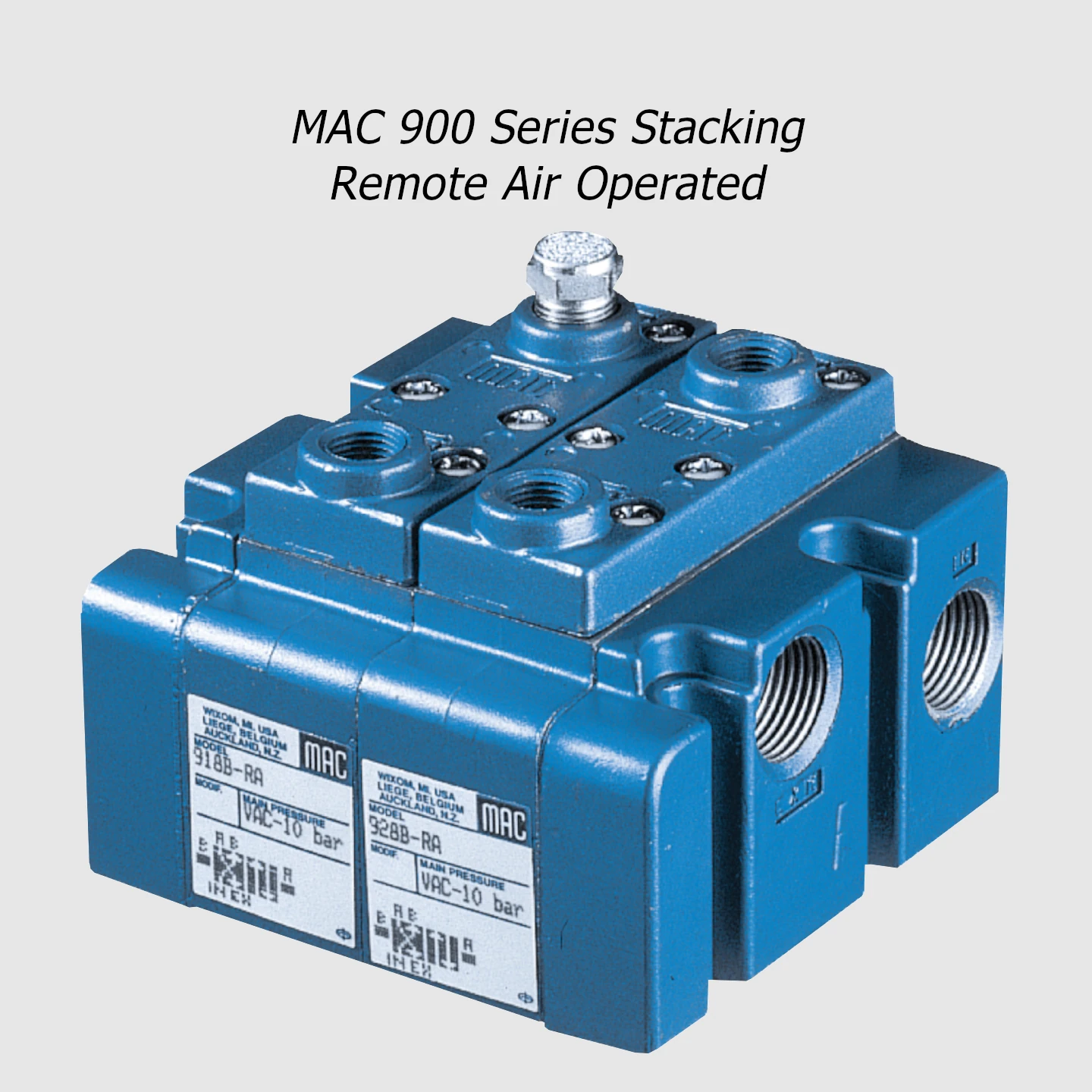

Configuraties: Indivdual, Stacking, Sub Base/Manifold

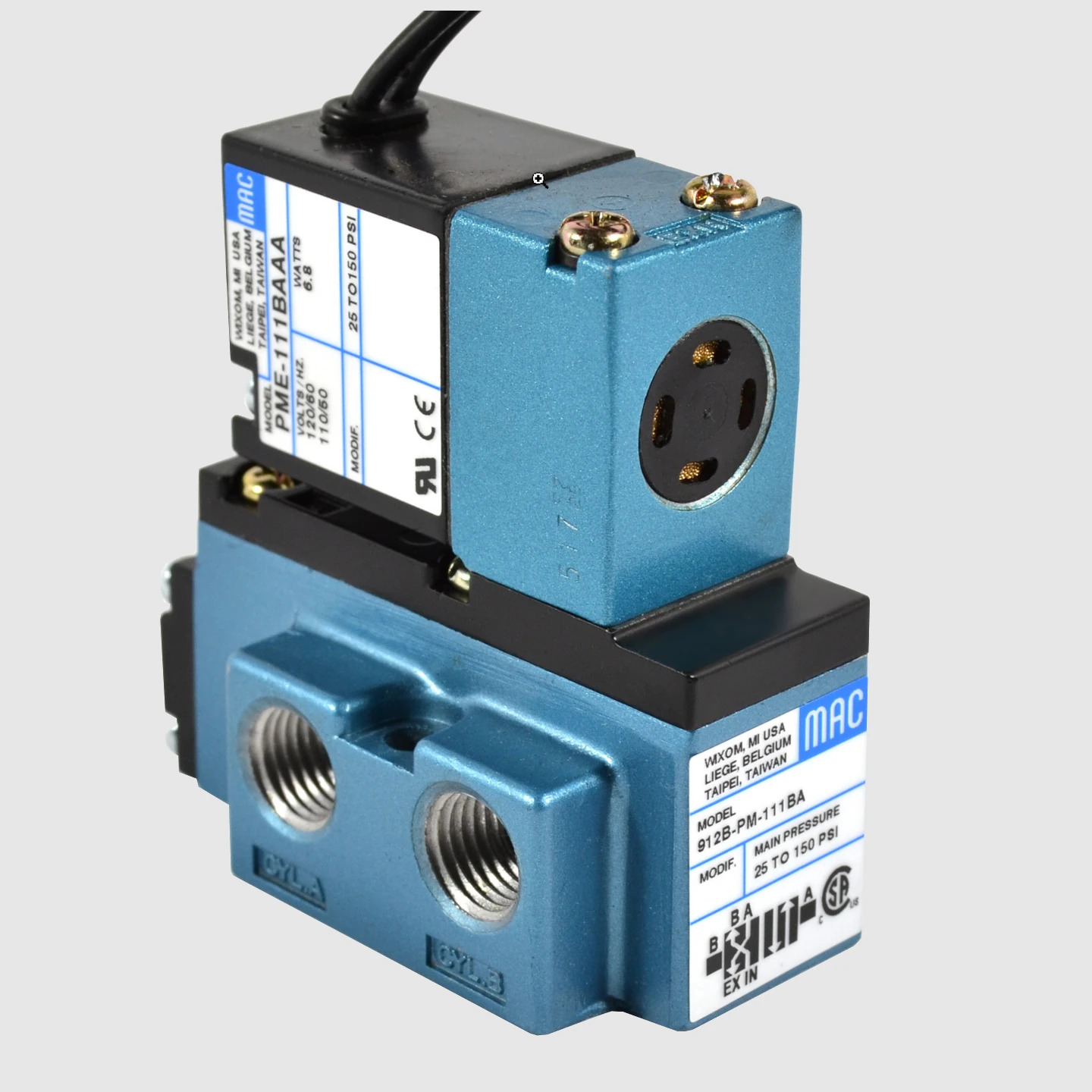

The MAC 900 Series is a versatile 4-way solenoid piloted spool valve.

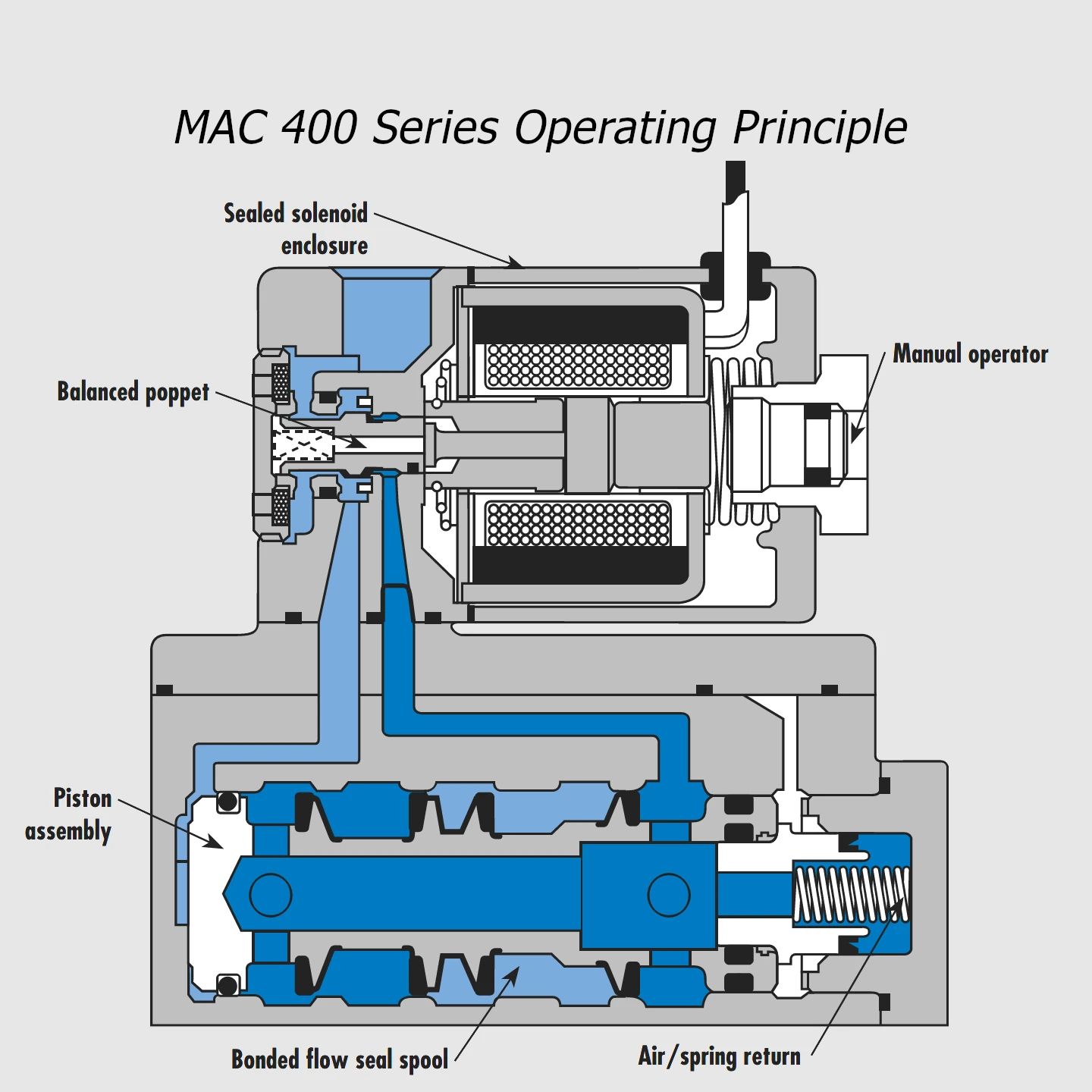

This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.  Versatility in piping means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications.  Our one piece bonded seal spool means longer life and easy maintenance.

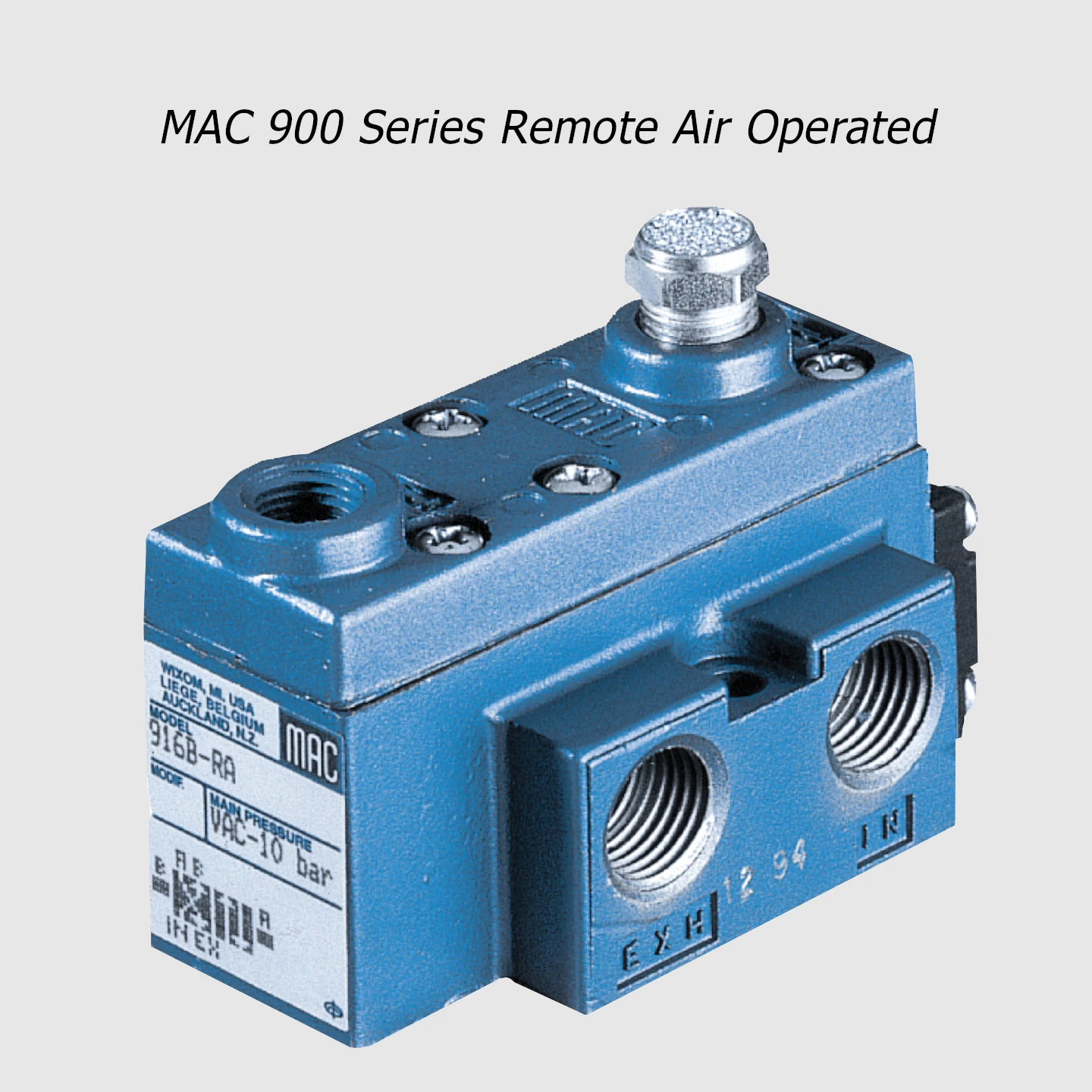

You can choose from inline or manifold versions, plug-in or non-plug-in, and there are options for integral adjustable exhaust flow controllers.
