MAC Valves BV214

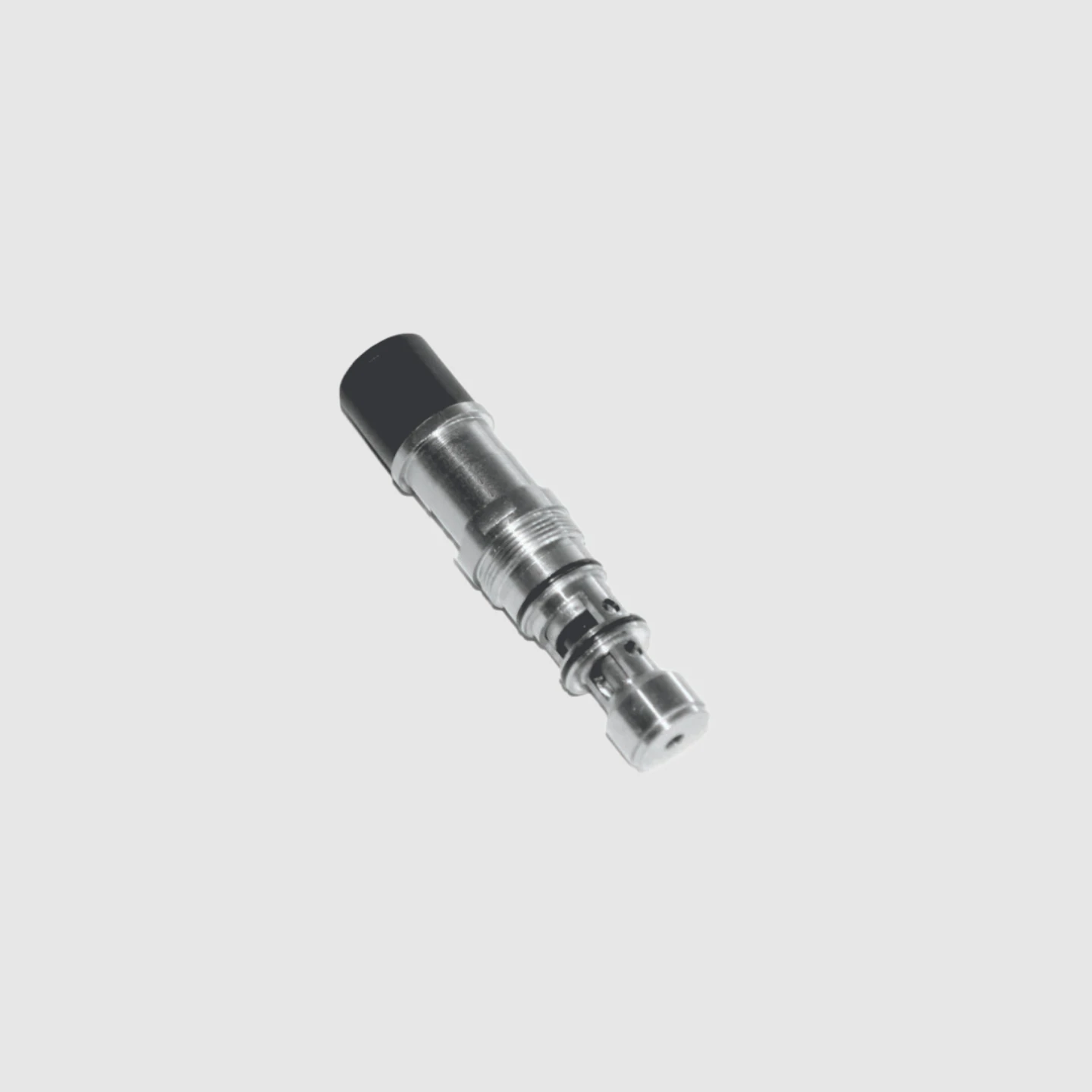

The Bullet Valve® (BV) product line represents yet another evolution in MAC’s valve technology. The Bullet Valve® product line features MAC’s patented Bullet™ technology. This “lifting” magnet configuration is unique in that the valve maintains a balanced design – a signature feature of a MAC valve. Bullet valve 214 is a compact and powerful 2-way Bullet Valve® in 14 mm cartridge design. This valve uses a unique lifting solenoid with integrated poppet/fixture, where the moving part is completely isolated from the pressurized air. The balanced design ensures high switching forces and consistent performance at varying inlet pressures.

The BV214 offers flow rates up to 260 Nl/min and is designed with minimal components, contributing to long life, easy maintenance and maximum reliability. The cartridge shape allows easy installation into manifold systems.

The BV214 is available in 12 V DC and 24 V DC, with low power consumption starting at 1.0 W. Ideal for applications where fast, precise air control in a compact size is required.
