Technical Data

Maximum stroke length: up to 3.4 m (134 inches)
Maximum speed: approx. 1.5 m/s (depending on load and pitch)
Load capacity:
Fz-max: up to 5745 N
My/Mz torque: up to 603 N·m
Mx torque: up to 115 N·m
Precision: Class 7 (±52 µm / 300 mm)
Temperature range: –4 °C to +54 °C
Protection rating: IP44
Material: anodized aluminum with stainless steel cover strip
Optional double carriage for increased load and moment capacity

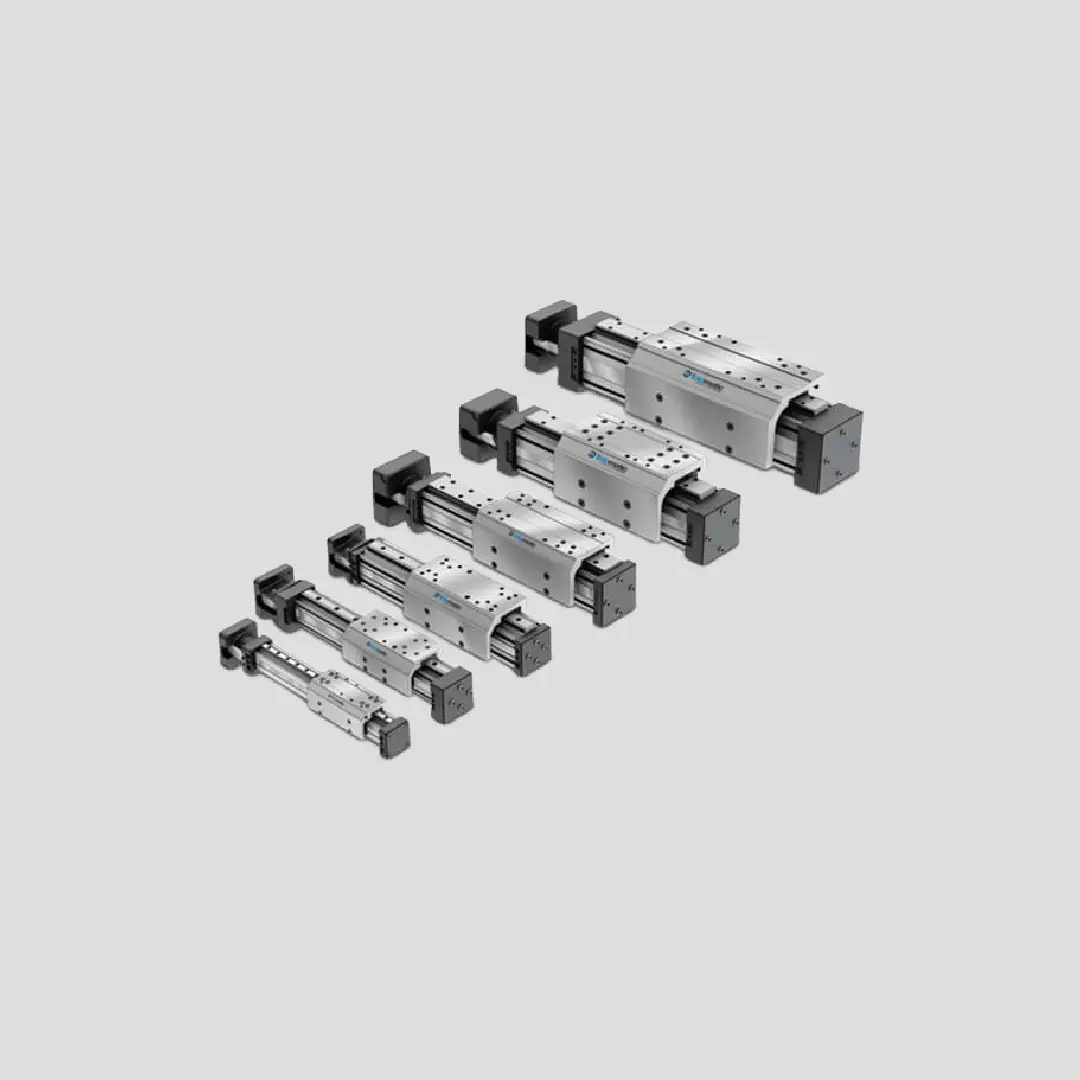

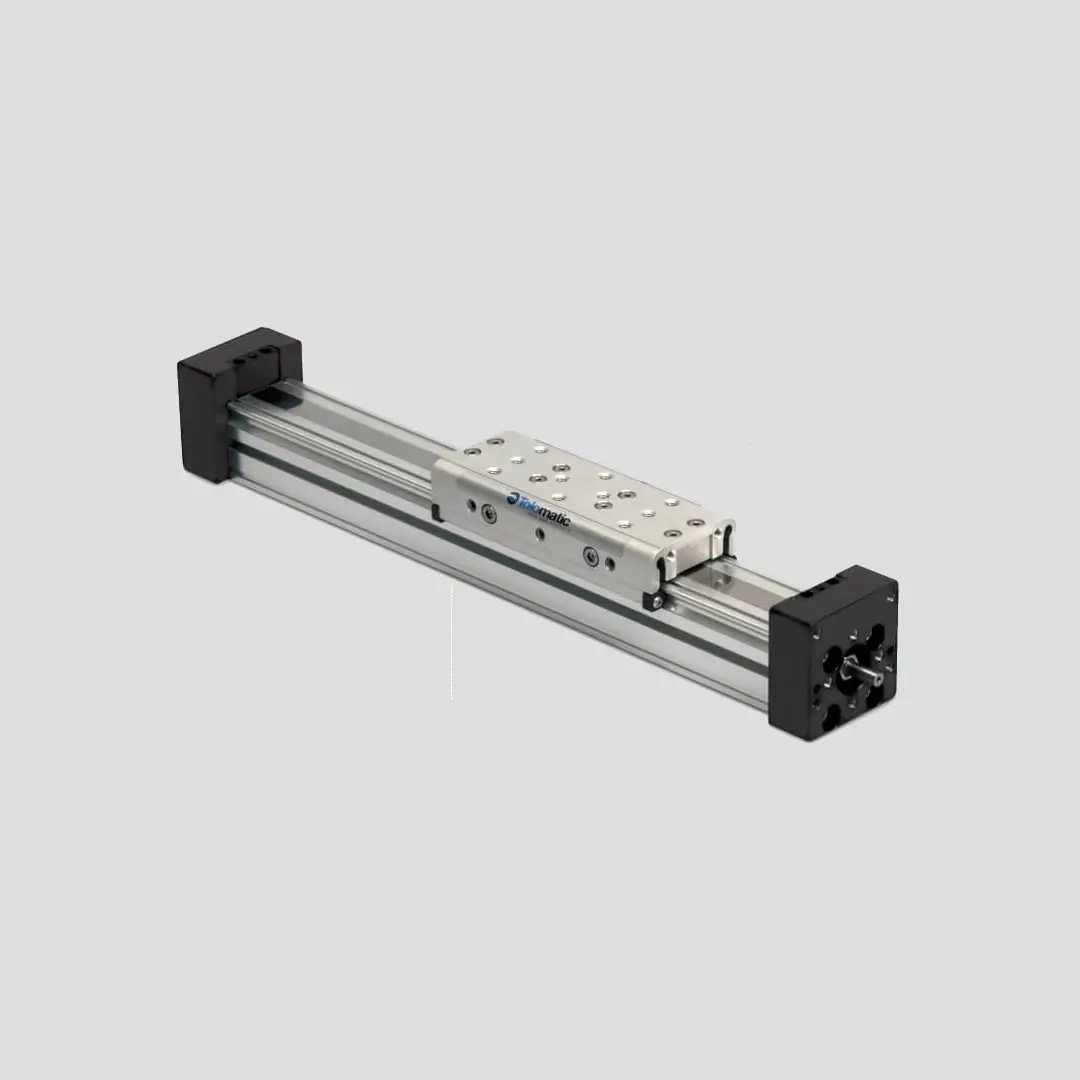

MXE-P series Linear Actuators

Tolomatic’s MXE-P linear actuator is a powerful and versatile screw-driven solution for applications requiring high rigidity, smooth motion, and consistent performance. Thanks to its integrated profile rail with recirculating ball bearings, this actuator delivers precise linear motion with minimal backlash, even under heavy loads. Its robust aluminum housing and modular design make the MXE-P ideal for use in automation systems, packaging lines, assembly processes, and pick-and-place applications.

Advantages

Integrated profile rail with recirculating ball bearings for high rigidity and low friction
Screw drive with a choice of ball nut (low backlash, high efficiency) or fixed nut (quiet, low maintenance)
High load capacity: axial forces up to 5745 N and torques up to 603 N·m
Anodized aluminum housing with stainless steel cover strip to protect against dust and contamination
Compact design with low carriage height and T-slots for easy mounting
Motor configurations: inline drive or reverse parallel drive (1:1 or 2:1 belt transmission)
