Technical Data

  • Bore size: 5/16″ to 3″
  • Cylinder type: Single-acting, double-acting, reverse-acting or spring-biased
  • Mounting: Universal, clevis, end stud, front block, stud, trunnion
  • Tube: 303 stainless steel
  • End caps: Aluminum
  • Piston rod: 304 stainless steel
  • Bushings: Bronze
  • Seals: Nitrile, FKM available
  • Max pressure: 17 bar
  • Rod type: Rotating, non-rotating or double-ended
  • Temperature range: -20°C to 110°C (up to 204°C with FKM)

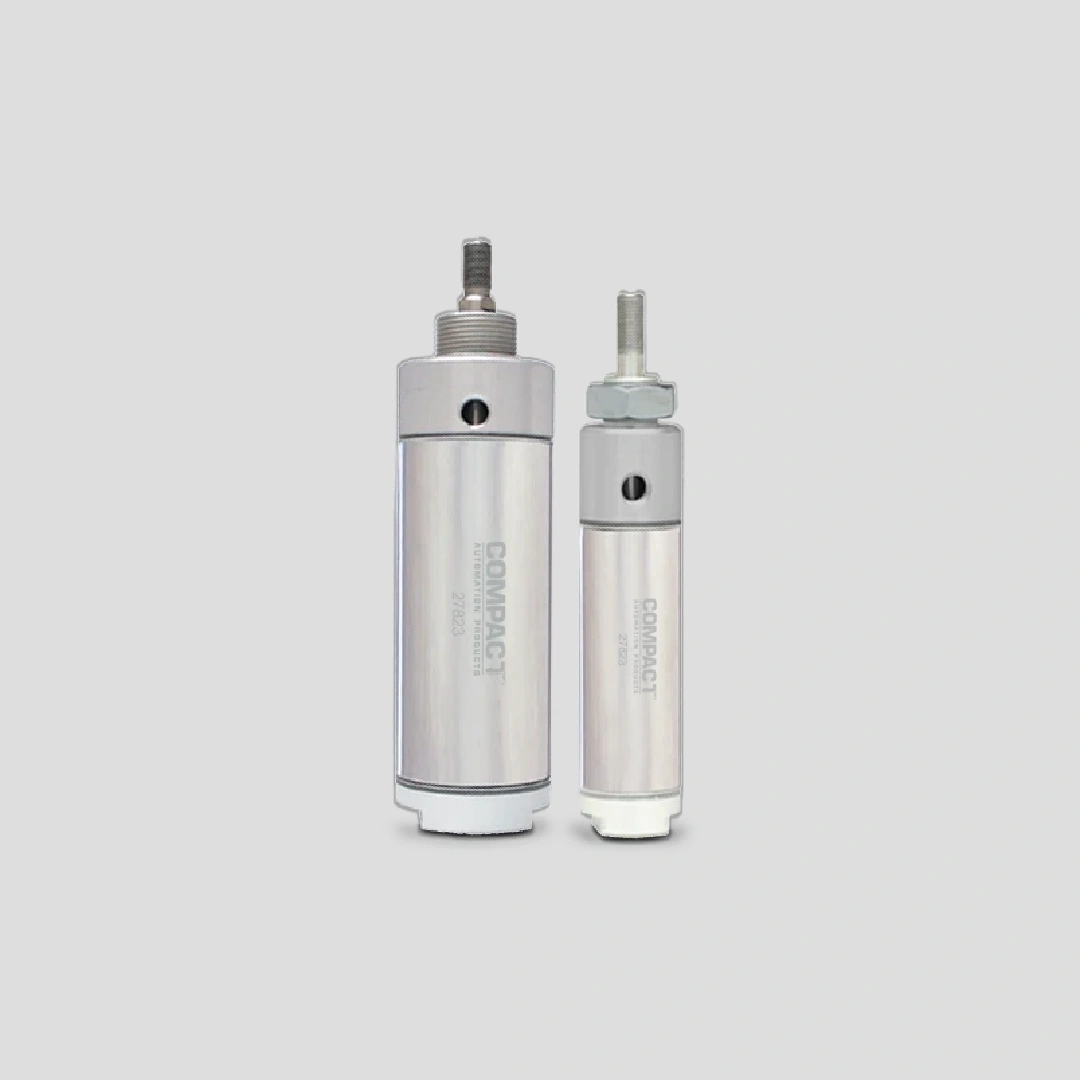

Round line stainless steel cylinders

Stainless steel cylinders are designed for industrial applications where corrosion resistance and reliable performance are required. The rolled body made of 303 stainless steel and the piston rod made of 304 stainless steel ensure durability in demanding conditions. The cylinders are available in various types and sizes for flexible use.

Advantages

  • 130+ configurable models for custom solutions
  • Interchangeable with other manufacturers for easy integration
  • Delivery within 2-5 days for quick deployment
  • Low breakaway forces and long life for efficient use
  • Magnetic piston and rod wipers available for precise positioning
  • Bumpers and adjustable cushions for protection and control
  • RoHS compliant for environmentally friendly use
