Technical Data

  • Bores: 19 mm, 25 mm, 29 mm and 35 mm (3/4″, 1″, 1-1/8″, 1-3/8″)
  • Stroke Range: 6 mm to 229 mm (depending on model and bore)
  • Pressure Range:
    • Standard: 1.4 to 10 bar (air)
    • With -X or -C option: 2.1 to 10 bar (air)
  • Temperature Range: -29°C to +82°C
  • Rod Diameters: 6 mm, 8 mm, 10 mm and 12 mm
  • Reservoir Pressure: 1.4 bar (recommended)
  • Mounting Options: foot mount, flange mount, thread mount and pivot mount
  • Options: magnetic piston, fluoroelastomer seals, crossover tube for tandem configuration

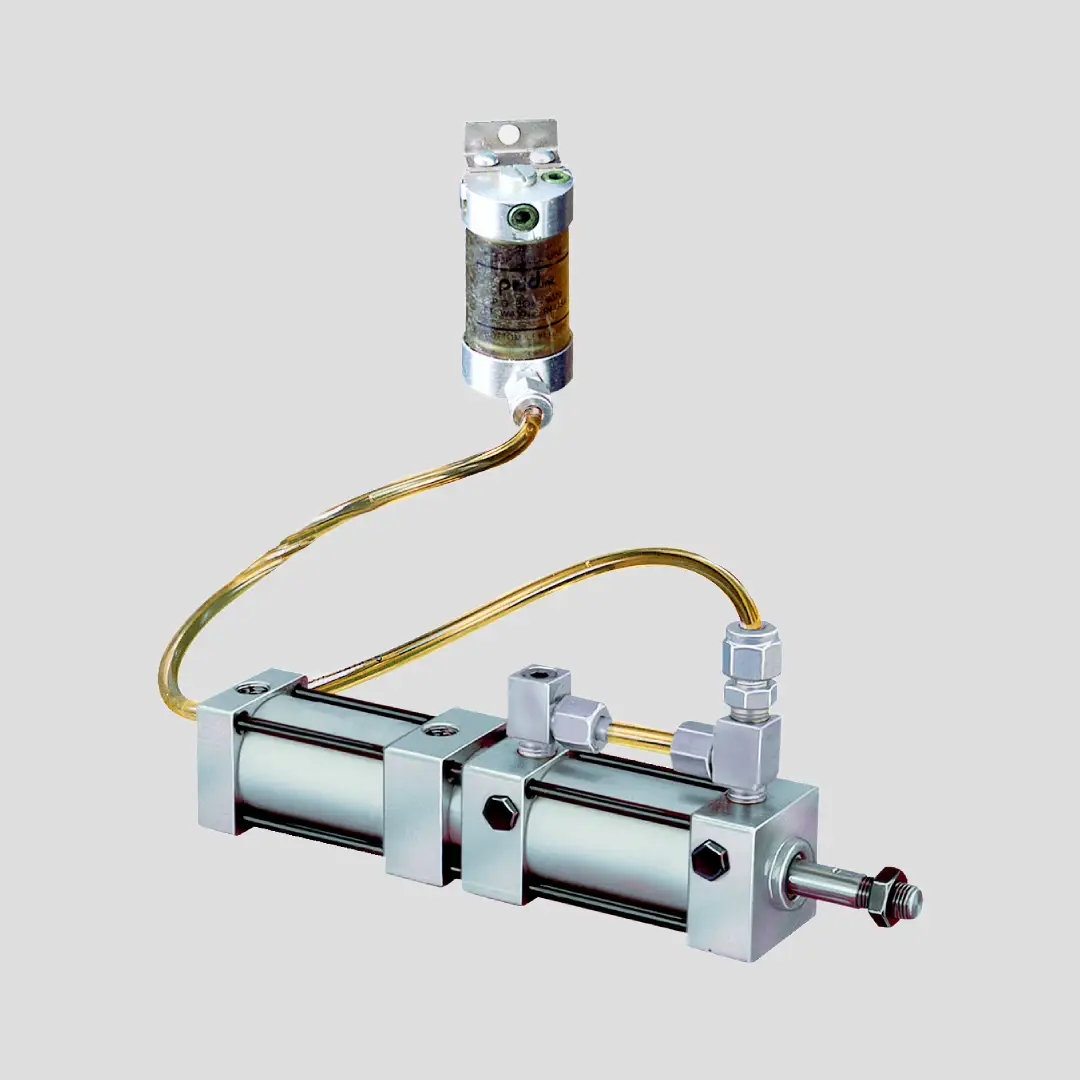

TD Series Air/Oil Tandem Cylinder

The TD series air-oil tandem cylinders provide precise speed control and smooth operation at low speeds thanks to the -C option. Designed for long life and low maintenance, these cylinders are NFPA repairable, ensuring long-term savings. With a wide range of mounting options and additional features such as magnetic pistons and fluoroelastomer seals, these cylinders adapt to various industrial applications. They are suitable for both pneumatic and hydraulic systems and offer easy installation.
