Technical Data

  • Nominal voltage: 60 V AC / 70 V DC
  • Maximum current: 4 A
  • Contact material: CuZn (gold-plated)
  • Protection rating: IP67 in accordance with EN 60529
  • Operating temperature: -25 °C to +90 °C
  • Housing: polyamide V0 (self-extinguishing)

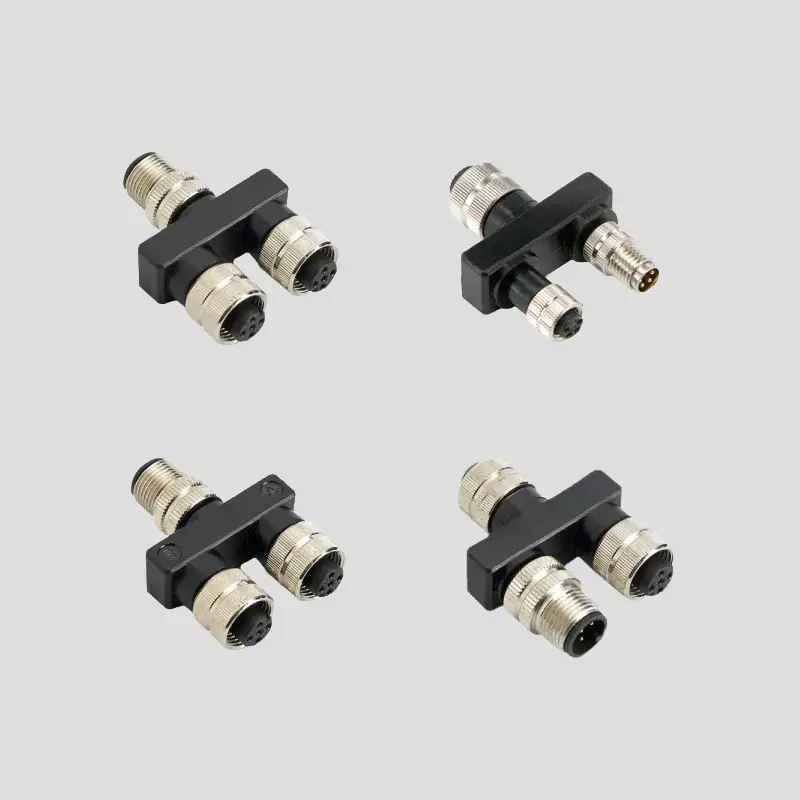

Y coupling M8/M12 connectors

Omal’s Y-series M8/M12 connectors offer a practical solution for splitting signals or power lines in automation applications. Thanks to their compact Y-shape, multiple devices can be easily connected in parallel. Save installation time and simplify cable management.

The housing is made of flame-retardant PA resin (V0) and the gold-plated CuZn contacts guarantee a stable and long-lasting connection. The connectors have an IP67 protection rating, making them highly resistant to moisture, dust, and temporary immersion.

Available models:

  • Y5MFF – Male to two female connections
  • Y5FMF – Female to two male connections
  • Y5MFFAB / Y4F8MF23 – special versions (on request)
