S400 EU

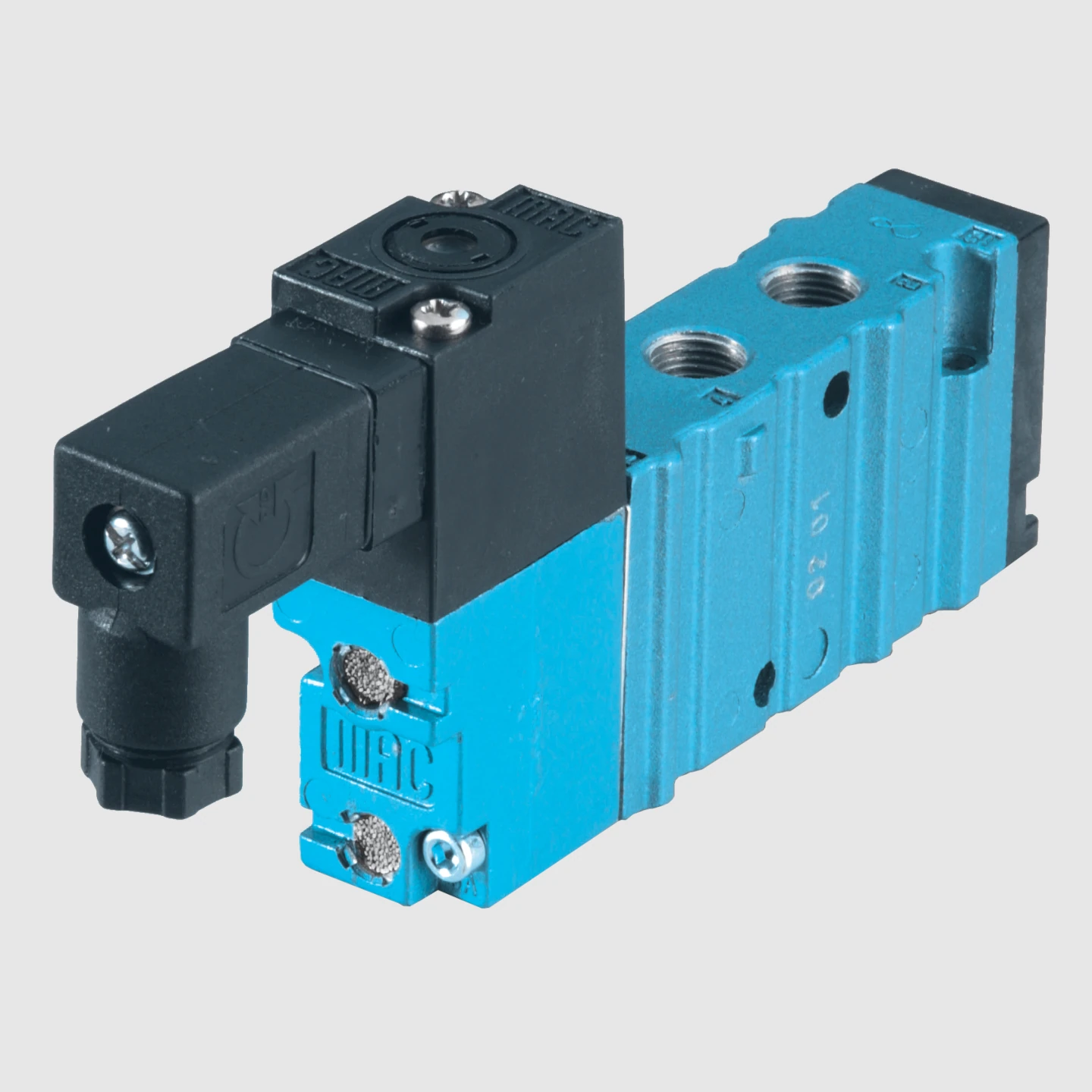

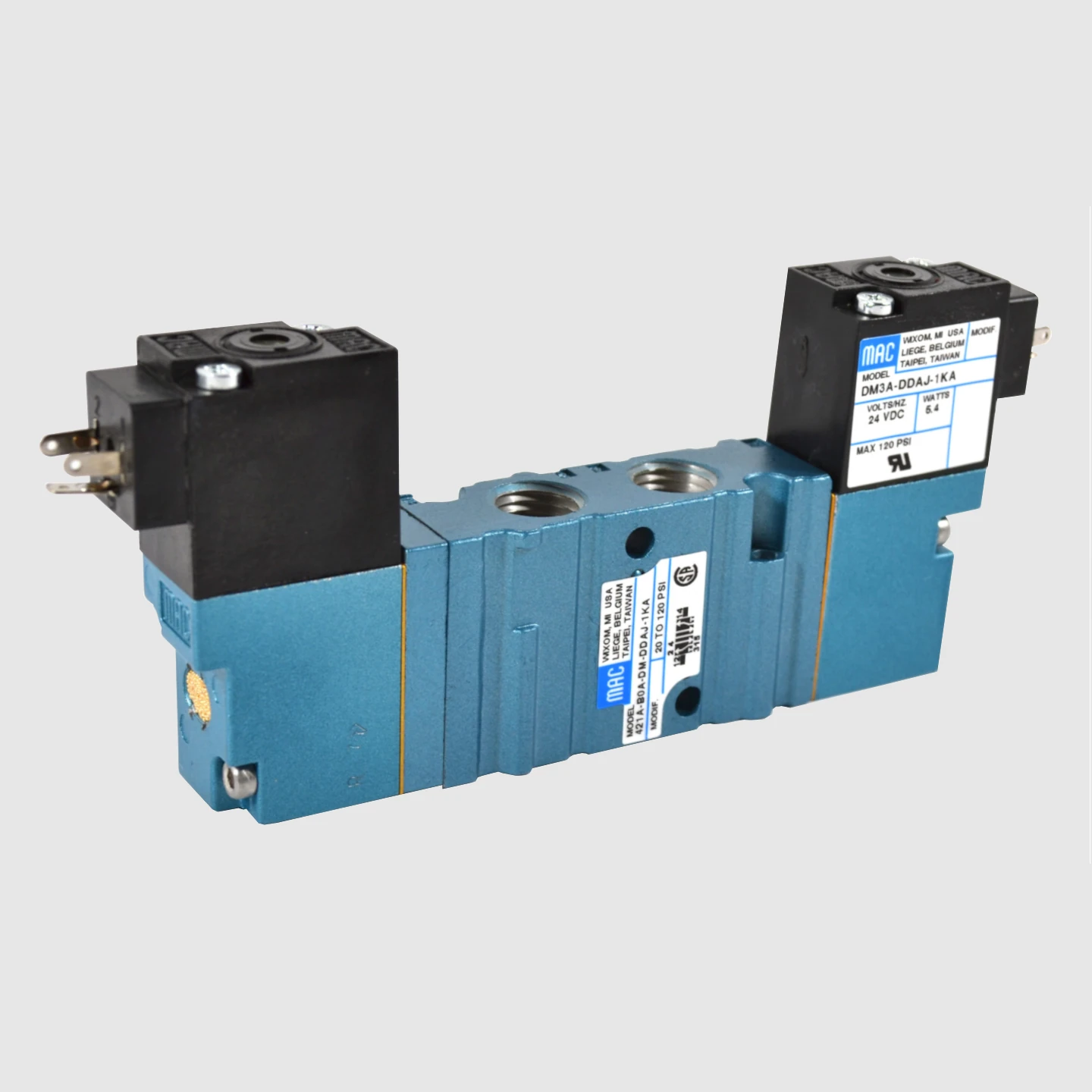

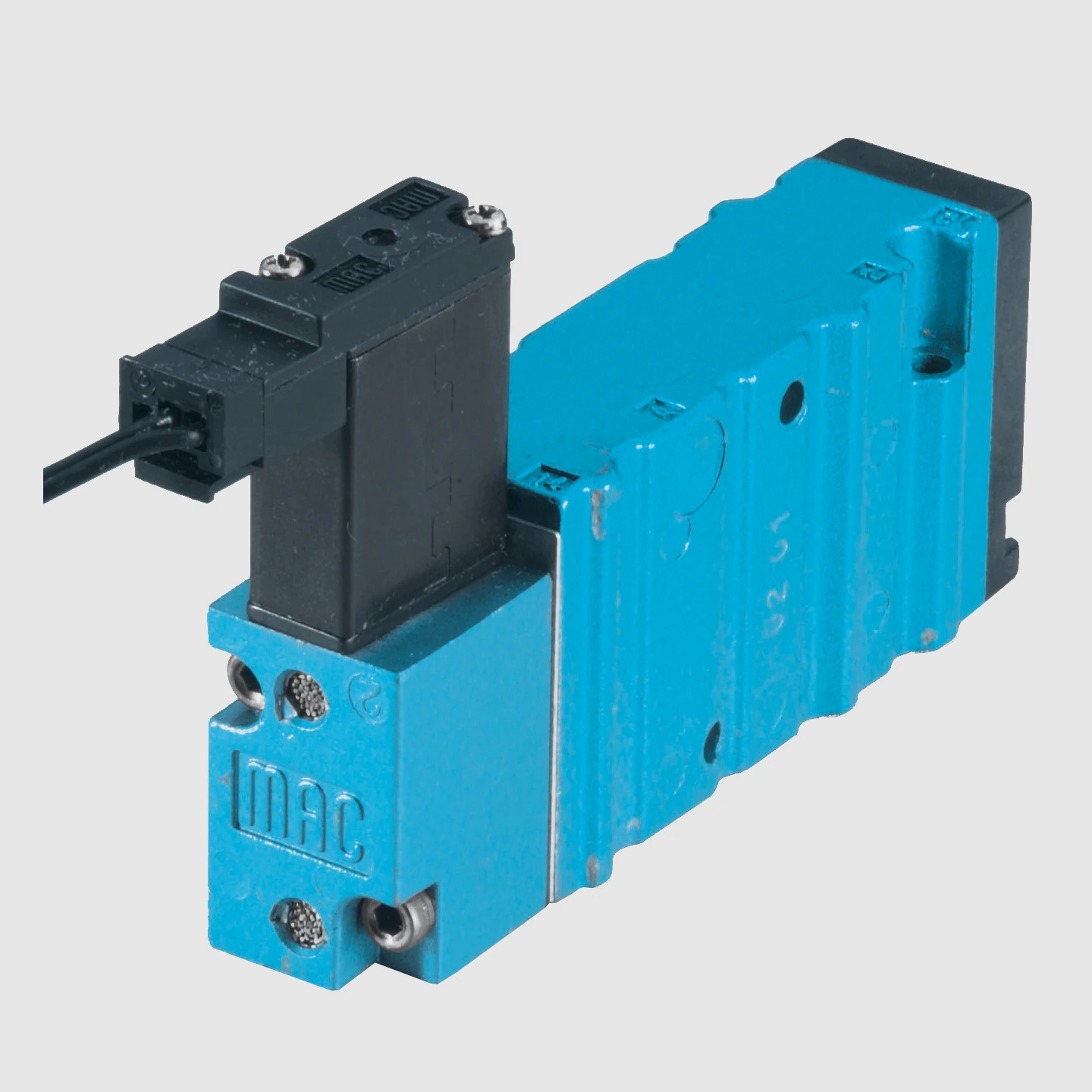

MAC 400 Series solenoid valve 5/2-5/3, 1/8”- 1/4”, 1100Nl/min

Function: 5/2, 5/3
Max. Flow: 1100 Nl/min
Port sizes: 1/4", 1/8"
Configuraties: Indivdual, Stacking, Sub Base/Manifold

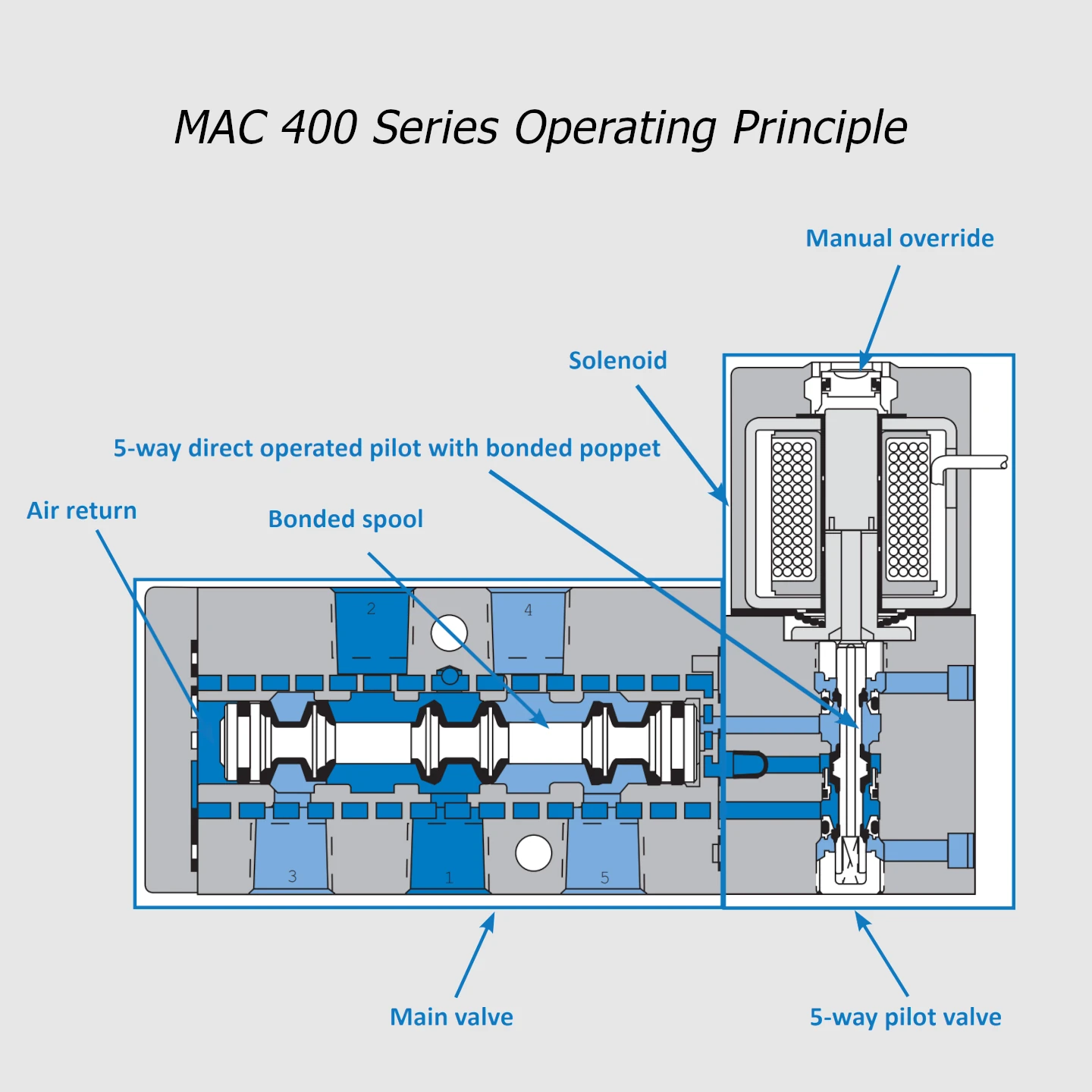

The MAC 400 Series is a 5-way spool valve pilot operated by a small direct operated 5-way solenoid valve.

The 4-way pilot means a low minimum operating pressure and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

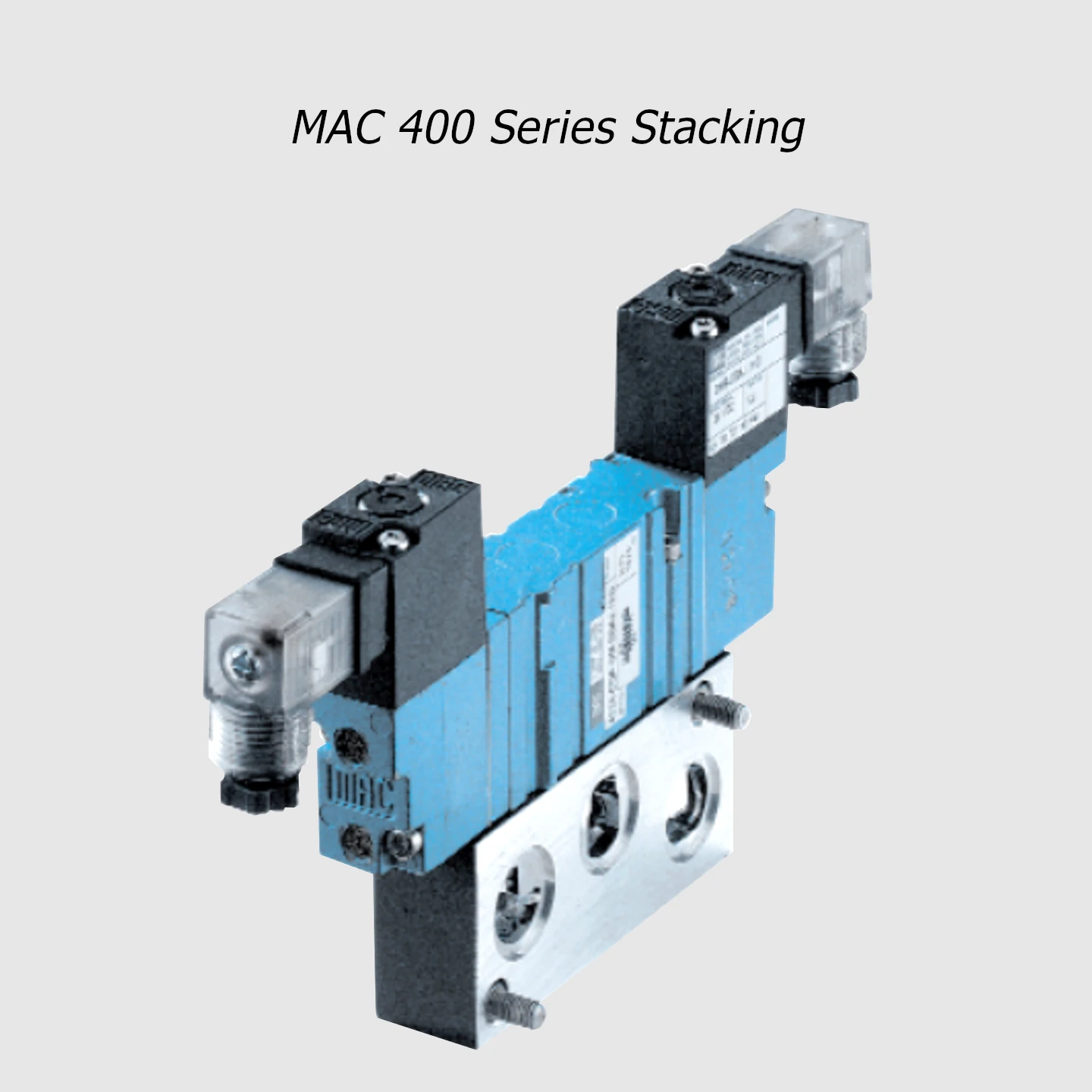

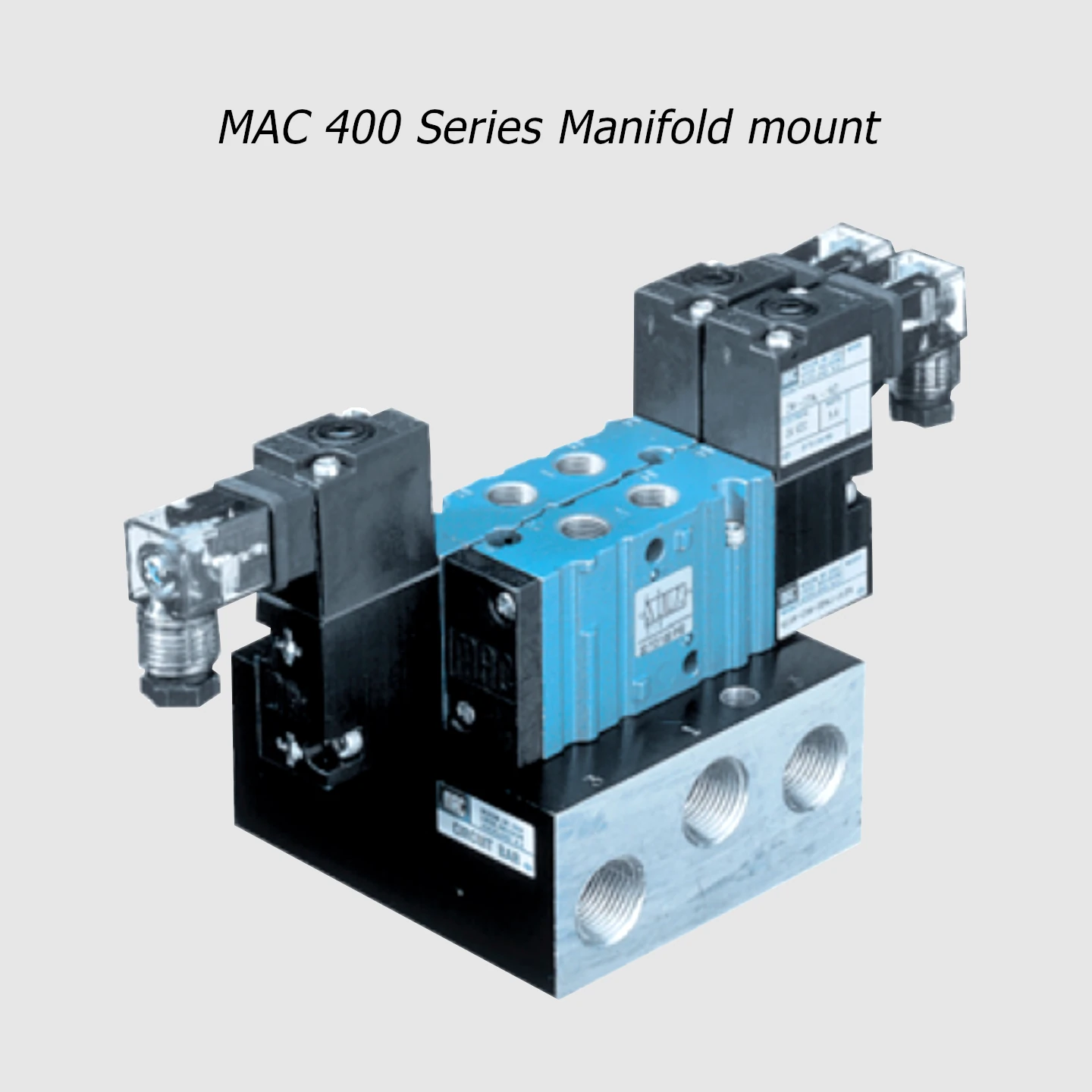

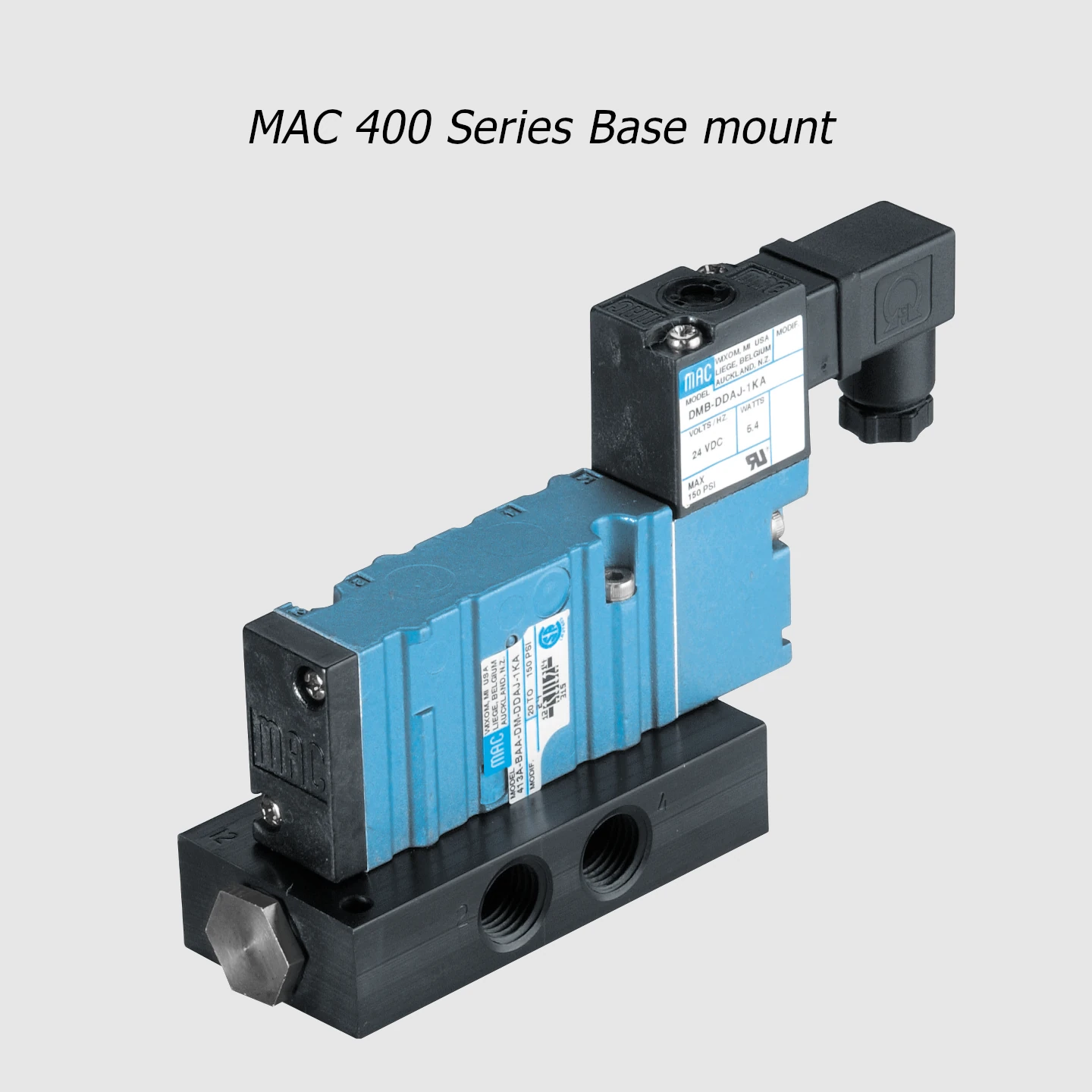

The 400 Series is available in different configurations such Individual, manifold mount or Stacking. Its low power consumption makes this valve particularly suitable for applications where space and efficiency are essential.
