M8 M-series round connectors

The M8 M-series round connectors are designed for reliable connections in industrial environments where precision and space saving are key. These connectors are perfect for sensor and actuator signals and machine interfaces where fast and secure locking is required.

The M8 series offers both straight and angled variants. With male or female connections and available with or without cable. They are made of flame-retardant polyamide resin (PA66 or PA V0) with gold-plated brass contacts (CuZn Au) for optimal conductivity and corrosion resistance.

The M8 Series at a glance:

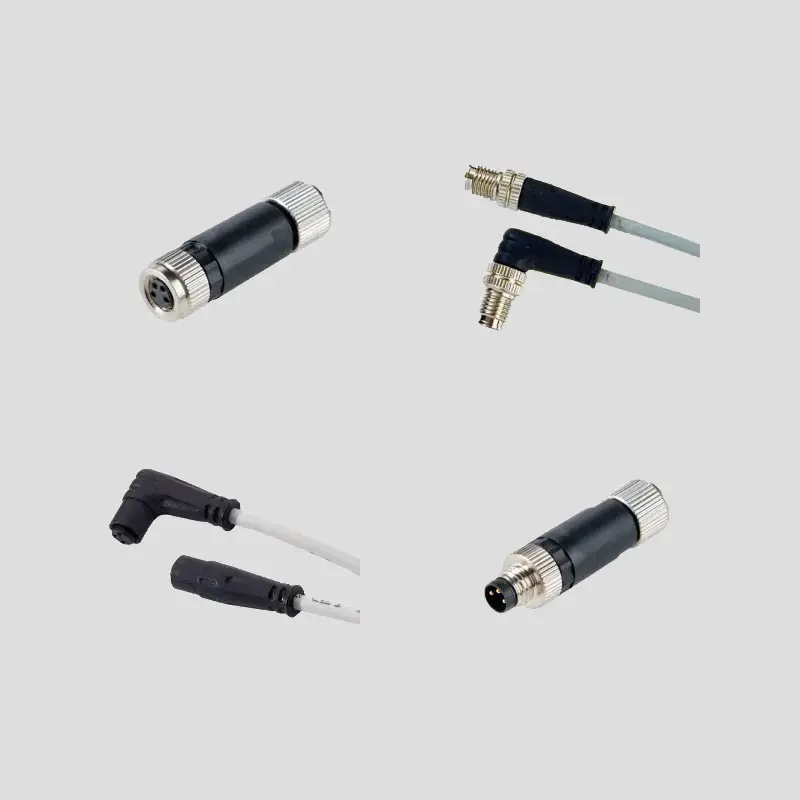

M8MD / M8MA – Male, straight or right-angled

M8FD / M8FA – Female, straight or right-angled

M8MC / M8FC – Compact version, straight

M8MR / M8SD / M8SA – Snap-in versions without screw ring

Ask LDA Belgium for your ideal configuration or customised version.
