Technical Data

Bore size: 1½” to 4″
Rod diameter: Standard or oversized (1″ or 1⅜”)
Mounting: Front flange, rear flange, angle mount, side lug mount, bottom tap mount, basic no mount, extended tie rod mount
Stroke length: Up to 4.00″ (standard tolerance: +/- 0.031″)
Cushioning: No cushion, both ends, cap end or head end
Port position: Standard positions 1 & 5, 2 & 6, 3 & 7, 4 & 8
Rod thread style: Male (style #1 or #2), female (style #3), blunt end (style #8), cone point (style #9)
Options: Enersorb piston, magnetic piston, cone point (45° or 60°), stainless steel rod, Viton seals, dual piston, rod extension, thread extension

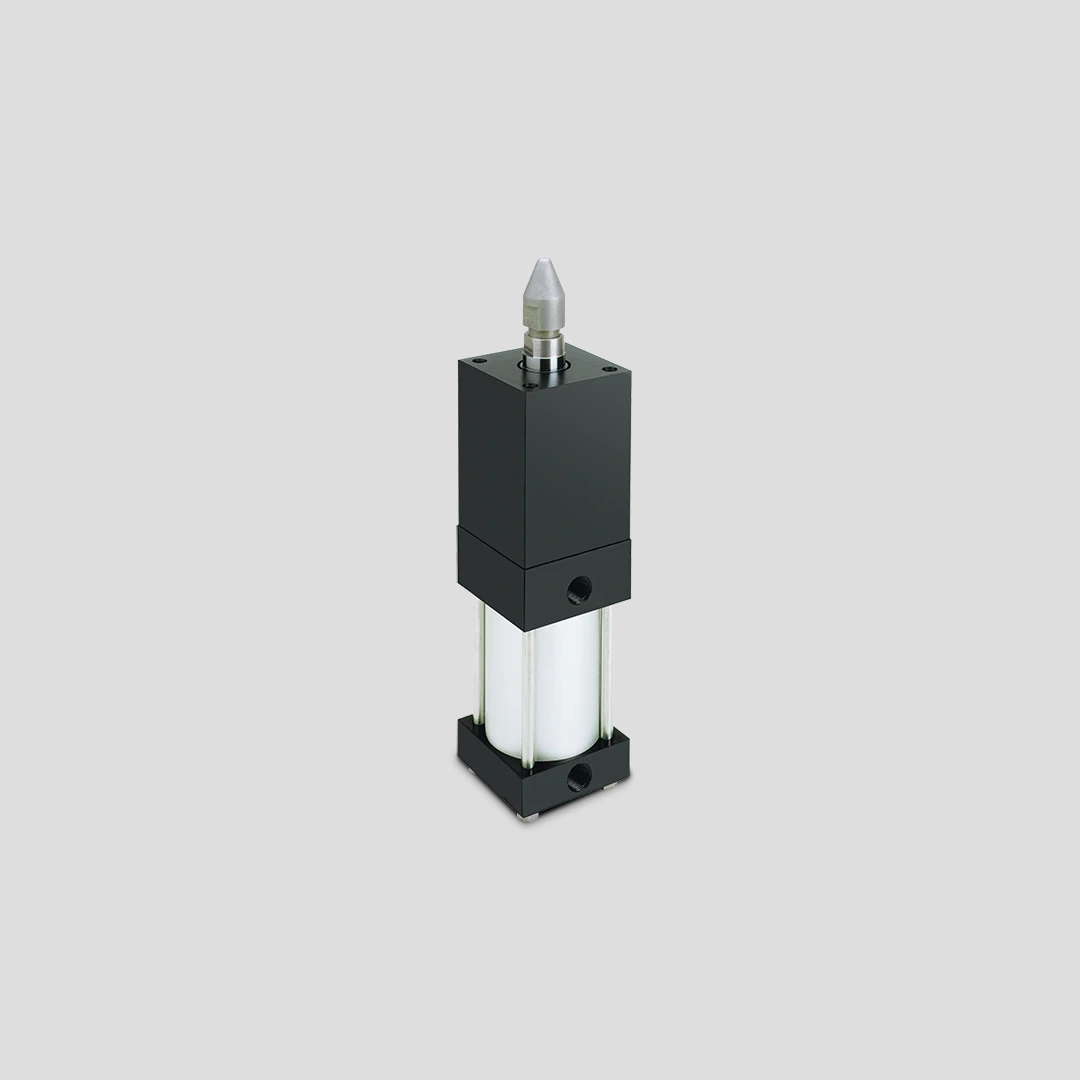

Pin-Act tie rod cylinders

Pin-Act cylinders are designed for applications where precision and reliability are crucial, such as in automation and positioning systems. These cylinders offer flexibility with various mounting options and piston rod configurations. They are available in multiple sizes and can be equipped with options like cushioning, magnetic pistons, and special point styles.
