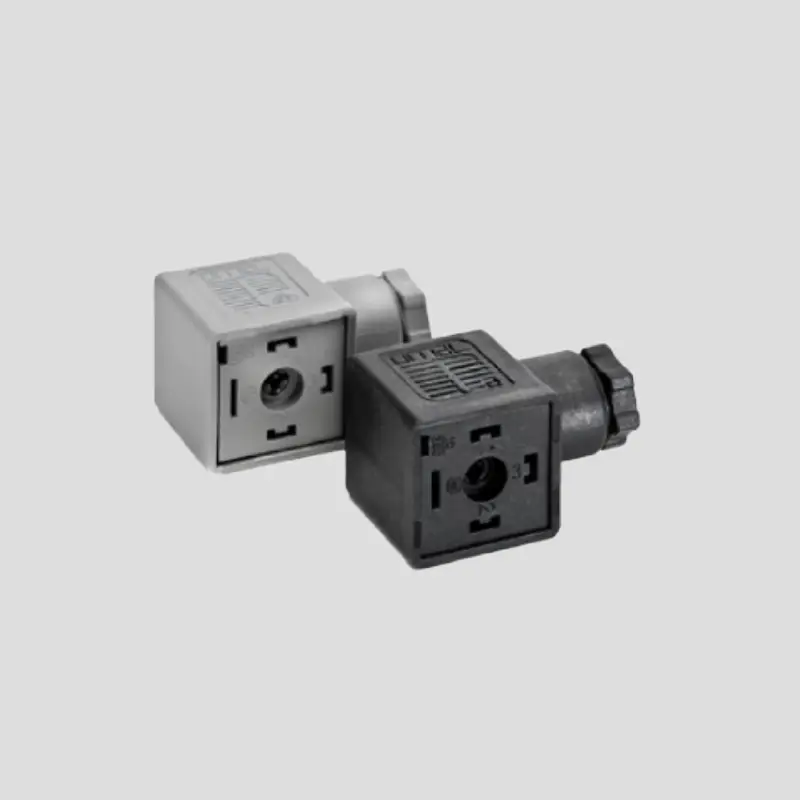

A1-A2 PG9 solenoid valve connector – DIN 43650

The OMAL A1-A2 PG9 is a field-wired DIN 43650 Form A connector. Designed for solenoid valves. The connector has a cable entry of PG9 and a pin separation of 18 mm. Housing and contact carriers are made of reinforced PA 66 plastic. A contact material of copper zinc with silver coating. It supports mains voltages up to 250 V AC or 300 V DC with up to 16 A rated current and a rated load of 10 A.

Thanks to IP65 protection according to EN 60529, the connector is dust-proof and splash-proof while insulation class C (VDE 0110) ensures safe operation at temperatures from -30 °C to +125 °C. The construction includes a unicodegasket and a central fastening screw, which allows for mounting without empty elements. Thanks to standard DIN specifications, the A1-A2 PG9 plug and play is compatible with virtually all industrial solenoid valves.

This connector is ideal for installation in industrial environments where electrical connection and environmental protection are essential. It combines rugged materials, standard size, safe electrical specifications and wide temperature range. The ideal basic element for field applications with solenoid valves.
