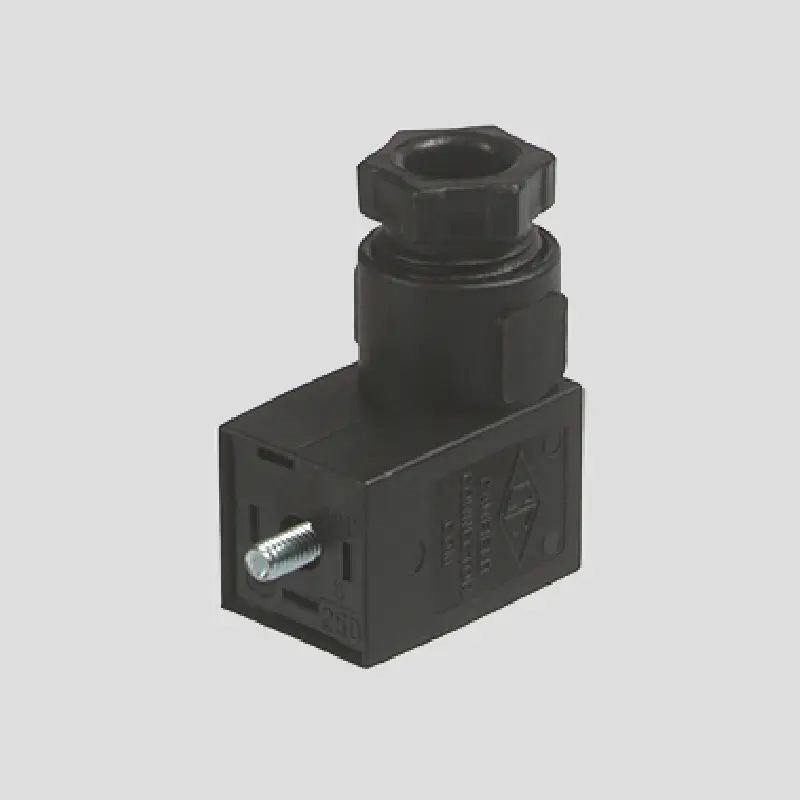

The Canfield 5000 Series MINI is a convenient connector that you use to connect electric valves and pressure switches. This connector is high quality and provides a good connection.
The connector has several options for the cable entry: PG9, 3/8 inch or 1/2 inch, all with screw terminals for the wires. You can connect wires from 0.240 to 0.410 inches in diameter and a maximum wire thickness of 14 AWG.
This connector is sturdy and can take a beating: it is protected against dust and water to NEMA 4 and IP65 standards, ensuring a long life without problems. It can handle up to 10 amps and operates in temperatures from -40°C to +125°C, making it suitable for most applications. You can choose from versions without a light or with a light, matching the industry standard
