Technical Data

Spacing: 18 mm
Connector: TPV
Contact material: CuZn (Ag)
Max voltage: 250 V AC/300 V DC
Max current: 16 A
Operating current: 10 A
Protection class: IP65 EN 60529 (DIN 40050)
Insulation class: C – VDE 0110
Working temperature: -30°C / +125°C

A serie solenoid valve connectors

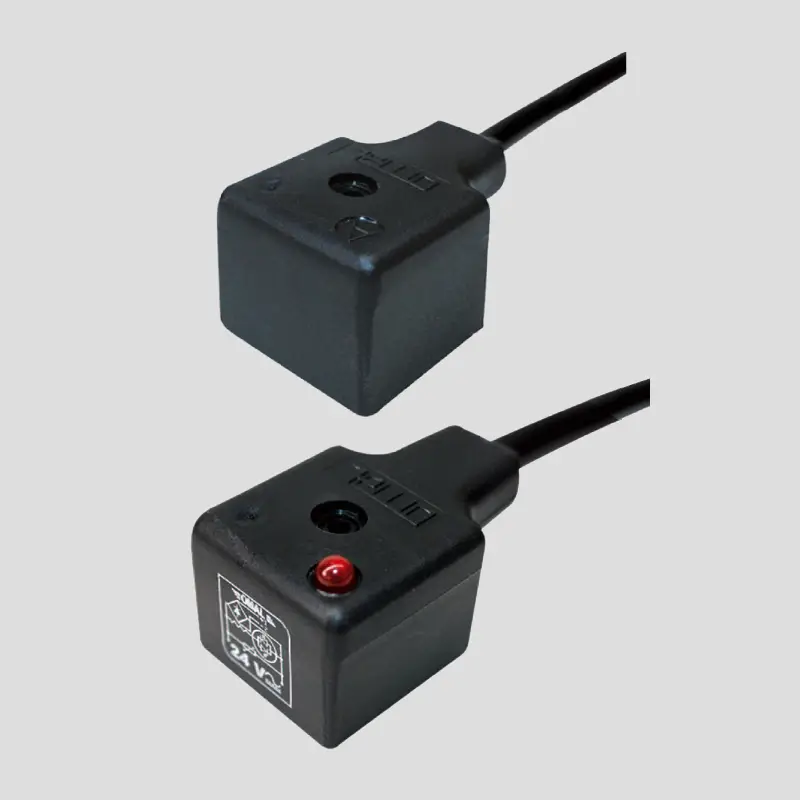

The A-series magnetic connectors with molded cable feature an integrated seal and are suitable for applications requiring protection against dust and moisture. Available in 2- or 3-pole versions plus ground, in accordance with EN 175301-803 form A (DIN 43650).

These A-series magnetic connectors are constructed from a TPV housing with contacts in silver-plated or gold-plated brass (CuZn Ag/Au). Thanks to the IP65 protection rating according to EN 60529. The maximum current is 16 A, with a nominal value of 10 A at voltages up to 250 V AC or 300 V DC. They have a standard connection distance of 18 mm.

The standard version operates between -30 °C and +125 °C. The version with components for electronic protection or signaling is tailored to the selected circuit and can be used up to +125 °C.
